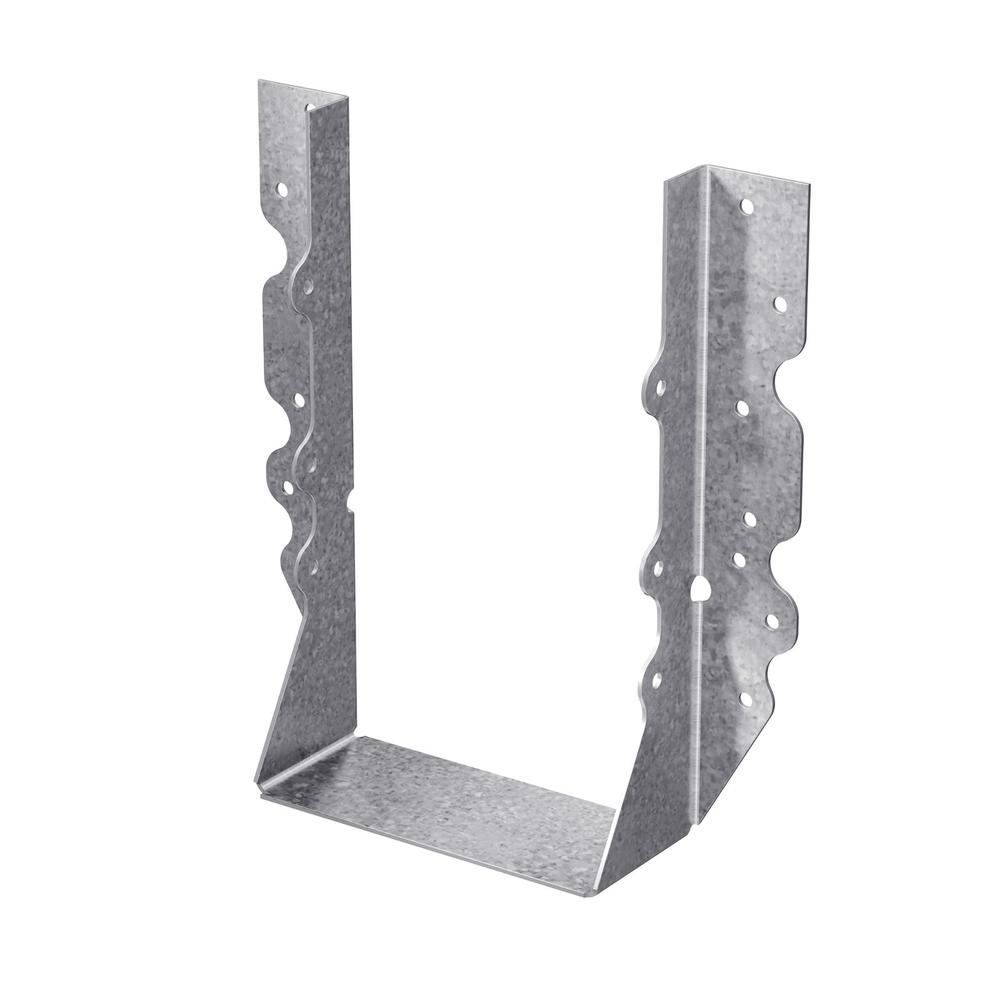

The Simpson 6x10 Face-Mount Joist Hanger is a precision-formed steel connector built for joist-to-header installation in wood-framed construction. Engineered by Simpson, this face-mount hanger delivers dependable structural support across a wide range of lumber types, making it a reliable choice for residential and commercial framing projects where consistent fit and connection integrity matter.

Key Features

• Face-mount design for joist-to-header connections - attaches directly to the face of a header or beam, allowing secure joist support from below without the need for complex hardware or extra components
• Precision-formed from 16-gauge steel - ensures a consistent, accurate fit during installation, reducing adjustment time on the job and maintaining reliable structural integrity at every connection point
• Zinc Galvanized, G90 coating - provides corrosion resistance suited to typical wood-framed construction environments, helping the hanger hold up over the long term
• Broad lumber compatibility - approved for solid sawn lumber, rough lumber, I-joists, glulam beams, and structural composite lumber, giving builders flexibility across a wide variety of framing applications
• Supports multiple species groups - rated for Douglas Fir, Southern Pine, Spruce-Pine-Fir, and Hem-Fir framing, so the same hanger works across the lumber species most commonly used in framing
• Made in the United States - produced domestically to consistent quality standards, supporting confidence in material sourcing and product reliability

Why This Product

• One hanger, many framing scenarios - compatibility with solid sawn lumber, rough lumber, engineered wood products, and multiple wood species means fewer SKUs to manage and a single connector that adapts to different job site conditions
• Engineered specifically for face-mount joist applications - the U610 is purpose-built for joist-to-header connections rather than adapted from a general-purpose bracket, which means the geometry and load path are optimized for this specific installation type
• Corrosion-resistant coating built into the product - the G90 zinc galvanized finish is not an add-on option but a standard feature, so every unit is ready for installation in typical wood-framed environments without any additional treatment
• Domestic manufacturing with consistent quality - produced in the United States by Simpson, a brand with a long-standing reputation in structural connectors, providing builders and inspectors a familiar, trusted component on the framing checklist

Specifications

• Model No.: U610
• Gauge: 16
• Width (W): 5-1/2 in.
• Height (H): 8-1/2 in.
• Seat Depth (B): 2 in.
• Coating/Material: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Joist-to-header connections in wood-framed construction
• Solid sawn lumber framing (Douglas Fir/Southern Pine and Spruce-Pine-Fir/Hem-Fir)
• Rough lumber framing (DF / SP / SPF / HF)
• Engineered wood products including I-joists, glulam beams, and structural composite lumber (SCL)

Options

• Contact us for Configurable Options and Special orders
• Refer to technical bulletin for ease of ordering a Custom U hanger

Load Tables / Values / Installation

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
• Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
• Face-Mount Hangers - I-Joists, Glulam and SCL Tables

Frequently Asked Questions

What type of installation is the U610 designed for?

The U610 is a face-mount joist hanger engineered specifically for joist-to-header installation in wood-framed construction. Its face-mount design allows it to attach directly to the face of a header or beam to support the joist from below.

What is the gauge and coating of the U610?

The U610 is precision-formed from 16-gauge steel and features a Zinc Galvanized, G90 coating, which provides corrosion resistance suitable for typical wood-framed construction environments.

What are the dimensions of the U610 joist hanger?

The U610 has a width (W) of 5-1/2 inches, a height (H) of 8-1/2 inches, and a seat depth (B) of 2 inches, making it appropriately sized for 6x10 lumber applications.

Is the U610 compatible with engineered wood products such as I-joists or glulam?

Yes. The U610 can be used with a variety of wood products including solid sawn lumber, rough lumber, I-joists, glulam beams, and structural composite lumber (SCL). Refer to the load tables in the Downloads and Resources section for specific allowable load values by lumber type.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
• Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
• Face-Mount Hangers - I-Joists, Glulam and SCL Tables

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
