Product Description

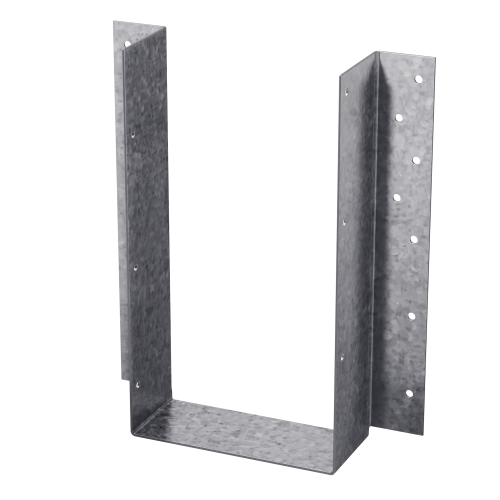

The Simpson U2.1/4 Face-Mount Joist Hanger from Simpson is a precision-formed, galvanized connector built for reliable joist-to-header connections in wood-framed construction. Its face-mount design attaches directly to the face of the header, providing a secure and efficient way to support joists while keeping installation straightforward for framers and contractors working across a wide range of structural applications.
Key Features
- Face-mount design - attaches directly to the header face for a clean, efficient installation that reduces layout time on the job site
- Precision-formed from 16-gauge steel - delivers a consistent, tight fit at every connection point, supporting structural integrity throughout the framed assembly
- G90 zinc galvanized coating - provides a durable protective layer against corrosion, making this hanger a dependable choice in framing environments where moisture exposure is a concern
- Compatible with multiple lumber types - load tables cover solid sawn lumber, rough lumber, I-joists, glulam, and SCL, giving builders flexibility across different framing systems without switching hardware
- Made in the United States - produced domestically to consistent manufacturing standards for quality you can count on from one hanger to the next
Why This Product
- Versatile across lumber types - with load values published for solid sawn, rough lumber, I-joists, glulam, and SCL, this face-mount hanger works across a broad range of wood-framed assemblies without requiring separate hardware for each application
- Built for lasting performance - the G90 zinc galvanized coating guards against corrosion in conditions where moisture can compromise unprotected connectors, helping the connection hold its integrity over the life of the structure
- Consistent fit, job after job - precision forming from 16-gauge steel means the hanger seats predictably every time, reducing fitment issues and keeping framing work moving efficiently
- Backed by a trusted brand - Simpson is a well-established name in structural connectors, and the U2.1/4 reflects the engineering standards that contractors and builders rely on for joist hanger applications in residential and light commercial framing
Specifications
- Model: U2.1/4
- Gauge: 16
- Width (W): 2-1/8 in.
- Height (H): 3-1/2 in.
- Base (B): 2 in.
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Note: Product dimensions and/or Nail or Screw holes may differ from picture.
Frequently Asked Questions
What type of construction is the Simpson U2.1/4 designed for?
The U2.1/4 is designed for joist-to-header installation in wood-framed construction. It functions as a face-mount hanger, attaching directly to the face of the header to support the joist from below.
What gauge steel is used in the U2.1/4 hanger?
The U2.1/4 is precision-formed from 16-gauge steel, providing a strong and consistent connection while maintaining ease of installation.
What coating does the U2.1/4 have, and why does it matter?
The U2.1/4 features a G90 zinc galvanized coating, which provides a protective layer against corrosion - an important consideration in framing applications where moisture exposure is possible.
Where can I find load values and installation tables for the U2.1/4?
Load tables and installation values are available for multiple lumber types, including solid sawn lumber (DF/SP and SPF/HF), rough lumber (DF/SP/SPF/HF), and engineered lumber such as I-Joists, Glulam, and SCL. See the Downloads and Resources section below for direct links to each table.
