Product Description

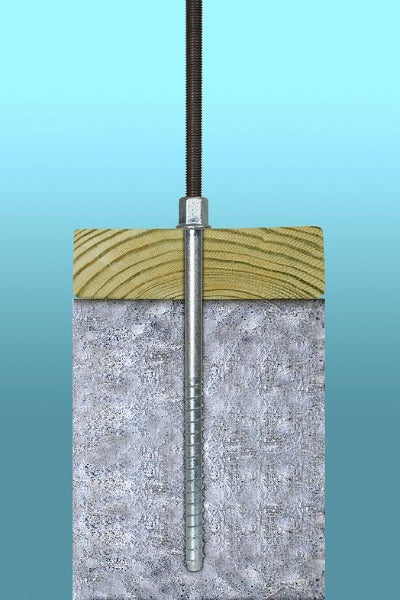

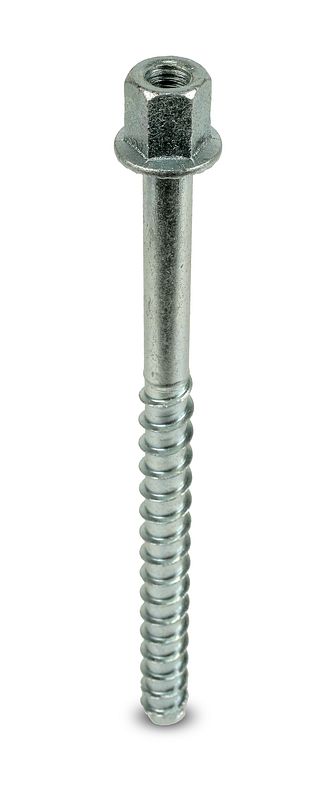

The Simpson Titen HD 1/2 in. x 9-3/4 in. Rod Coupler is a heavy-duty screw anchor engineered by Simpson Strong-Tie for use in single and multi-story rod tiedown systems. It provides a fast, reliable method for attaching threaded rod to a concrete stem wall or thickened slab footing, and unlike adhesive anchors, it requires no cure time, no secondary setting process, and no special installation tools - simply drill a hole and drive the anchor into place.
Key Features
- Code listed in ESR-2713 for wind and seismic loading - gives contractors confidence that this anchor meets recognized building code requirements for lateral force resistance applications.
- Serrated cutting teeth and patented thread design - enable fast, straightforward installation so crews spend less time on each anchor and move efficiently through the job.
- Reduced installation time - translates directly to a lower installed cost per anchor, improving overall project economics without sacrificing performance.
- Specialized heat-treating process - creates tip hardness to facilitate cutting through concrete while keeping the body ductile, balancing durability with reliable mechanical performance.
- No special setting tools required - the rod coupler installs with a regular or hammer drill, ANSI size bits, and standard sockets, so no additional equipment purchases or rentals are needed.
- Zinc-plated carbon steel construction - provides a consistent, factory-applied finish suited for dry interior environments, maintaining the anchor's integrity throughout its service life.
Why This Product
- Faster installation than adhesive anchors - with no cure time or secondary setting process involved, the Titen HD rod coupler lets crews drill, drive, and move on immediately, keeping tiedown system installations on schedule.
- Built for code-compliant structural applications - its ESR-2713 listing for wind and seismic loading makes it a dependable choice for projects in regions with strict lateral force requirements, removing guesswork from the approval process.
- Engineered tip hardness with a ductile body - the heat-treating process is purpose-designed for concrete anchoring, so the cutting tip performs consistently in the substrate while the body absorbs structural loads without brittleness.
- Works with standard jobsite tools - compatibility with regular or hammer drills, ANSI size bits, and standard sockets means any qualified installer can drive these anchors without sourcing proprietary equipment.
Specifications
- MPN: THD50934RC
- Size: 1/2 x 9-3/4 in.
- Rod Diameter: 1/2 in.
- Length: 9-3/4 in.
- Material: Carbon Steel
- Coating: Zinc Plated
- Finish: Zinc Plated
- Packaging: Packs of 20 and Cartons of 40
Approved Applications
- Single-story rod tiedown systems
- Multi-story rod tiedown systems
- Attaching threaded rod to concrete stem walls
- Attaching threaded rod to thickened slab footings
- Wind and seismic loading applications as listed in ESR-2713
- Dry interior environments only
Frequently Asked Questions
- What special tools are needed to install the Titen HD Rod Coupler?
- No special setting tools are required. The Titen HD rod coupler installs with a regular or hammer drill, ANSI size bits, and standard sockets, making it straightforward for most contractors and installers.
- Can this anchor be used in wet or outdoor environments?
- No. This is a zinc-plated carbon steel anchor intended for use in dry interior environments only. It is not rated for exterior, wet, or corrosive applications.
- Is the Titen HD Rod Coupler code listed for seismic and wind applications?
- Yes. This anchor is code listed in ESR-2713 for both wind and seismic loading, making it suitable for use in regions with applicable building code requirements for lateral force resistance systems.
- How does the Titen HD Rod Coupler differ from adhesive anchors?
- Unlike adhesive anchors, the Titen HD Rod Coupler requires no cure time, no secondary setting process, and no special installation tools. Simply drill a hole and drive the anchor, which significantly reduces installation time and overall installed cost.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
