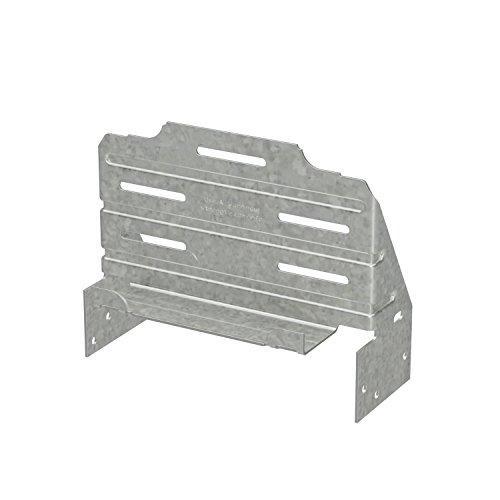

The Simpson TC26 2x6 Scissor Truss Connector is a purpose-built structural connector from Simpson Strong-Tie, engineered specifically for scissor truss applications on 2x truss and 2x6 wall assemblies. Designed to accommodate controlled horizontal movement while simultaneously resisting uplift forces, this truss tie brings together the reliability that structural engineers specify and the straightforward installation that contractors depend on - making every framed connection stronger, safer, and more code-compliant.

Key Features

• Accommodates horizontal movement up to 1 1/4 in. - allows scissor trusses to move as intended under load without stressing the connection point or the surrounding framing.
• Attaches plated trusses to top plates or sill plates - actively resists uplift forces at both ends of the truss, providing critical structural security in high-wind and code-sensitive applications.
• Suitable for single- or dual-end installation - gives designers flexibility to specify one or both ends of the truss based on actual project load requirements.
• Formed from 16-gauge steel - delivers the structural rigidity and load capacity expected of a heavy-duty truss connector without adding unnecessary bulk.
• G90 zinc galvanized coating - provides an extra layer of corrosion resistance, helping the connector hold up in demanding job-site conditions over the long term.
• Installs with 10d common nails - uses a standard, widely available fastener so there is no need for specialty hardware to complete a proper, code-compliant installation.
• Engineer trusted and contractor proven - backed by Simpson Strong-Tie's rigorous engineering and testing standards, giving you confidence the connector will perform as specified.

Why This Product

• Scissor truss-specific design - unlike general-purpose truss clips, this connector is engineered specifically for scissor truss geometry, allowing up to 1 1/4 in. of horizontal movement so the assembly can perform as the structural designer intended.
• Dual-function performance - a single connector both accommodates truss movement and resists uplift forces at the top plate or sill plate, reducing the need for additional hardware and simplifying the framing connection detail.
• Built-in corrosion protection - the G90 galvanized finish means this connector is ready for real-world job-site conditions without requiring any additional field treatment or coating.
• Backed by Simpson Strong-Tie engineering - manufactured to the high quality standards that have made Simpson Strong-Tie the go-to choice for engineers and contractors on residential and commercial framing projects alike.

Specifications

• Model Number: TC26
• Member Size: 2x truss on 2x6 wall
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Install With: 10d common nails
• Country of Origin: United States

Approved Applications

• Scissor truss connections requiring horizontal movement accommodation up to 1 1/4"
• Attaching plated trusses to top plates to resist uplift forces
• Attaching plated trusses to sill plates to resist uplift forces
• Single or dual-end truss connections as determined by the Designer

Frequently Asked Questions

What type of truss is the TC26 specifically designed for?

The TC26 is specifically designed as an ideal connector for scissor trusses, accommodating horizontal movement of up to 1 1/4" while also attaching plated trusses to top plates or sill plates to resist uplift forces.

What fasteners are required to install the TC26?

The TC26 should be installed with 10d common nails for a proper and code-compliant connection.

How many TC26 connectors are needed per truss?

The TC26 is typically used on one or both ends of a truss, as determined by the Designer based on the specific structural requirements of the project.

What corrosion protection does the TC26 offer?

The TC26 features a G90 zinc galvanized coating, which provides an extra layer of corrosion resistance, making it suitable for use in a variety of construction environments.
