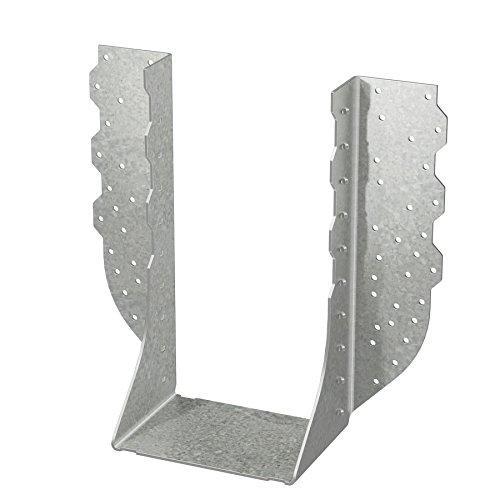

The Simpson HGUS5.50/12 Face-Mount Joist Hanger is a heavy-duty structural connector from Simpson engineered specifically for applications where higher load values are needed. Designed to provide support underneath the joist, rafter, or beam, this face-mount hanger delivers a strong, reliable connection for demanding structural work involving nominal 6x10 lumber, 5-1/4 in. SCL (structural composite lumber), and 5-1/2 in. glulam beams. Built from 12-gauge steel with a G90 zinc galvanized finish, it is a dependable choice for engineered wood framing in both residential and commercial construction.

Key Features

• Double-shear nailing design - distributes the load through two points on each joist nail, giving the connection significantly greater strength and making it well-suited for high-load structural applications.
• Fewer nails required, standard nails accepted - the double-shear geometry lets you achieve a strong connection with fewer fasteners, speeding up installation and eliminating the need for specialty hardware.
• Compatible with multiple engineered wood members - fits nominal 6x10 lumber, 5-1/4 in. SCL, and 5-1/2 in. glulam, giving structural framers flexibility across a range of beam types without changing hardware.
• 12-gauge steel construction - provides the rigidity and load capacity required in heavy structural framing scenarios where lighter-gauge hangers are not appropriate.
• G90 zinc galvanized coating - offers extra corrosion resistance, making this hanger suitable for environments with elevated moisture exposure where long-term durability is a priority.
• Tabs must not be bent or removed - preserving the factory tab configuration maintains the engineered load ratings, protecting the integrity of the connection as tested and listed.

Why This Product

• Engineered for higher load demands - the HGUS series is specifically designed for applications where standard hangers fall short, making this the right choice when structural loads exceed what conventional face-mount hardware can handle.
• Faster installation without sacrificing strength - the double-shear nailing system reduces the total number of nails needed while actually increasing load distribution, so crews can work more efficiently on large framing projects.
• Broad compatibility with engineered lumber - supporting nominal 6x10, 5-1/4 in. SCL, and 5-1/2 in. glulam in a single hanger model means fewer SKUs to manage on the jobsite and consistent hardware across mixed-material beam layouts.
• Corrosion-resistant finish built for longevity - the G90 galvanized coating goes beyond bare steel protection, making this hanger a practical option for framing exposed to humidity, weather, or other corrosive conditions.

Specifications

• MPN: HGUS5.50/12
• Brand: Simpson Strong-Tie
• Gauge: 12
• Seat Width: 5-1/2 in.
• Height: 10-1/2 in.
• Member Size: 6x10, 5-1/4 in. SCL, 5-1/2 in. glulam
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist or beam sizes is the HGUS5.50/12 designed to support?

The HGUS5.50/12 is designed for a nominal 6x10 lumber, 5-1/4 in. SCL (structural composite lumber), or 5-1/2 in. glulam beam, making it compatible with a range of engineered wood products used in heavy-load applications.

What type of nails should be used to install this hanger?

This hanger should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer nails while still achieving greater strength, and standard nails can be used for all connections.

What does double-shear nailing mean and why does it matter?

Double-shear nailing distributes the load through two points on each joist nail rather than one, which significantly increases the strength of the connection. This engineering advantage is what makes the HGUS series suitable for applications requiring higher load values.

Is the HGUS5.50/12 suitable for outdoor or high-moisture environments?

Yes. The hanger is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance, making it appropriate for use in environments where exposure to moisture is a concern.

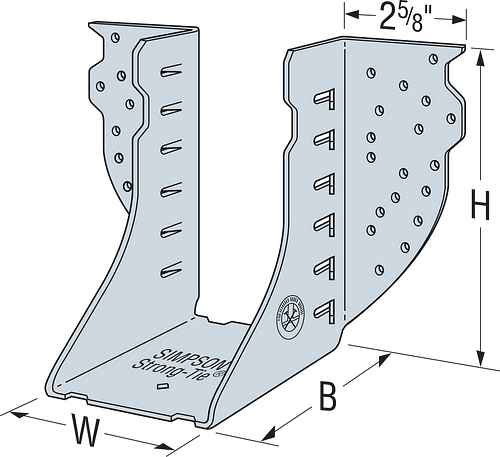

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
