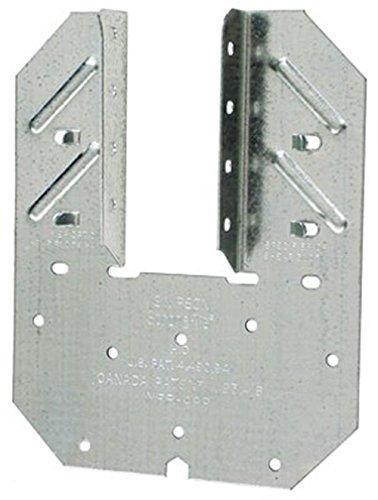

The Simpson H10AZ Hurricane Tie is an 18-gauge steel, U-shaped structural connector from Simpson designed to secure rafters or trusses on both sides simultaneously for higher uplift applications. Strategically placed embossments add stiffness in crucial areas, and slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking in sloped roof assemblies. Optional fastener holes let the connector also tie roof blocking directly to the top plate, making it a versatile choice for a wide range of wind and seismic tie-down situations.

Key Features

• U-shaped design grips both sides of the rafter or truss - secures the member on two sides at once, delivering higher uplift resistance and faster installation compared to using two separate single-sided ties.
• Embossments add stiffness in crucial areas - reinforces the connector at high-stress zones for improved load performance where it matters most.
• Forms part of a continuous load path - integrates into the structural system to help resist wind and seismic forces, supporting code-compliant construction in demanding environments.
• Slots allow field bending up to a maximum pitch of 6:12 - gives installers the flexibility to adapt the connector on-site to angled blocking without special tools or additional hardware.
• Optional fastener holes for roof blocking-to-top-plate connections - expands the connector's usefulness beyond standard rafter ties, reducing the need for additional hardware in the assembly.
• ZMAX galvanization offers extra corrosion resistance - provides a higher level of protection than standard galvanized finishes, making the connector well suited for exterior installations and contact with treated wood.
• Made from 18-gauge steel - delivers a reliable strength-to-weight balance that keeps the connector manageable during installation without compromising structural integrity.

Why This Product

• One connector does the work of two - the U-shaped profile holds the rafter or truss on both sides in a single step, cutting installation time compared to applying two individual single-sided hurricane ties.
• Built for treated-wood and exterior conditions - ZMAX galvanization provides extra corrosion resistance beyond standard galvanized coatings, making this tie a dependable long-term choice in moisture-exposed or chemically treated framing environments.
• Field-adjustable for sloped roofs - integrated slots let contractors bend the connector on-site to match roof pitches up to 6:12, reducing the need to source pitch-specific hardware for angled blocking applications.
• Versatile fastening options built in - optional fastener holes allow the same connector to also join roof blocking to the top plate, consolidating multiple connection tasks into one product and simplifying the fastener schedule.

Specifications

• Model Number: H10AZ
• Gauge: 18
• Finish/Coating: ZMAX
• Seat Width: 1-9/16 in.
• Install With: (18) 0.148 in. x 1-1/2 in. nails
• Country of Origin: United States

Downloads and Resources

• View Specifications

Frequently Asked Questions

Why choose the H10AZ over two single-sided hurricane ties?

The H10AZ's U-shaped design holds the rafter or truss on both sides simultaneously, providing faster installation than using two single-sided ties while delivering the same or greater coverage for higher uplift applications.

What makes the ZMAX finish different from standard galvanization?

ZMAX galvanization offers extra corrosion resistance compared to standard galvanized finishes, making it suitable for exterior and treated-wood applications where additional protection against corrosion is required.

Can the H10AZ be used on angled or sloped roof installations?

Yes. The H10AZ features slots that allow field bending up to a maximum pitch of 6:12, accommodating angled blocking in sloped roof applications.

Can the H10AZ be used to connect roof blocking to the top plate?

Yes. H10A models come with optional fastener holes specifically designed to connect roof blocking to the top plate, adding versatility to the connector's application.
