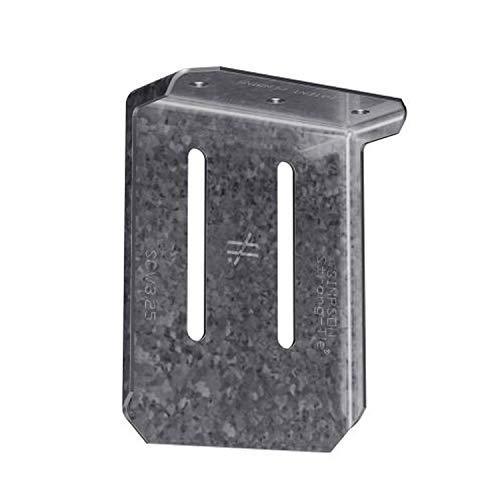

The Simpson SCW3.25-KT Head-of-Wall Slide-Clip Connector by Simpson is precision-engineered for head-of-wall assemblies that must accommodate vertical movement relative to the structure. Manufactured from 54-mil (16-gauge) steel with a G90 zinc galvanized finish, this slide-clip connector delivers controlled deflection capacity in steel framing applications - and it also serves to strengthen window and door jambs on projects utilizing slip-track construction. Each kit includes precision-manufactured shouldered screws designed to prevent overdriving and to ensure the clip functions properly, so installers have everything needed to complete the connection correctly from the start.

Key Features

• Full 1 in. of both upward and downward movement - accommodates structural deflection in live-load conditions without compromising the wall assembly
• Anchor holes located to maximize performance - optimized hole placement ensures secure attachment and consistent load transfer at the head-of-wall connection
• Simpson "No-Equal" stamps mark the center of the slots - built-in visual guides help installers place shouldered screws correctly every time, reducing the risk of installation error
• Includes precision-manufactured XLSH34B1414 #14 shouldered screws - purpose-built fasteners prevent overdriving and ensure the clip functions as engineered, eliminating the need to source compatible hardware separately
• Made from 54-mil (16-gauge) steel with G90 zinc galvanized finish - heavy-gauge construction combined with galvanized coating provides added corrosion resistance for long-term durability
• Applicable to window and door jamb reinforcement on slip-track projects - versatile beyond head-of-wall use, adding structural value at multiple framing connection points

Why This Product

• A complete, ready-to-install kit - the SCW3.25-KT comes with 55 XLSH34B1414 #14 shouldered screws matched specifically to the connectors, so every component is pre-paired and no additional fastener sourcing is required on the job site
• Built-in installation guidance reduces costly errors - the "No-Equal" slot-center stamps take the guesswork out of shouldered-screw placement, helping ensure each connection performs to its rated capacity
• Engineered for real-world structural deflection - a full 1 in. of vertical travel in both directions means this connector handles the movement demands of live loads without loosening or binding the wall assembly
• Dual-purpose utility across framing applications - designed primarily for head-of-wall deflection connections, this slide-clip also reinforces window and door jambs on slip-track projects, delivering value at more than one point in the framing assembly

Specifications

• MPN: SCW3.25-KT
• Brand: Simpson Strong-Tie
• Width: 3-1/4 in.
• Gauge: 16 (54-mil)
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Quantity: 25 connectors
• Country of Origin: United States
• Install With: Use the specified number of XLSH34B1414 #14 shouldered screws (included)

Approved Applications

• Head-of-wall applications that require vertical movement relative to the structure
• Strengthening window and door jambs for projects that utilize slip-track

What's Included

• 25 SCW 3-1/4 in. slide-clip connectors
• 55 XLSH34B1414 #14 shouldered screws

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
