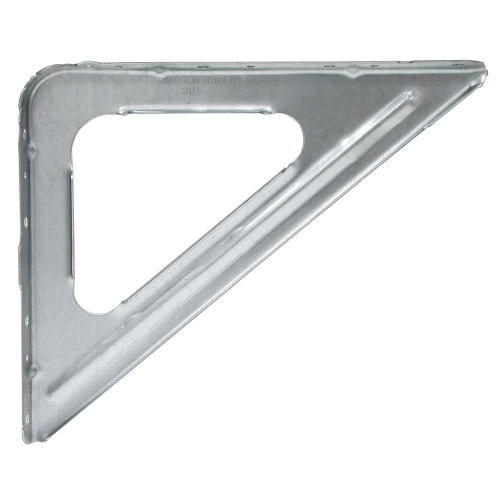

The Simpson SBV 9 in. x 11 in. 16-Gauge Galvanized Shelf Bracket by Simpson is engineered to reinforce the connection between a vertical wall and a horizontal surface, delivering structural support and functionality across a range of projects including shelving, counters, and window ledges. Its reversible design accommodates nominal 10-in. or 12-in. shelves of any thickness, making it a practical and economical solution for builders and contractors who need a dependable wall bracket that adapts to varying shelf configurations without requiring multiple part numbers.

Key Features

• Approved for installation with Strong-Drive SDS Heavy-Duty Connector screws - ensures a tested, compatible fastener pairing for a secure and code-conscious installation.
• Reversible design supporting up to a 12 in. overhang - lets you flip the bracket to fit your project layout, eliminating the need to purchase separate left- and right-hand versions.
• Strategically placed nail holes - allow the shelf or surface material to be secured directly to the bracket, keeping everything aligned and reducing movement over time.
• Constructed from 16-gauge steel - provides a sturdy, load-capable framework suited to structural support applications such as shelving, counters, and window ledges.
• G90 zinc galvanized finish - adds an extra layer of corrosion resistance, making this bracket a reliable choice for moisture-prone or demanding environments.

Why This Product

• One bracket, multiple shelf sizes - the reversible design supports nominal 10-in. and 12-in. shelves of any thickness, so you can standardize on a single bracket across different shelf depths rather than stocking multiple SKUs.
• Built for structural applications, not just light-duty storage - 16-gauge steel construction and compatibility with Strong-Drive SDS Heavy-Duty Connector screws make this shelf support bracket suitable for counters, window ledges, and other applications where holding strength matters.
• Corrosion-resistant from the start - the G90 galvanized coating provides extra protection against rust and moisture damage, extending the service life of the bracket in environments where an uncoated bracket would degrade faster.
• Made in the United States by a trusted structural connector brand - Simpson manufactures this wall bracket domestically, giving contractors and builders confidence in consistent quality and material standards.

Specifications

• Model Number: SBV
• Gauge: 16
• Height: 9 in.
• Depth: 11 in.
• Coating/Finish: Zinc Galvanized, G90
• Member Size: Nominal 10-in. or 12-in. shelves of any thickness
• Installation Hardware: Install with (4) 1/4 in. x 2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Country of Origin: United States

Approved Applications

• Shelving installations
• Counters
• Window ledges

Frequently Asked Questions

What screws are approved for installing the Simpson SBV Shelf Bracket?

The SBV is approved for installation with (4) 1/4 in. x 2 in. Strong-Drive SDS Heavy-Duty Connector screws.

What shelf sizes does the SBV reversible design support?

The reversible design supports nominal 10-in. or 12-in. shelves of any thickness, and can accommodate an overhang of up to 12 in.

What corrosion protection does the SBV Shelf Bracket offer?

The SBV is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance, making it suitable for use in moisture-prone environments.

What gauge steel is the SBV Shelf Bracket made from?

The SBV Shelf Bracket is made from 16-gauge steel, offering a sturdy and reliable construction for structural support applications including shelving, counters, and window ledges.
