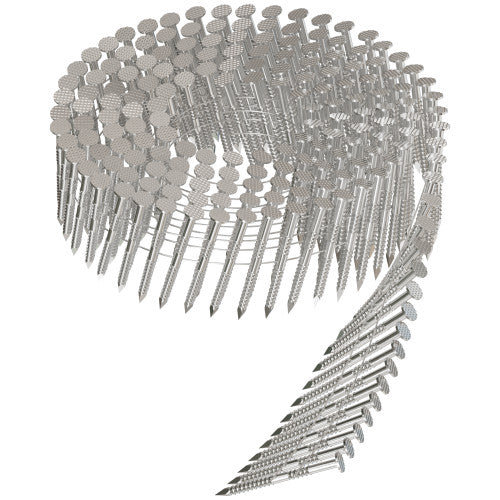

Simpson 15 deg. Wire Coil Full Round Head Ring-Shank Framing Nail, 3 in. x 0.12 in., 11 Ga, Type 304 Stainless Steel, 1800-Pack is a professional-grade collated nail from Simpson engineered for general framing and wood deck board applications where holding power and corrosion resistance are equally critical. The annular ring shank delivers superior withdrawal resistance compared to smooth-shank alternatives, while Type 304 stainless steel construction stands up to the moisture and environmental exposure common in exterior framing and decking work. Wire-coil collation at a 15 deg. angle pairs with many major manufacturers' pneumatic coil nailers to reduce driving force and keep installation moving efficiently on larger jobs.

Key Features

• Annular ring shank - increases withdrawal resistance compared to a smooth shank, keeping fastened assemblies tight and secure over time in framing and decking applications
• Type 304 stainless steel material and finish - provides high-level corrosion resistance, making these nails well suited for exterior, moisture-exposed, and deck board installations
• 15 deg. wire-coil collation - compatible with many major manufacturers' pneumatic coil nailers, reducing driving force and increasing installation speed on the job
• Full round head with checkered pattern - the checker pattern blends with wood grain, reduces glare from sunlight, and accepts surface finishes for a cleaner finished appearance
• Diamond point tip - promotes consistent, accurate nail placement and cleaner entry into framing lumber and deck boards
• 11 gauge, 3 in. length (10d) - delivers the shank diameter and penetration depth required for reliable structural connections in general framing and deck board fastening

Why This Product

• Built for demanding exterior and framing applications - Type 304 stainless steel construction addresses the corrosion risk that eliminates standard steel fasteners from outdoor and moisture-prone environments, so structural connections hold up over the long term without rust compromise.
• Ring shank holding power where it counts - the annular ring shank is purpose-designed to resist pull-through and withdrawal forces that occur in framing assemblies and deck boards under load and seasonal movement, outperforming smooth-shank nails in holding strength.
• Pneumatic-ready collation keeps production high - the 15 deg. wire-coil format works with many major manufacturers' coil nailers, so contractors and builders can drive fasteners faster and with less effort across large framing or decking projects.
• Head design engineered for finished surfaces - the checkered full round head blends with wood grain and accepts stains or surface finishes, making these nails a practical choice for visible deck board work where appearance alongside structural performance matters.

Specifications

• MPN: S11A300PNJ
• Brand: Simpson Strong-Tie
• Penny Size: 10d
• Length: 3 in.
• Gauge: 11
• Shank Diameter: 0.120 in.
• Head Diameter: 17/64 in.
• Head Type: Full Round Head
• Head Pattern: Checkered
• Shank Type: Annular-Ring Shank
• Point Type: Diamond Point
• Collation Type: Wire Coil
• Collation Angle: 15 deg.
• Material: Type 304 Stainless Steel
• Finish: Type 304 Stainless Steel
• Packaging Quantity: 1,800
• Country of Origin: United States

Approved Applications

• General Framing

Frequently Asked Questions

What type of shank do these nails have, and why does it matter?

These nails feature an annular ring shank, which increases withdrawal resistance compared to a smooth shank. This design provides a more secure attachment in framing and decking applications where holding power is critical.

What material are these nails made from, and are they suitable for outdoor use?

These nails are manufactured from Type 304 stainless steel, which provides high-level corrosion resistance. This makes them well suited for outdoor and moisture-exposed applications such as decking and exterior framing.

What collation angle and type do these nails use?

These nails use wire-coil collation at a 15 deg. angle. This collation style is compatible with many major manufacturers' pneumatic coil nailers, helping to reduce driving force and increase installation speed.

How many nails are included in one package?

Each package contains 1,800 nails, making this pack a practical choice for larger framing and decking projects that require a high volume of fasteners.

Downloads and Resources

• Tool Compatibility Matrix
• Contact us for additional assistance with fastener selection.

Note: Product dimensions may differ from picture.
