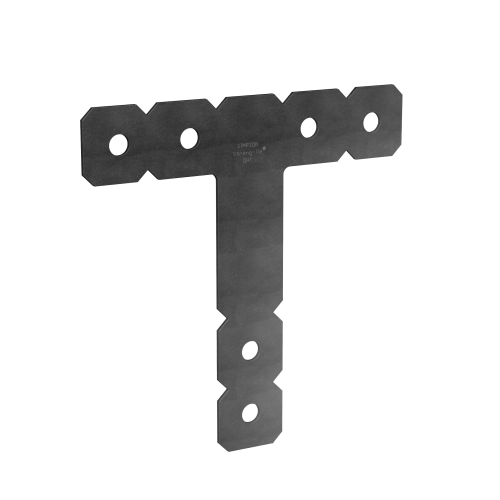

The Simpson Ornamental Beam to Column Tie is a flat, T-shaped heavy utility strap from Simpson's Decorative Hardware line, built for interior applications where structural reliability and visual design work together. Part of the Rustic Collection, this connector transfers both lateral and uplift loads while its notched detailing and black powder-coat finish make it a natural fit for exposed-connector projects - from rustic cabin-style great rooms to timber-frame interior builds where every hardware detail is on display.

Key Features

• Notched decorative edges - give the connector the look and feel of a rustic cabin, so exposed hardware becomes a design feature rather than an eyesore
• T-shaped profile - makes it a versatile utility strap capable of handling a variety of beam-to-column connection scenarios, transferring both lateral and uplift loads in a single piece
• Designed to resist wind and seismic forces - provides structural confidence in interior framing applications where load transfer matters as much as appearance
• Installs in pairs for load rating - ensures bolts work in double shear, delivering the full engineered load capacity of the connection
• Made from 7-gauge steel - heavy-duty material thickness that supports serious structural loads without adding bulk that would undercut the ornamental look
• Black powder-coat finish - delivers a consistent, prefinished decorative appearance straight out of the box, eliminating the need for field painting or touch-up on exposed connectors

Why This Product

• Structural and decorative in one piece - unlike plain utility straps that must be hidden or painted on-site, this connector is engineered to be seen, combining load-rated performance with Rustic Collection notched detailing and a prefinished black powder-coat finish
• Purpose-built for exposed interior timber connections - designed specifically for interior beam-to-column applications where the connector faces direct view, making it the right tool for open-ceiling great rooms, timber-frame dining areas, and cabin-style renovation projects
• Wind and seismic resistance built in - the strap is engineered to resist lateral and uplift forces, so builders get a connector that satisfies structural requirements while keeping the interior aesthetic intact
• American-made quality from a trusted structural brand - produced domestically and backed by Simpson's reputation for precision-manufactured structural connectors, giving specifiers and contractors confidence in both fit and performance

Specifications

• Model No.: OHT
• Gauge: 7
• Width: 2 1/2 in.
• Height: 12 in.
• Length: 12 in.
• Coating/Finish: Powder Coating, Black
• Install With: 5/8 in. diameter machine bolts (sold separately)
• Country of Origin: United States

Frequently Asked Questions

What is the OHT designed to connect?

The OHT is a flat ornamental beam-to-column tie designed for interior applications, making it ideal for connecting beams to columns where the connector will be visible and aesthetics matter.

Does the OHT need to be installed in pairs?

Yes. The connector must be installed in pairs for load rating. A single part with bolts in single shear is not load rated; bolts must be in double shear when the connectors are installed as a pair.

What fasteners are required to install the OHT?

Installation requires 5/8 in. diameter machine bolts. Fasteners are not included and must be sourced separately.

Is the OHT suitable for outdoor or exposed exterior use?

The OHT is designed for interior applications. Its black powder-coat finish provides a decorative look suited for interior projects where the connectors will be exposed to view, such as rustic cabin-style interiors.
