Product Description
The Simpson MSTA24 24" Medium Strap Tie is an engineered structural connector built by Simpson to resist tension loads in wood-to-wood uplift applications. Formed from 18-gauge steel with a G90 zinc galvanized finish, this strap tie is factory load-rated and features a staggered nail pattern to help minimize wood splitting - delivering consistent, code-ready performance for floor-to-floor clear span connections and edge installation on 2x members where field-fabricated straps fall short.
Key Features
- Factory load-rated with correct thickness and fastener count - eliminates the guesswork and inconsistency of field-fabricated straps, giving you verified, reliable performance on every installation
- Increased load ratings for wind and seismic forces - engineered to meet the higher demands of structural uplift and lateral force applications, supporting code compliance in demanding conditions
- Floor-to-floor clear span application - designed to bridge full-story connections without interruption, making it a practical choice for multi-level framing assemblies
- Staggered nail pattern - spreads fastener placement to help minimize wood splitting, protecting the integrity of the 2x member and the connection itself
- Designed for use on the edge of 2x members - purpose-built geometry ensures proper fit and load transfer on standard dimensional lumber without modification
- 18-gauge steel construction - provides the structural thickness required to meet rated load values, balancing strength with straightforward installation
- G90 zinc galvanized coating - adds a robust layer of corrosion resistance, extending the service life of the connector in demanding construction environments
- Installs with 10d common nails or #9 x 1 1/2 in. Strong-Drive SD screws - compatible with widely available fasteners, keeping installation simple and material sourcing straightforward
Why This Product
- Engineered reliability over field fabrication - because this strap tie is factory load-rated with the correct thickness and number of fasteners, builders get consistent, documented performance that hand-cut or shop-bent straps simply cannot provide
- Built for wind and seismic uplift demands - with load ratings specifically increased for wind and seismic forces, this connector is suited for structural applications where code-compliant tension resistance is non-negotiable
- Corrosion resistance you can count on - the G90 zinc galvanized finish goes beyond basic protection, making this strap a dependable long-term choice in construction environments where moisture exposure is a concern
- Designed to protect the wood, not just connect it - the staggered nail pattern actively reduces the risk of splitting in 2x members during installation, helping maintain the structural integrity of the lumber and the connection together

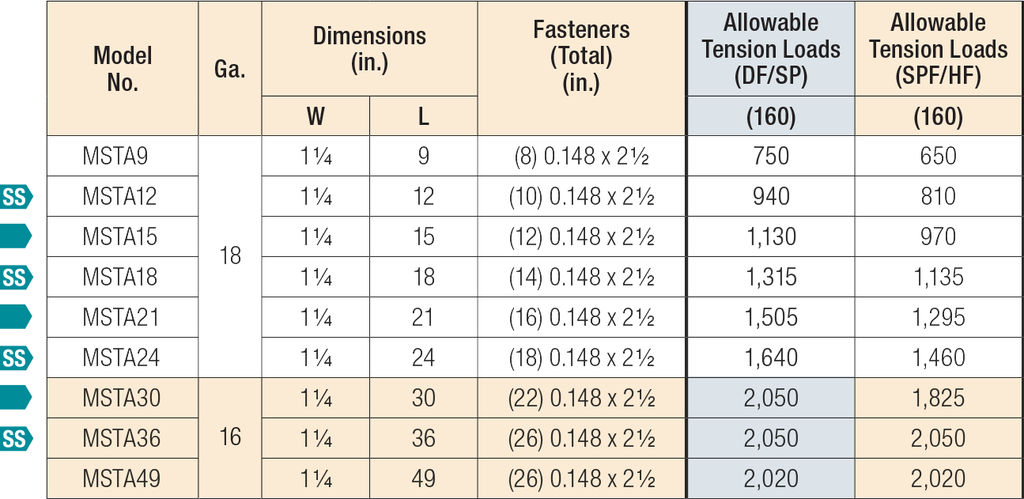

Specifications
- MPN: MSTA24
- Length: 24 in.
- Width: 1-1/4 in.
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Member Size: 2x
- Country of Origin: United States
Approved Applications
- Wood-to-wood uplift and tension load connections
- Floor-to-floor clear span applications
- Edge installation on 2x members
- Wind and seismic force-resisting applications
Frequently Asked Questions
- What fasteners should be used to install the MSTA24?
- Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws.
- Why does the MSTA24 use a staggered nail pattern?
- The staggered nail pattern is specifically designed to help minimize wood splitting during installation, ensuring a stronger and cleaner connection in the 2x member.
- How does the MSTA24 differ from a field-fabricated strap?
- Unlike field-fabricated straps, the MSTA24 is factory load-rated with the correct thickness and number of fasteners, providing reliable, verified performance for wind and seismic force resistance.
- What is the corrosion resistance rating of the MSTA24?
- The MSTA24 features a G90 zinc galvanized coating, which provides extra corrosion resistance suitable for demanding construction environments.

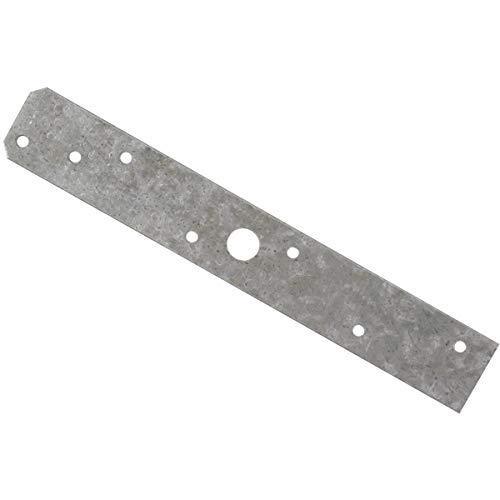

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
