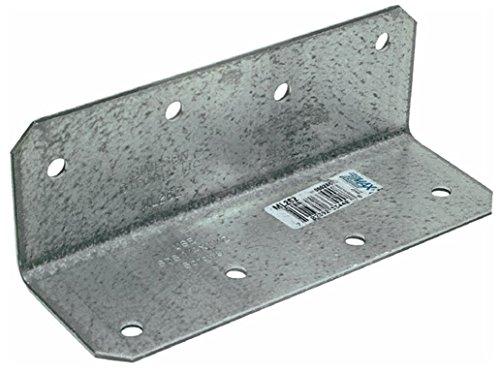

The Simpson ML28Z 2 x 8 ZMAX Galvanized Medium L Angle is a structural connector from Simpson engineered to create reliable 90 deg. connections in medium and heavy-duty framing, blocking, and general construction applications. Built from 12-gauge steel with ZMAX galvanization, it delivers the kind of consistent, straight corner joints that angled nailing or standard screw fastening simply cannot match - making it a go-to bracket for exterior builds, deck framing, and treated-wood assemblies where corrosion resistance and structural integrity are equally important.

Key Features

• 90 deg. connection geometry - locks framing members at a precise right angle so joints come out consistently straight and structurally sound, eliminating the guesswork of hand-nailing corners.
• Stronger than angled nailing or screw fastening - the bracket design transfers load more effectively than toe-nailing alone, giving medium and heavy-duty connections a meaningful strength advantage.
• 12-gauge steel construction - provides the rigidity and load capacity needed for demanding framing tasks without adding excessive bulk to the connection point.
• ZMAX galvanization - delivers extra corrosion resistance beyond standard galvanized coatings, keeping the connector protected in exterior environments and alongside treated lumber where moisture and chemicals are a concern.
• Staggered fastener holes - reduce the risk of wood splitting during installation, helping maintain the integrity of the lumber at the connection.
• Opposing hole pattern - allows two brackets to be installed back to back without fastener interference, making double-angle connections straightforward when additional strength is required.
• Compatible with Strong-Drive SDS Heavy-Duty Connector screws - pairs with a purpose-matched fastener system so installers get a connection that performs as a complete, tested assembly.

Why This Product

• Purpose-built for exterior and treated-wood projects - ZMAX galvanization goes beyond standard corrosion protection, making this angle bracket well suited for decks, pergolas, and other exposed structures where a standard connector would degrade prematurely.
• Back-to-back installation without rework - the opposing hole pattern is specifically designed so two ML28Z brackets can share a connection point without fastener conflict, saving time and material on double-angle applications.
• A stronger alternative to traditional fastening - by replacing angled nailing or basic screw connections with a rigid 12-gauge steel bracket, builders get a more consistent and structurally capable joint on medium and heavy-duty framing jobs.
• Versatile sizing for a wide range of framing tasks - the 2 in. x 8 in. profile strikes a balance between footprint and connection height, making it adaptable across blocking, joist, beam, and post-to-beam connections where a compact but capable angle is needed.

Specifications

• Model Number (MPN): ML28Z
• Width: 2 in.
• Height: 8 in.
• Gauge: 12
• Coating/Finish: ZMAX
• Install With: 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Country of Origin: United States

Frequently Asked Questions

What type of fasteners should be used with the Simpson ML28Z?

The ML28Z is designed to be installed with 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws from Simpson Strong-Tie. Note that fasteners are not provided with the angle and must be sourced separately.

Why is ZMAX galvanization important for this angle bracket?

ZMAX galvanization provides extra corrosion resistance compared to standard galvanized coatings, making the ML28Z well suited for exterior applications and use with treated wood, where exposure to moisture and chemicals can accelerate corrosion of standard steel connectors.

Can two ML28Z angle brackets be installed back to back?

Yes. The ML28Z features an opposing hole pattern specifically designed to allow back-to-back installation without fastener interference, making it easy to create double-angle connections where added strength is required.

How does the ML28Z compare to angled nailing or standard screw fastening?

The ML28Z provides a stronger connection than angled nailing or screw fastening alone. Its 12-gauge steel construction and 90 deg. bracket design help ensure joints are consistently straight and structurally sound, making it ideal for medium and heavy-duty framing applications.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
