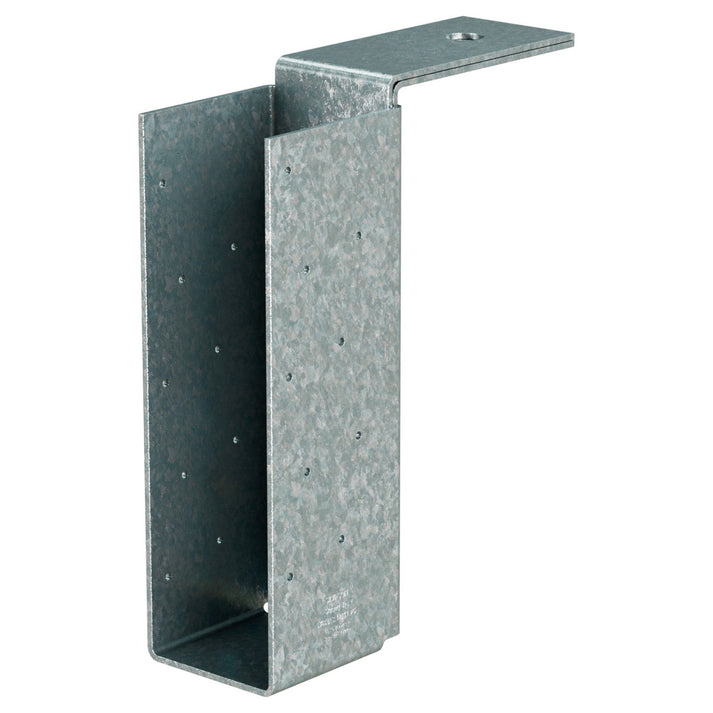

The Simpson Masonry Hanger Skewed Left 3-9/16 x 11-7/8 is a single-piece, non-welded connector engineered for top-flange support in concrete and masonry construction where a fixed 45 deg. left skew is required. Designed to accommodate solid sawn lumber, truss assemblies, and engineered wood products, this hanger delivers structural reliability in angled joist and rafter layouts across residential and commercial framing applications. Built from 10-gauge steel with a G90 galvanized finish, it is purpose-built for load-bearing environments that demand corrosion resistance and precise dimensional fit.

Key Features

• Single-Piece, Non-Welded Construction - Formed from one continuous piece of 10-gauge steel, eliminating weld points and delivering consistent structural integrity across the connection.
• Fixed 45 deg. Left Skew - Pre-set skew angle ensures accurate, repeatable positioning in angled masonry and concrete framing layouts without field modification.
• G90 Galvanized Finish - Provides enhanced corrosion resistance, making this hanger well suited for demanding structural environments where long-term performance is required.
• Top-Flange Masonry Design - Seats directly into concrete or masonry bearing walls, supporting solid sawn lumber, truss assemblies, and engineered wood products in a single versatile connector.
• Domestic Manufacturing - Produced in the United States, supporting quality consistency and reliable dimensional tolerances for structural framing applications.

Why This Product

• Purpose-Built for Skewed Masonry Connections - When a framing layout calls for a 45 deg. left-angled joist or truss connection into concrete or masonry, this connector provides a dedicated solution rather than a field-adapted workaround.
• Broad Structural Compatibility - Supports solid sawn lumber, truss assemblies, and engineered wood products, giving contractors flexibility across a wide range of residential and commercial framing conditions.
• Corrosion-Resistant Steel Construction - 10-gauge steel paired with a G90 galvanized finish means this hanger is built to hold up in the moisture-prone environments common to masonry and concrete construction.
• Straightforward Left/Right Coordination - Paired with its right-skew counterpart, this hanger simplifies project planning when both skew directions are needed, keeping connector selection clear and consistent across a job site.

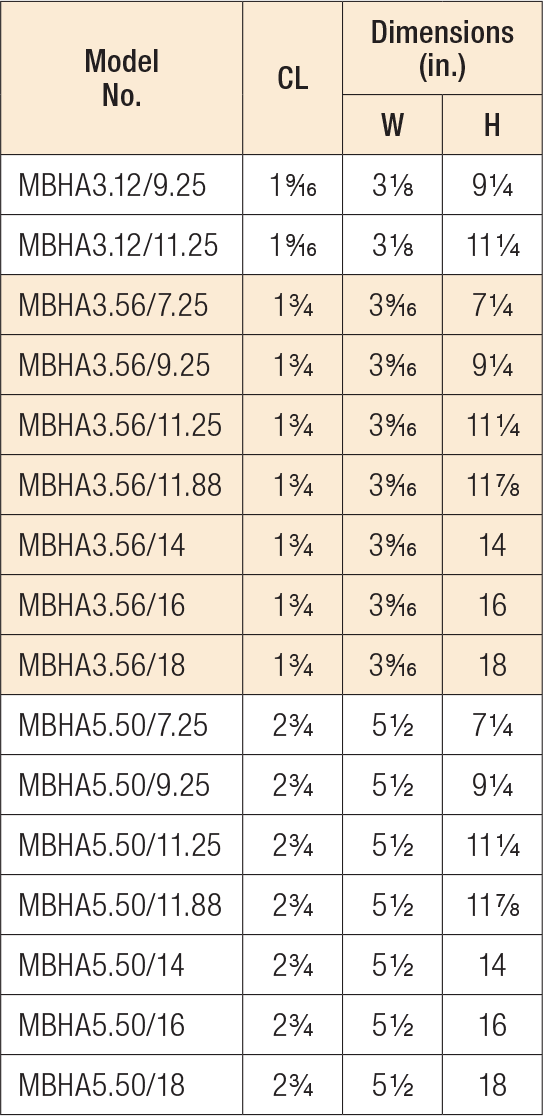

Specifications

• Model Number: MBHAL3.56/11.88
• Description: Masonry Hanger - Skewed 45 Degrees Left
• Width (W): 3-9/16 in. (3 9/16")
• Height (H): 11-7/8 in. (11 7/8")
• Material Gauge: 10 Gauge Steel
• Finish: G90 Galvanized
• Skew Direction: Left (45 Degrees)
• Country of Origin: United States

Approved Applications

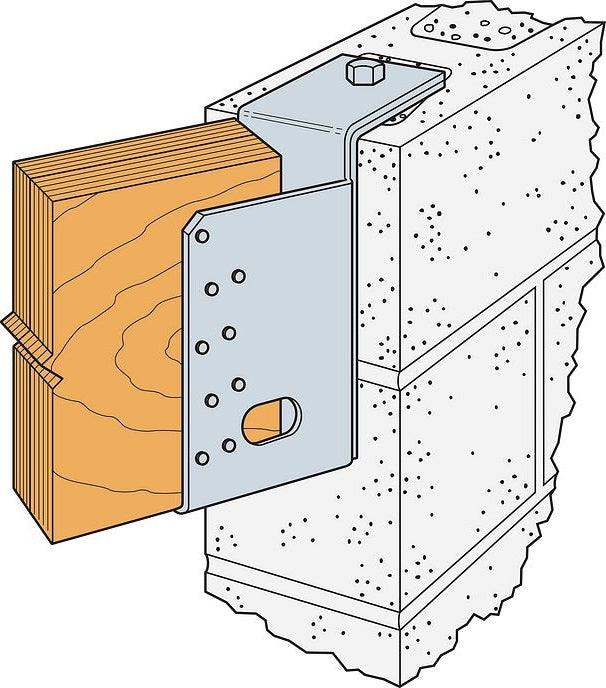

• Concrete and masonry top-flange hanger connections
• Solid sawn lumber framing in skewed configurations
• Truss-to-masonry connections requiring a 45-degree left skew
• Engineered wood product installations into concrete or masonry bearing walls
• Residential and commercial structural framing with angled joist layouts

What's Included

• 1x Simpson MBHAL3.56/11.88 Masonry Hanger - Skewed 45 Degrees Left

• Seat can be skewed at 45 deg. only.
• Contact us for Configurable Options and Special orders
• The maximum allowable download is 3,495 lb. and 1,585 lb. uplift for height 7 1/4". For all other models, use the table listed download and uplift of 2,390 lb. Order MBHAR for skew right and MBHAL for skew left.
