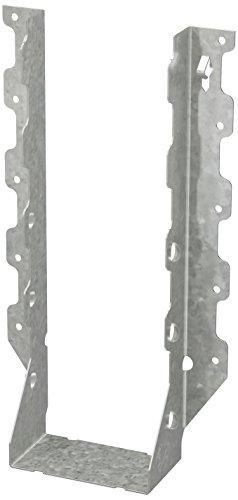

The Simpson LUS414 LUS Galvanized Face-Mount Joist Hanger for 4x14 from Simpson is an economical, easy-to-install connector engineered to provide reliable support underneath joists, rafters, and beams for a strong, secure structural connection. Compatible with nominal 4x12 and 4x14 lumber sizes, this widely used hanger features a patented double-shear nailing design that distributes the load through two points on each joist nail, delivering greater strength while requiring fewer nails and enabling faster installation. Formed from 18-gauge steel with a G90 zinc galvanized finish, it is built to hold up in demanding conditions while keeping installation straightforward for both professionals and experienced builders.

Key Features

• Patented double-shear nailing design provides greater strength with fewer nails - load is distributed through two points on each joist nail, so you get a stronger connection without driving extra fasteners, saving time on every install.
• Speed prongs for fast and easy installation - the hanger positions itself quickly on the framing member, keeping it stable while you drive fasteners and reducing the fussing and repositioning that slows down a job.
• Angled joist nailing easier in tight spaces - nail angles are engineered to let you drive joist nails even where swing room is limited, so the hanger works in framed bays and confined framing layouts without awkward workarounds.
• Compatible with all common nails for the same connection - no specialty fasteners required to achieve rated loads, keeping your fastener costs predictable and your workflow simple.
• Made from 18-gauge steel - provides a sturdy, rigid connector body that maintains its shape during installation and holds up under the structural loads typical of residential and light commercial framing.
• G90 zinc galvanized finish for extra corrosion resistance - the heavier galvanized coating protects the steel in moisture-exposed framing environments, helping the connection maintain its integrity over the long term.
• Do not bend or remove tabs - the tabs are structural to the hanger's rated performance, so leaving them intact ensures the connection meets the load values the hanger is designed to deliver.

Why This Product

• Fewer nails, faster installs, same strong result - the patented double-shear nailing design lets the hanger achieve its full rated load with fewer fasteners than a conventional single-shear hanger, cutting installation time without cutting corners on connection strength.
• Built for real-world framing conditions - speed prongs and angled joist nailing work together to keep the hanger in place and driveable even in tight bays or awkward framing layouts, reducing the frustration that slows down production framing and remodel work alike.
• Corrosion resistance you can count on - the G90 galvanized coating goes beyond a basic zinc coat, making this hanger a sound choice for framing in areas where moisture exposure is a concern and long-term durability matters.
• A trusted connection solution from Simpson - the LUS series is one of the most widely used face-mount joist hangers in the industry, backed by Simpson's engineering and load-rated for 4x12 and 4x14 nominal lumber so builders can spec it with confidence.

Specifications

• Model Number: LUS414
• Brand: Simpson Strong-Tie
• Member Size: 4x12, 4x14
• Width: 3-9/16 in.
• Height: 10-3/4 in.
• Seat Depth: 2 in.
• Gauge: 18
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States

Frequently Asked Questions

What fasteners should be used to install the LUS414?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (10) #9 x 1-1/2 in. screws in the header AND (6) #9 x 2-1/2 in. screws in the joist, OR (16) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG). Always use all specified fasteners per the load tables.

What is the advantage of the double-shear nailing design?

The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails and faster installation while still achieving the same strong connection using all common nails.

What lumber sizes is the LUS414 compatible with?

The LUS414 is designed for nominal joist sizes of 4x12 and 4x14 lumber.

Can the tabs on the LUS414 be bent or removed during installation?

No. The tabs on the LUS414 must not be bent or removed. Additionally, the hanger is not designed for welded or nailer applications, and joist nails must be driven at an angle through the joist or truss into the header to achieve the rated table loads.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
