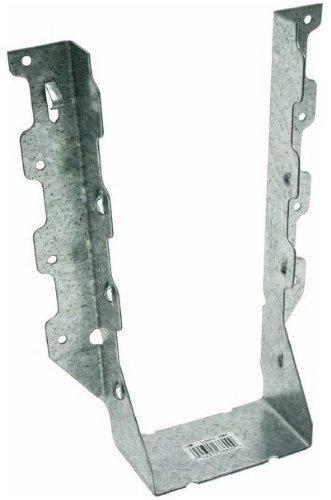

The Simpson LUS410Z LUS ZMAX Galvanized Face-Mount Joist Hanger by Simpson is an economical, easy-to-install hanger engineered to deliver reliable support underneath joists, rafters, and beams in a wide range of structural framing applications. Built from 18-gauge steel with a ZMAX galvanized finish, this face-mount connector features a patented double-shear nailing design that distributes load through two points on each joist nail, giving builders a stronger connection with fewer nails and faster turnaround on the job site. Its compatibility with nominal lumber sizes of 4x10, 4x12, and 4x14 makes it a versatile choice for common dimensional lumber framing, whether in interior construction or exterior treated-wood environments.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, providing greater strength while allowing fewer nails and faster installation for the same connection
• Speed prongs - hold the hanger in position during installation, reducing the need for extra hands and speeding up the fastening process
• Angled joist nailing - makes driving fasteners easier when working in confined or tight spaces where a straight approach is not practical
• ZMAX galvanized coating - provides extra corrosion resistance, making this hanger suitable for exterior applications and connections involving pressure-treated lumber
• 18-gauge steel construction - delivers the structural rigidity needed for tested and code-compliant joist, rafter, and beam connections
• Compatible with nominal sizes 4x10, 4x12, and 4x14 - offers flexibility across multiple common lumber dimensions without requiring a different hanger for each size
• Do not bend or remove tabs - maintaining the factory configuration preserves the engineered load capacity and code compliance of the connection

Why This Product

• Strength without extra hardware - the patented double-shear nailing system achieves greater load distribution using fewer nails than a conventional single-shear design, helping builders work more efficiently without sacrificing connection performance
• Built for treated-wood and exterior framing - the ZMAX galvanized finish is specifically formulated to resist corrosion in the demanding conditions created by exterior exposure and pressure-treated lumber, making this hanger a dependable long-term choice for decks, pergolas, and outdoor structures
• One hanger, three lumber sizes - the LUS410Z accommodates nominal 4x10, 4x12, and 4x14 members, reducing the number of SKUs a contractor needs to stock for jobs involving varied dimensional lumber
• Installation-friendly design from the ground up - speed prongs for quick positioning combined with angled joist nailing access mean faster, less frustrating installs even in tight framing bays, keeping projects on schedule

Specifications

• Model Number: LUS410Z
• Brand: Simpson Strong-Tie
• Gauge: 18
• Coating / Finish: ZMAX
• Nominal Member Size: 4x10, 4x12, 4x14
• Seat Depth: 2 in.
• Width: 3-9/16 in.
• Height: 8-3/4 in.
• Country of Origin: United States

Approved Applications

• Face-mount joist, rafter, and beam connections for common lumber sizes
• Exterior applications where treated wood is used
• Tight-space installations where angled joist nailing is required
• Wide range of structural framing applications requiring tested and code-compliant connections

Frequently Asked Questions

What fasteners should be used to install the LUS410Z?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (8) #9 x 1-1/2 in. screws in the header AND (6) #9 x 2-1/2 in. screws in the joist, OR (14) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG). Use all specified fasteners; see Load Tables for full guidance.

What lumber sizes is the LUS410Z compatible with?

The LUS410Z is designed for nominal joist sizes of 4x10, 4x12, and 4x14, making it versatile for a range of common dimensional lumber applications.

Why does the LUS410Z use a double-shear nailing design?

The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

Is the LUS410Z suitable for exterior or treated-wood applications?

Yes. The LUS410Z features ZMAX galvanization, which offers extra corrosion resistance specifically suited for exterior and treated-wood applications where standard galvanized coatings may not provide sufficient protection.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
