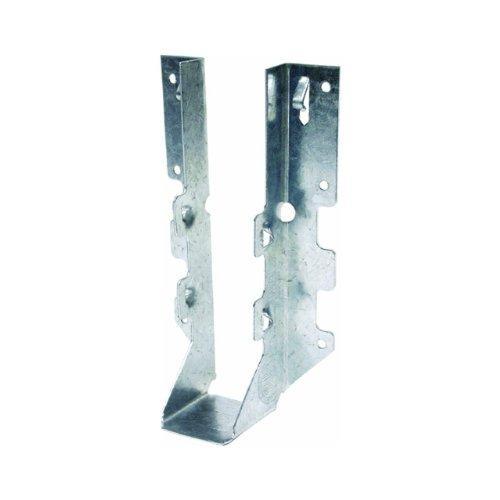

The Simpson LUS28 LUS Galvanized Face-Mount Joist Hanger for 2x8 by Simpson is an economical, easy-to-install face-mount connector engineered to provide reliable support underneath joists, rafters, and beams for a strong structural connection. Built from 18-gauge steel with a G90 galvanized finish for corrosion resistance, this hanger is widely used across standard framing applications and is compatible with nominal 2x8 and 2x10 lumber. Its patented double-shear nailing design distributes load through two points on each joist nail, delivering greater strength while requiring fewer nails and enabling faster installation using all common nail types.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, providing greater strength with fewer nails and faster installation using all common nails
• Speed prongs - grip the header during installation to hold the hanger in position before nailing, speeding up the fastening process
• Angled joist nailing - allows nail placement at an angle so the hanger is easier to fasten in tight or confined framing spaces
• Tabs must not be bent or removed - maintaining the tabs as designed preserves the structural integrity and rated load capacity of the connection
• Compatible with nominal 2x8 and 2x10 lumber - fits a range of common lumber sizes, making it a versatile choice for standard rafter and joist framing
• 18-gauge steel construction - provides a sturdy, load-rated connector suitable for solid sawn lumber framing applications
• G90 galvanized finish - adds an extra layer of corrosion resistance, helping the hanger hold up in demanding conditions over time

Why This Product

• Fewer nails, faster installs - the patented double-shear nailing design achieves greater load-carrying strength without requiring a high nail count, so framing crews can complete connections more quickly without sacrificing performance
• Built for common framing scenarios - designed to fit nominal 2x8 and 2x10 lumber, this hanger covers a wide range of standard joist and rafter connections to headers and beams, reducing the need to source specialty hardware for everyday applications
• Corrosion-resistant finish for long-term reliability - the G90 galvanized coating provides enhanced protection against corrosion, making this hanger a dependable choice where durability of the connector matters over the life of the structure
• Economical without compromising strength - the LUS28 is designed to be a cost-effective face-mount hanger solution that still delivers a load-rated, code-compatible connection, offering practical value for high-volume framing projects

Specifications

• MPN: LUS28
• Brand: Simpson Strong-Tie
• Member Size: 2x8 and 2x10
• Seat Depth: 1-3/4 in.
• Gauge: 18
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 1-9/16 in.
• Height: 6-5/8 in.

Approved Applications

• Face-mount joist and rafter connections to headers and beams
• Common lumber framing applications requiring load-rated connectors
• Solid sawn lumber applications (DF/SP and SPF/HF)
• Wide range of standard framing applications requiring an economical hanger solution

Frequently Asked Questions

What fasteners should be used to install the Simpson LUS28?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 10DHDG).

What is double-shear nailing and why does it matter?

Double-shear nailing distributes the load through two points on each joist nail, providing greater strength compared to single-shear connections. This design allows for fewer nails, faster installation, and the use of all common nails for the same connection.

Can the tabs on the LUS28 be bent or removed during installation?

No. The tabs on the LUS28 must not be bent or removed. Modifying the tabs can compromise the structural integrity and load rating of the hanger.

What lumber sizes is the LUS28 compatible with?

The LUS28 is designed for a nominal joist size of 2x8 and 2x10 lumber, making it suitable for a wide range of common framing applications.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
