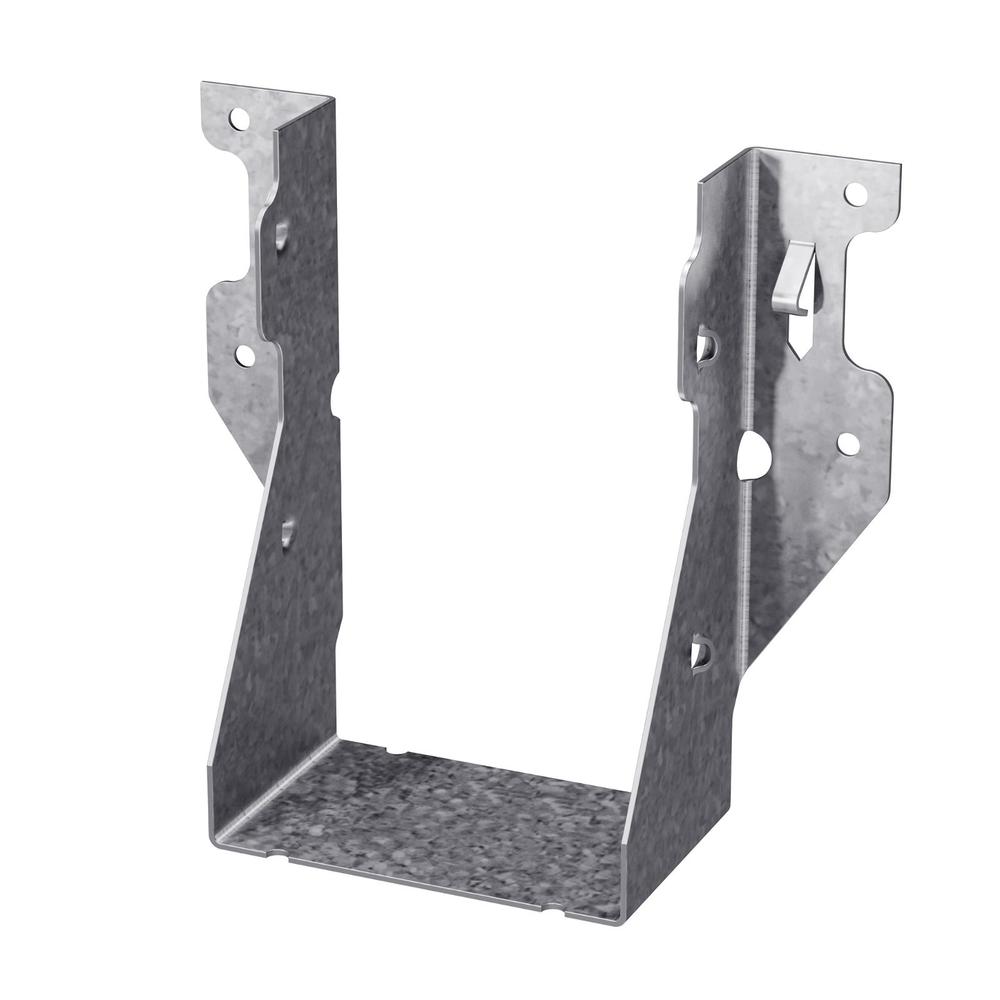

The Simpson LUS26-2 LUS Galvanized Face-Mount Joist Hanger for Double 2x6 by Simpson is an economical, easy-to-install face-mount connector engineered to deliver strong, reliable support for double 2x6 and 2x8 lumber members in solid sawn framing applications. Built from 18-gauge steel with a G90 zinc galvanized finish, this hanger brings together a patented double-shear nailing design, integrated speed prongs, and angled joist nailing geometry to make structural framing connections faster, stronger, and more straightforward - whether you are working on floor systems, roof assemblies, or beam-to-header connections.

Key Features

• Patented double-shear nailing design - distributes the load through two points on each joist nail rather than one, delivering greater connection strength with fewer nails and faster installation
• Speed prongs - temporarily position and hold the hanger in place during setup so you can work hands-free and drive fasteners more efficiently
• Angled joist nailing geometry - lets you drive nails at an angle even in confined or tight framing spaces where a straight drive is not practical
• Fits double 2x6 and 2x8 members - provides versatility across common lumber sizes used in standard residential and light commercial framing
• 18-gauge steel construction - offers a reliable balance of structural rigidity and material efficiency for face-mount joist and rafter connections
• G90 zinc galvanized finish - provides an extra layer of corrosion resistance, helping the connector hold up in demanding or moisture-prone framing environments
• Tabs must not be bent or removed - preserving the factory configuration maintains the structural integrity of the connection and keeps the installation code-compliant

Why This Product

• Fewer nails, same strong connection - the patented double-shear nailing design lets each nail carry load at two points simultaneously, so you use fewer fasteners without sacrificing holding strength, reducing both material use and installation time
• Built for common lumber and common fasteners - compatible with all common nails as well as Simpson Strong-Tie Strong-Drive SD Connector screws and SCN Smooth-Shank Connector nails, meaning no specialty hardware is required on the job site
• Designed for real-world framing conditions - angled joist nailing and speed prong positioning work together to make installation practical even in tight or restricted spaces where standard straight-drive nailing is difficult
• Corrosion-resistant finish for lasting performance - the G90 zinc galvanized coating adds durability in moisture-exposed framing applications, making this hanger a dependable choice for joist and rafter connections that need to perform over the long term

Specifications

• MPN: LUS26-2
• Brand: Simpson Strong-Tie
• Member Size: Double 2x6 and 2x8
• Seat Depth: 2 in.
• Gauge: 18
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 3-1/8 in.
• Height: 4-7/8 in.
• Country of Origin: United States

Approved Applications

• Face-mount joist and rafter connections to headers or beams
• Solid sawn lumber framing applications (DF/SP and SPF/HF)
• Common lumber framing where double 2x6 or 2x8 joist members require strong, code-compliant connections
• Not designed for welded or nailer applications

Frequently Asked Questions

What fasteners should be used to install the LUS26-2?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG). Always use all specified fasteners; see Load Tables for full requirements.

What is the double-shear nailing design and why does it matter?

The patented double-shear nailing design distributes the load through two points on each joist nail rather than one. This provides greater connection strength while allowing fewer nails to be used, which speeds up installation and permits the use of all common nails for the same connection.

Can the LUS26-2 be modified in the field to fit a different application?

No. The LUS26-2 cannot be modified. Tabs must not be bent or removed, as doing so would compromise the structural integrity and void the load-rated, code-compliant performance of the hanger.

How should joist nails be driven during installation?

Joist nails must be driven at an angle through the joist or truss into the header in order to achieve the tabulated load values. The angled nailing design also makes installation easier when working in tight spaces.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifics.
