The Simpson LUC26Z LUC ZMAX Galvanized Face-Mount Concealed-Flange Joist Hanger from Simpson is built to deliver reliable structural support underneath joists, rafters, and beams while keeping the connection point visually clean. Concealed header flanges tuck the mounting hardware out of sight, making this face-mount hanger a practical choice for exposed framing conditions where finished appearance matters alongside load performance. Value engineered for both strength and economy, the LUC26Z is designed for faster, simpler installation without compromising structural integrity.

Key Features

• Tested, load rated, and code compliant - gives you confidence that the hanger meets verified performance standards required for residential and commercial framing projects.
• Multiple tested fastener options available - flexibility to choose between nail or screw installation, each carrying verified allowable loads so you can match the fastener to your workflow.
• Compatible with nominal 2x6 and 2x8 lumber - covers two of the most common framing dimensions, reducing the need to source separate hangers for closely related applications.
• Constructed from 18-gauge steel - provides a strong, durable base suited to the demands of structural joist and rafter connections.
• ZMAX galvanization for extra corrosion resistance - performs reliably in exterior environments and alongside pressure-treated or preservative-treated lumber where standard coatings may fall short.
• Concealed header flanges for clean visible lines - keeps hardware hidden in exposed framing conditions, delivering a finished look without requiring additional trim or cover work.

Why This Product

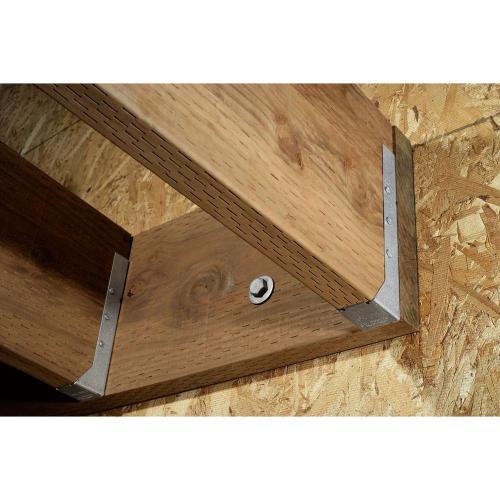

• Aesthetics and structure in one hanger - the concealed-flange design handles the load while keeping the connection point out of view, making it a strong fit for exposed deck framing, open ceiling applications, and similar conditions where both performance and appearance are priorities.
• Built for treated-wood and outdoor use - ZMAX galvanization provides extra corrosion resistance beyond standard coatings, making this hanger well suited for exterior framing and connections involving chemically treated lumber.
• Installation flexibility without guesswork - the LUC series supports several fastener selections, all tested with verified allowable loads, so contractors and DIYers can work with the hardware they have on hand while staying within rated parameters.
• Engineered for value without sacrificing compliance - the LUC26Z is value engineered for economy and ease of installation, yet remains fully tested and code compliant, making it a cost-effective choice for projects that cannot compromise on structural standards.

Specifications

• Model Number: LUC26Z
• Member Size: 2x6, 2x8
• Gauge: 18
• Width: 1 9/16 in.
• Height: 4 3/4 in.
• Coating/Finish: ZMAX
• Seat Depth: 1-3/4 in.
• Country of Origin: United States

Approved Applications

• Face-mount joist hanger applications requiring concealed header flanges
• Exterior applications where enhanced corrosion resistance is required
• Connections involving pressure-treated or preservative-treated lumber
• Exposed framing conditions where clean, finished visible lines are desired
• Residential and commercial framing for joists, rafters, or beams

Frequently Asked Questions

What fasteners are required to install the LUC26Z hanger?

Install with (6) 0.162 in. x 3-1/2 in. nails into the header and (4) 0.148 in. x 1-1/2 in. nails into the joist, OR (10) #9 x 1-1/2 in. Strong-Drive SD screws. Multiple fastener options are tested and carry verified allowable loads.

What lumber sizes is the LUC26Z compatible with?

The LUC26Z is suitable for nominal 2x6 and 2x8 lumber, offering flexibility across a range of common framing applications.

Why choose a ZMAX-coated hanger over a standard galvanized hanger?

ZMAX galvanization provides extra corrosion resistance compared to standard hot-dip galvanized coatings, making the LUC26Z well suited for exterior environments and connections involving treated wood where exposure to moisture and corrosive elements is a concern.

What makes the LUC26Z a good choice for exposed framing conditions?

The LUC26Z features concealed header flanges, which keep the hanger's mounting hardware hidden from view. This design produces cleaner, more aesthetically finished visible lines - an important consideration in exposed framing or architectural applications.
