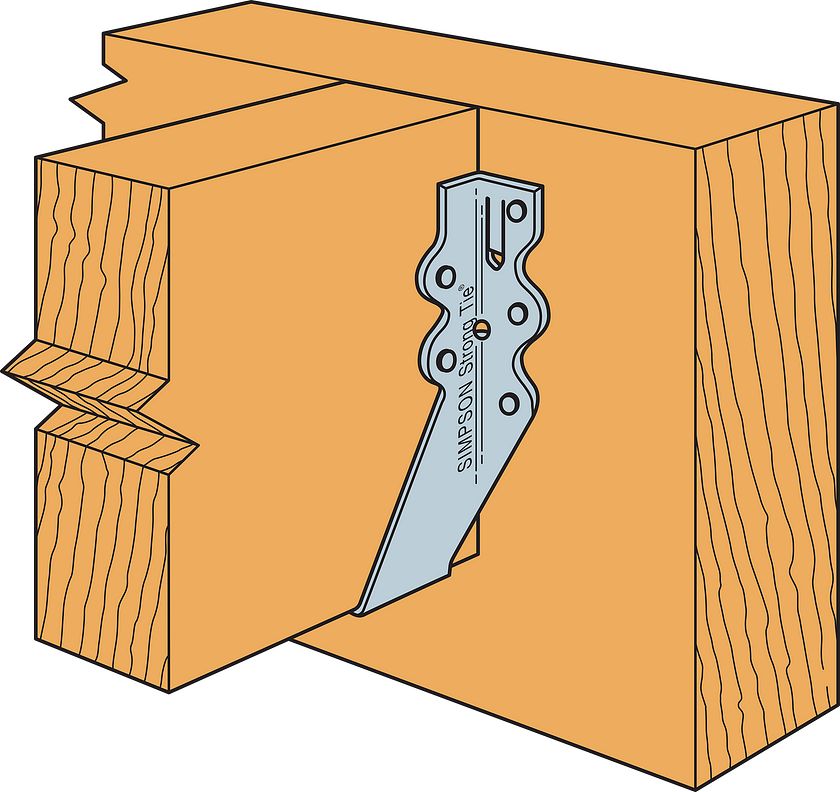

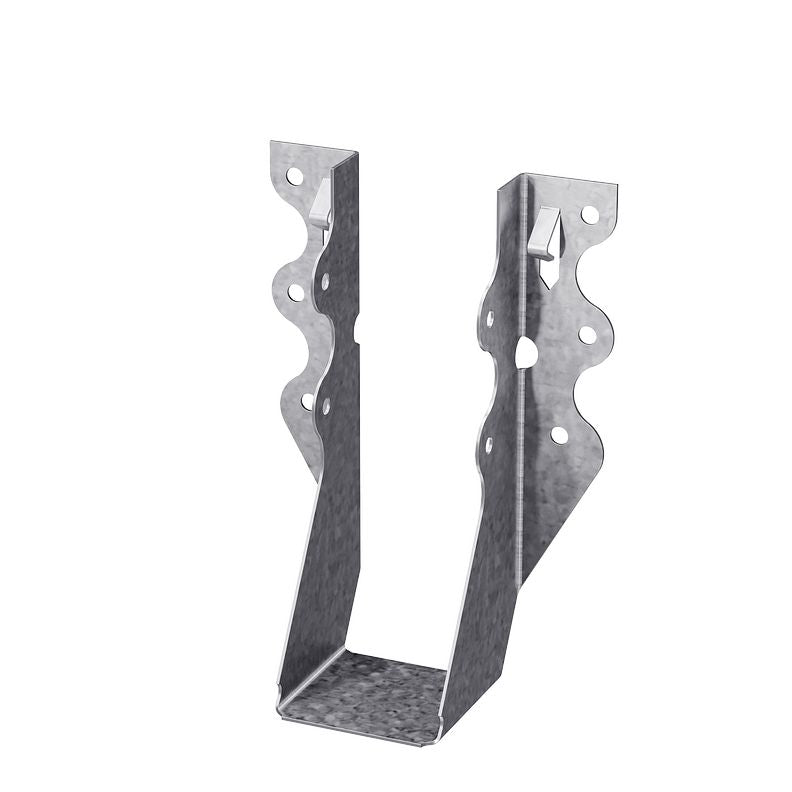

The Simpson LU26R-18 LU Galvanized Face-Mount Joist Hanger for 2x6 Rough is engineered for joist-to-header installation in wood-framed construction. Precision-formed from 18-gauge steel, this face-mount hanger features speed prongs that temporarily position and secure the connector, making placement faster and more accurate on the job site. The economical LU hanger is value engineered for strength, delivering reliable structural performance in residential and light commercial framing applications.

Key Features

• Tested, load rated, and code compliant - gives builders and inspectors confidence that the connection meets recognized structural standards without additional verification burden.
• Multiple fastener selections with tested allowable loads - offers installation flexibility so crews can work with the nail sizes they have on hand while still achieving verified load performance.
• Speed prongs for temporary positioning - hold the hanger in place before nailing, reducing the need for a second set of hands and speeding up single-person installation.
• Precision-formed construction - ensures consistent fit against the header and joist for a clean, tight connection that simplifies alignment during framing.
• G90 zinc galvanized coating - provides extra corrosion resistance, making this face-mount hanger suitable for demanding environments where moisture exposure is a concern.
• Value-engineered design - delivers the strength required for structural framing at a cost-effective price point, keeping project budgets in check without sacrificing integrity.

Why This Product

• Built-in installation efficiency - the speed prong feature sets this joist hanger apart for framers who need to work quickly, allowing the connector to be tacked into position before final fastening and reducing overall labor time on repetitive hanger installations.
• Verified structural confidence - LU-series hangers are tested and load rated with several fastener options, so contractors can select nail sizes that match their workflow while maintaining code-compliant connections in wood-framed structures.
• Corrosion-resistant finish for lasting durability - the G90 zinc galvanized coating protects against rust and degradation, making this hanger a dependable choice for framing applications in humid, coastal, or otherwise corrosion-prone conditions.
• Engineered for a precise fit with 2x6 rough lumber - the hanger is specifically sized for 2x6 rough member applications, eliminating guesswork and ensuring a proper seat and flange fit right out of the box.

Specifications

• MPN: LU26R-18
• Member Size: 2x6 rough
• Gauge: 18
• Seat Width: 2 in.
• Height: 4-9/16 in.
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 2 in.
• Country of Origin: United States

Frequently Asked Questions

What fasteners are required to install the LU26R-18?

Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 1-1/2 in. nails in the joist.

What is the gauge of steel used in the LU26R-18?

The LU26R-18 is made from 18-gauge steel, precision-formed for installation ease and design value.

Is the LU26R-18 suitable for outdoor or corrosion-prone environments?

Yes. The LU26R-18 features a G90 zinc galvanized coating, providing extra corrosion resistance for demanding environments.

Is the LU26R-18 code compliant?

Yes. LU-series hangers are tested, load rated and code compliant, and the series installs using several fastener selections with tested allowable loads.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
• Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specific details.
