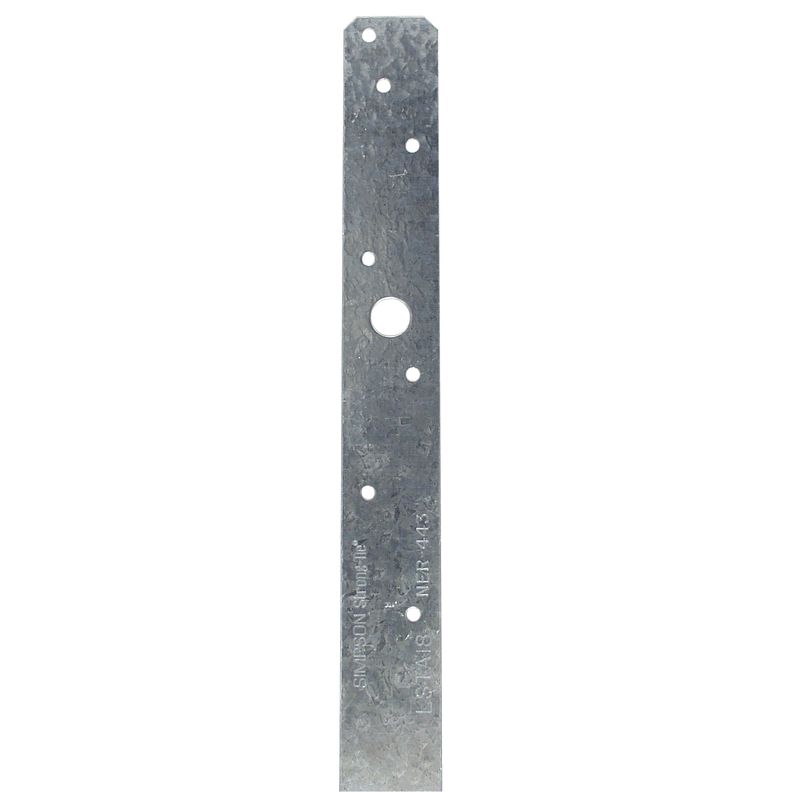

The Simpson LSTA18 1-1/4 in. x 18 in. 20-Gauge Galvanized Strap Tie is a load-rated, precut light strap tie engineered by Simpson to resist tension loads in wood-to-wood applications. Designed specifically for use on the edge of 2x members, it features a staggered nail pattern that helps minimize wood splitting during installation - making it a dependable solution for floor-to-floor clear span connections where wind and seismic resistance are critical requirements.

Key Features

• Load-rated, precut strap - arrives ready to install with no cutting or sizing required, saving time on the job site and ensuring consistent, engineered performance
• Staggered nail pattern - strategically positioned fastener holes help minimize wood splitting when securing to 2x members, protecting the integrity of the connection
• Designed to resist wind and seismic forces - provides reliable structural performance in applications where lateral and tension loads must be addressed
• Floor-to-floor clear span application - bridges framing members across open spans, making it well suited for multi-story structural connections
• 20-gauge steel construction - delivers a strong yet workable strap that installs cleanly with common fasteners including 10d common nails or #9 x 1 1/2 in. Strong-Drive SD screws
• G90 zinc galvanized coating - provides extra corrosion resistance for lasting durability in demanding construction environments
• 1-1/4 in. width x 18 in. length - compact proportions sized for edge applications on 2x framing members without excess material

Why This Product

• Engineered specifically for edge-of-member use - unlike generic strap ties, the LSTA18 is purpose-designed for installation on the edge of 2x members, ensuring the connection geometry works with standard framing rather than against it
• Splitting protection built into the design - the staggered nail pattern is not an afterthought but a core design feature, reducing the risk of damaging the wood during fastening and preserving full structural capacity
• Wind and seismic rated for code-sensitive projects - the load-rated design supports compliance in regions where wind and seismic performance requirements apply to structural strap connections
• G90 galvanized finish for long-term reliability - the corrosion-resistant coating helps the strap maintain its structural integrity over time, even in conditions where moisture exposure is a concern

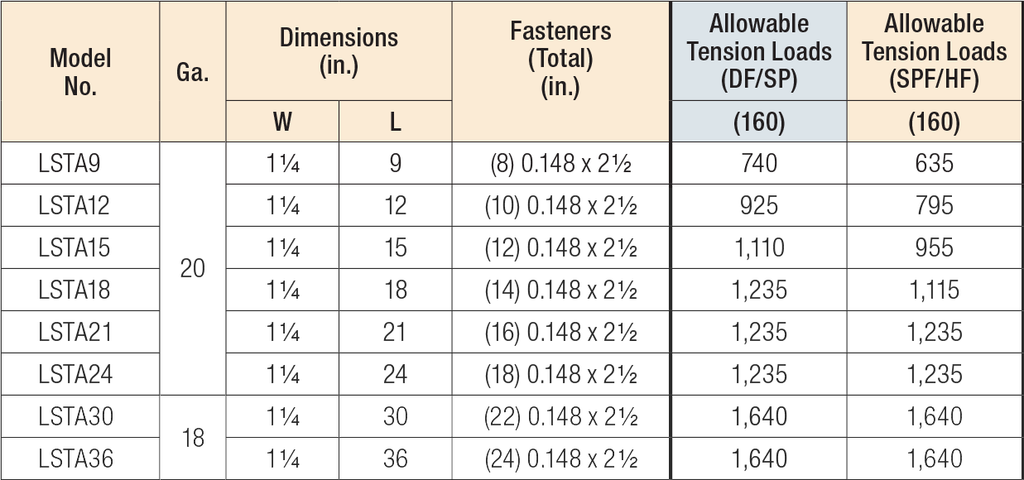

Specifications

• MPN: LSTA18
• Width: 1-1/4 in.
• Length: 18 in.
• Gauge: 20
• Thickness: 33 mil
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Wood-to-wood tension load resistance
• Floor-to-floor clear span connections
• Edge applications on 2x members
• Wind and seismic force resistance in structural framing

Frequently Asked Questions

What fasteners should be used to install the LSTA18?

The LSTA18 should be installed with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws for proper load-rated performance.

What gauge steel is the LSTA18 made from, and what corrosion protection does it have?

The LSTA18 is made from 20-gauge steel and features a G90 zinc galvanized coating, which provides extra corrosion resistance for long-term durability.

How does the LSTA18 help prevent wood splitting during installation?

The LSTA18 utilizes a staggered nail pattern specifically designed to help minimize wood splitting when fastening to 2x members.

Is the LSTA18 suitable for use in areas with wind or seismic activity?

Yes, the LSTA18 is designed to resist wind and seismic forces, making it appropriate for structural applications in regions where these load conditions must be addressed.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
