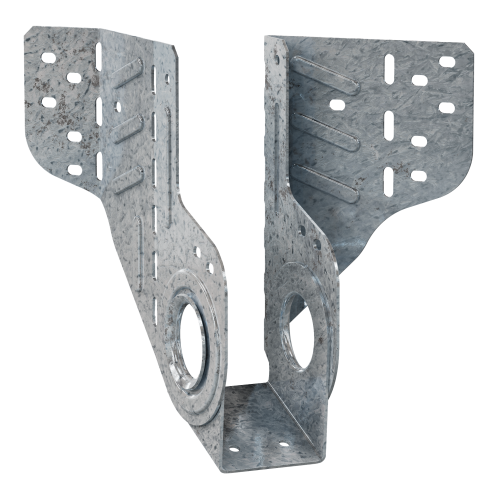

The Simpson LSSR26Z LSSR Light Field-Adjustable Rafter Hanger is a patent-pending, next-generation connector engineered for 2x6 roof framing applications where flexibility and real-world job site conditions demand more than a standard fixed hanger. Built from 18-gauge steel with a ZMAX galvanized finish, this rafter hanger is designed to accommodate complex geometry - adjusting for skew up to 45 deg. and slope up to 45 deg. via an innovative hinged swivel seat - making it a practical solution for intricate roof structures and field conditions where precision adjustments are needed after framing is already underway.

Key Features

• Post-installation capability - can be installed after all rafters have been tacked into place, eliminating the need to disrupt your framing sequence and saving valuable time on the job site
• Flange design with skew adjustment from 0 deg. to 45 deg. - allows the hanger to conform to angled framing conditions in the field without requiring special-order components
• Hinged swivel seat adjusts for slope up to 45 deg. - supports the joist securely across a wide range of roof pitches, reducing the need for custom cuts or additional hardware
• Sized for nominal 2x6 framing with an actual joist width of 1 1/2 in. - ensures a proper, snug fit with standard dimensional lumber used in residential and light commercial roof framing
• Constructed from 18-gauge steel - provides reliable structural performance while keeping the hanger lightweight and easy to handle during installation
• ZMAX galvanization offers extra corrosion resistance - makes this hanger suitable for exterior applications and use with pressure-treated lumber where standard coatings may break down over time

Why This Product

• Designed for the way framing actually happens in the field - because it installs after rafters are already tacked in place, this hanger works with your workflow rather than against it, reducing rework and keeping projects moving
• One hanger handles a wide range of roof geometry - with field adjustability for both skew up to 45 deg. and slope up to 45 deg., a single connector type can address varied framing angles without stocking multiple fixed configurations
• ZMAX coating adds long-term durability where it matters most - the extra corrosion resistance makes this hanger a dependable choice in demanding environments, including exterior exposed conditions and applications involving treated wood
• Simpson engineering in a lightweight, versatile format - the LSSR26Z delivers the trusted Simpson connection performance in an 18-gauge hanger purpose-built for rafter and joist applications where adjustability is the priority

Specifications

• MPN: LSSR26Z
• Nominal Joist Size: 2x6
• Actual Joist Width: 1-1/2 in.
• Gauge: 18
• Coating/Finish: ZMAX

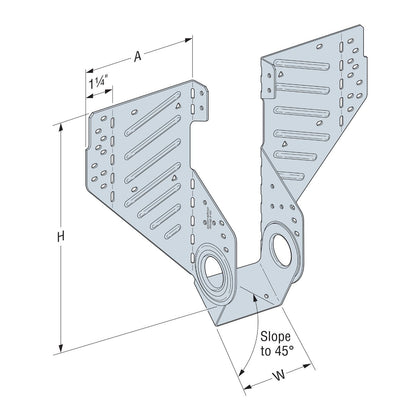

• W: 1-9/16 in.
• H: 5-3/8 in.
• A: 2-1/2 in.
• Country of Origin: United States
• Install With: 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Downloads and Resources

• View Spec Sheet

Frequently Asked Questions

Can the LSSR26Z be installed after the rafters are already in position?

Yes. One of the key features of the LSSR26Z is that it can be installed after all of the rafters have been tacked into place, making it a highly practical choice for field conditions where sequencing flexibility is important.

What is the maximum skew and slope adjustment range for this rafter hanger?

The LSSR26Z is field adjustable for skew from 0 deg. to 45 deg. via its flange design, and it features an innovative hinged swivel seat that adjusts for up to a 45 deg. slope.

What nails are recommended for installing the LSSR26Z?

Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist for proper fastening.

Why does the LSSR26Z feature ZMAX galvanization, and where is it appropriate to use?

ZMAX galvanization provides extra corrosion resistance, making the LSSR26Z suitable for exterior applications and use with treated wood where standard coatings may not offer adequate protection against the elements.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
