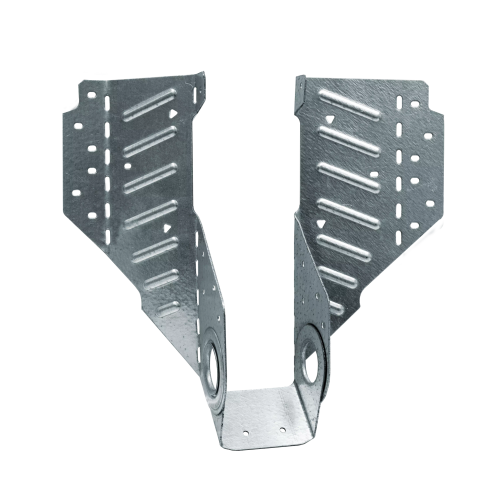

The Simpson LSSR210Z LSSR Light Field-Adjustable Rafter Hanger is a patent-pending, next-generation rafter hanger from Simpson engineered to give framers and contractors the flexibility they need on complex roofing projects. Built for use with nominal 2x10 lumber, this innovative hanger features a hinged swivel seat that adjusts for slope up to 45 deg. and a flange design that skews up to 45 deg., making it one of the most adaptable hangers available for angled rafter connections. ZMAX galvanization provides extra corrosion resistance, making it a reliable choice for exterior framing and applications involving pressure-treated wood.

Key Features

• Installs after rafters are already tacked in place - eliminates the need to pre-position hangers before framing, saving time and reducing rework on the job site.
• Flange design allows for easy skew adjustment from 0 deg. to 45 deg. - accommodates a wide range of framing angles so one hanger handles jobs that would otherwise require multiple specialized connectors.
• Hinged swivel seat adjusts for slope up to 45 deg. - supports the joist securely at steep or shallow roof pitches without cutting or modifying the hanger.
• Made from 18-gauge steel - provides a solid, dependable connection while keeping the hanger lightweight enough for efficient field handling.
• ZMAX galvanization - delivers extra corrosion resistance specifically suited for exterior applications and use with treated lumber, extending the life of the connection in demanding environments.

Why This Product

• True field adjustability in two directions - the combination of skew up to 45 deg. and slope up to 45 deg. means this hanger adapts to real-world roof geometry on site, reducing the need for special-order or custom components.
• Designed for out-of-sequence installation - because it can be installed after all rafters are tacked into place, framers can work faster and correct alignment issues late in the process without tearing apart completed work.
• Built for exterior and treated-wood conditions - ZMAX galvanization is specifically engineered for the corrosive conditions common in outdoor framing and where treated lumber is required, making this hanger a dependable long-term connection.
• Straightforward fastening requirements - compatible with standard framing nails in both the face and joist positions, so installation does not require specialized tools or uncommon fasteners.

Specifications

• MPN: LSSR210Z
• Brand: Simpson Strong-Tie
• Nominal Joist Size: 2x10
• Actual Joist Width: 1-1/2 in.
• Gauge: 18
• Coating/Finish: ZMAX

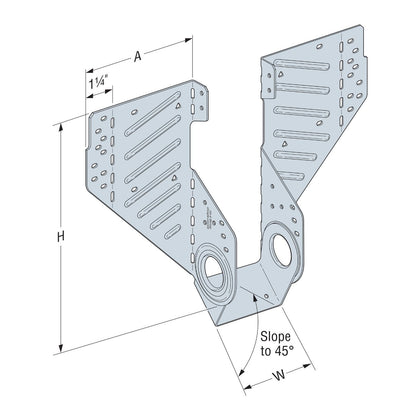

• W: 1-9/16 in.
• H: 9-1/8 in.
• A: 2-1/2 in.
• Install With: 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

Can the LSSR210Z be installed after the rafters are already in place?

Yes. One of the key features of the LSSR210Z is that it is specifically designed to be installed after all of the rafters have been tacked into place, making it a practical choice for field adjustments during the framing process.

How much skew adjustment does the LSSR210Z allow?

The flange design of the LSSR210Z allows for easy skew adjustment ranging from 0 deg. to 45 deg., giving installers significant flexibility to accommodate a wide variety of framing angles.

Is the LSSR210Z suitable for use with treated lumber or exterior applications?

Yes. The LSSR210Z features ZMAX galvanization, which offers extra corrosion resistance specifically designed for exterior and treated-wood applications.

What fasteners should be used to install the LSSR210Z?

Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
