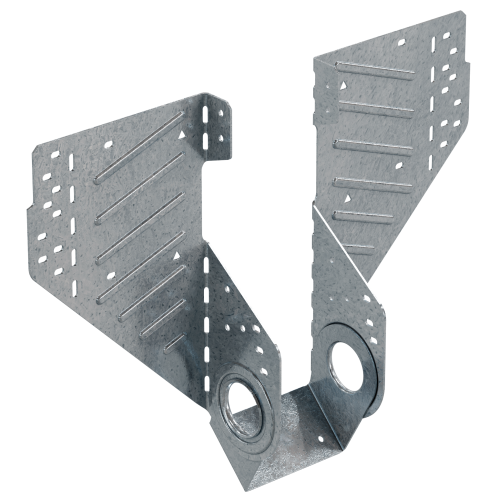

The Simpson Double 2x Field-Adjustable Rafter Hanger ZMAX LSSR210-2Z is a patent-pending, next-generation connector from Simpson engineered to simplify roof framing on complex residential and commercial structures. Its standout capability is the ability to be installed after all rafters have been tacked into place, eliminating the need to sequence hanger installation before rafter placement. A hinged swivel seat adjusts for slope up to 45 deg., while the flange design accommodates skew from 0 deg. to 45 deg., giving builders the flexibility to handle angled and irregular roof configurations without custom fabrication. ZMAX galvanization delivers enhanced corrosion resistance, keeping the connection strong and reliable in exterior environments and applications involving pressure-treated lumber.

Key Features

• Post-installation capability - the hanger can be attached after rafters are already tacked in position, so framing crews can set structure first and fasten hardware without backtracking or resequencing work.
• Flange design with skew adjustment from 0 deg. to 45 deg. - accommodates a wide range of angled connections in a single hanger, reducing the need to stock multiple angle-specific products.
• Hinged swivel seat with slope adjustment up to 45 deg. - supports the joist securely while conforming to pitched roof geometry, making it practical for hip roofs, shed roofs, and other sloped applications.
• 16-gauge steel construction - provides a sturdy, load-bearing connection suited to demanding structural framing requirements.
• ZMAX galvanization - offers extra corrosion resistance for exterior and treated-wood applications, extending service life in harsh or high-moisture environments where standard coatings may fall short.

Why This Product

• Saves time on the job site - because this field-adjustable rafter hanger installs after rafters are already in place, crews avoid the coordination overhead of pre-installing hardware before structural members are set, keeping projects moving efficiently.
• One hanger handles a wide range of roof geometries - with both skew adjustment up to 45 deg. and slope adjustment up to 45 deg. built into a single connector, this hanger reduces the number of specialty parts needed for complex framing layouts.
• Built for exterior and treated-wood conditions - ZMAX galvanization is specifically engineered for applications where standard finishes are not adequate, making this hanger a dependable choice for outdoor structures exposed to moisture or chemical preservatives in lumber.
• Designed for double 2x rafter applications - with an actual joist width of 3 in. and a minimum joist height of 9-1/2 in., this hanger is sized precisely for double 2x members, ensuring a proper fit without field modification.

Specifications

• MPN: LSSR210-2Z
• Gauge: 16
• Coating / Finish: ZMAX
• Member Size: 3 in.
• Actual Joist Width: 3 in.
• Minimum Joist Height: 9-1/2 in.
• Install With: 0.162 in. x 2-1/2 in. nails (sold separately)

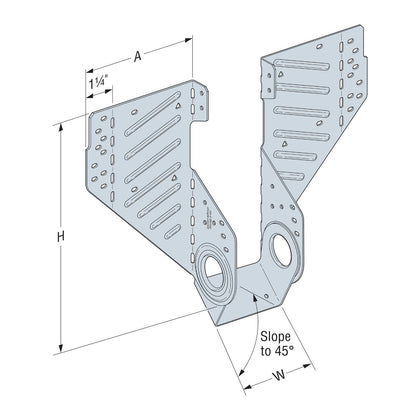

• Width: 3-1/8 in.
• Flange Width: 5-1/8 in.
• Height: 8-15/16 in.
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

Can this rafter hanger be installed after the rafters are already in position?

Yes. One of the key features of the LSSR210-2Z is that it makes it possible to install after the rafters are already in place, saving time and effort on the job site.

How much skew and slope adjustment does the LSSR210-2Z support?

The flange design allows for easy skew adjustment from 0 deg. to 45 deg., and the innovative hinged swivel seat adjusts for up to a 45 deg. slope, making it highly versatile for complex roof framing configurations.

What type of corrosion protection does this hanger offer?

The LSSR210-2Z features ZMAX galvanization, which offers extra corrosion resistance for exterior and treated-wood applications, making it suitable for demanding outdoor environments.

What fasteners are recommended for installing the LSSR210-2Z?

Install with 0.162 in. x 2-1/2 in. nails as specified for this hanger.

Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
