Product Description

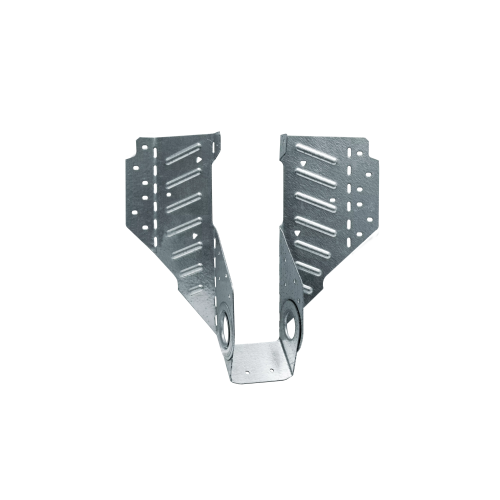

The Simpson LSSR2.1Z Light Field-Adjustable Rafter Hanger is a patent-pending, next-generation connector engineered for 2-inch engineered wood applications where on-site flexibility is essential. Designed by Simpson, this slopeable and skewable rafter hanger features an innovative hinged swivel seat that adjusts for slope up to 45 deg. and a flange design that accommodates skew up to 45 deg. - making it one of the most adaptable rafter connectors available for complex roof framing situations. Its ZMAX galvanized coating provides extra corrosion resistance, making it equally at home in exterior conditions and treated-wood assemblies.
Key Features
- Installs after rafters are already tacked in place - eliminates the need to pre-position hangers before framing, saving time and reducing rework on the job site.
- Flange design allows for easy skew adjustment from 0 deg. to 45 deg. - gives framers the flexibility to handle angled connections without cutting or fabricating custom hardware.

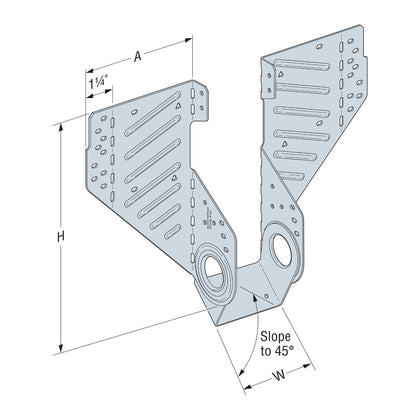

- Hinged swivel seat adjusts for slope up to 45 deg. - supports the joist securely across a wide range of roof pitches, accommodating varied rafter angles in a single connector.
- Made from 18-gauge steel - provides a strong, reliable connection in light rafter and joist framing applications without adding unnecessary bulk.
- ZMAX galvanization offers extra corrosion resistance - makes this hanger suitable for exterior framing and treated-wood applications where standard coatings may fall short.
Why This Product
- Unmatched field adjustability in one connector - with both skew adjustment up to 45 deg. and slope adjustment up to 45 deg., this hanger handles complex roof framing geometry without requiring multiple specialized connectors.
- Designed to work around your framing sequence - because it can be installed after all rafters have been tacked into place, it fits naturally into real-world job site workflows and reduces the risk of sequencing errors.
- Built for demanding exterior and treated-wood environments - the ZMAX coating delivers extra corrosion resistance beyond standard galvanized options, keeping the connection protected in conditions that would compromise lesser finishes.
- Domestically produced quality from a trusted structural connector brand - Simpson engineering backs this hanger's design, giving contractors confidence in performance and consistency across every installation.
Specifications
- MPN: LSSR2.1Z
- Member Size: 2 to 2-1/16 in.
- Gauge: 18
- Coating/Finish: ZMAX
- Installation Fasteners: Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
- Width: 2-1/8 in.
- Flange Width: 4-1/8 in.
- Height: 8-15/16 in.
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or Nail or Screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
Can the LSSR2.1Z be installed after rafters have already been set in place?
Yes. One of the key features of the LSSR2.1Z is that it makes it possible to install after the rafters are already in place, simplifying the installation process on the job site.
How much skew and slope adjustment does the LSSR2.1Z support?
The LSSR2.1Z is field adjustable for skew up to 45 deg. via its flange design, and it features an innovative hinged swivel seat that adjusts for slope up to 45 deg..
What type of corrosion protection does the ZMAX coating provide?
ZMAX galvanization offers extra corrosion resistance, making this hanger suitable for exterior and treated-wood applications where standard coatings may not be sufficient.
What fasteners are recommended for installing the LSSR2.1Z?
Install with 0.148 in. x 2-1/2 in. nails in the face and 0.148 in. x 1-1/2 in. nails in the joist for a proper, code-compliant connection.
