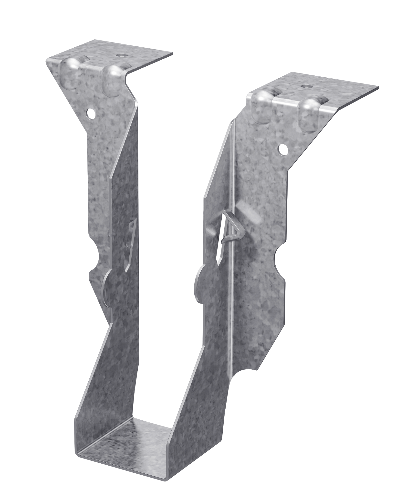

The Simpson JB26 2x6 Top Flange Joist Hanger is a cost-effective, top-flange connector from Simpson Strong-Tie engineered to deliver strong, reliable support underneath joists, rafters, and beams in solid sawn lumber framing. Built from 18-gauge steel with a G90 zinc galvanized finish, this hanger is designed for demanding structural connections where corrosion resistance and load-bearing performance matter. The JB series min/max nailing system gives builders the flexibility to target moderate or higher load conditions with a single hanger, making it a practical choice for a wide range of residential and light commercial framing applications.

Key Features

• Min/max nailing options with positive-angle nailing targets - lets builders dial in the right load capacity for the job, handling moderate conditions with min. nailing or stepping up to higher loads with max. nailing, all without switching to a different hanger.
• Unique two-level embossment on the top flange - adds stiffness right where it counts, improving the structural integrity of the connection and helping the flange hold its shape under load.
• 18-gauge steel construction - provides a solid, durable base that stands up to the demands of structural framing while keeping the hanger lightweight and easy to handle during installation.
• G90 zinc galvanized coating - delivers extra corrosion resistance, helping the hanger maintain its strength and integrity in environments where moisture exposure is a concern.
• Sized for nominal 2x6 lumber - fits standard solid sawn framing members precisely, reducing the need for field adjustments and keeping installations clean and consistent.

Why This Product

• Built-in load flexibility without extra hardware - the min/max nailing system means one hanger covers both moderate and higher load scenarios, reducing the number of SKUs a framer needs to keep on hand for varying conditions.
• Corrosion-resistant finish for long-term performance - the G90 galvanized coating goes beyond basic protection, making this hanger a dependable choice for framing in areas where moisture is a recurring concern.
• Engineered stiffness where it matters most - the two-level embossment is not just a manufacturing detail; it actively reinforces the top flange, contributing to a more rigid, secure connection at the header or beam.
• A trusted Simpson Strong-Tie design backed by documented load tables - the JB26 is supported by published solid sawn lumber load data for both DF/SP and SPF/HF species groups, giving builders and inspectors the documentation they need on the job site.

Specifications

• Model Number: JB26
• Member Size: 2x6
• Gauge: 18
• Width: 1 9/16 in.
• Height: 5 3/8 in.
• Coating/Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Frequently Asked Questions

What size joist is the JB26 designed for?

The JB26 is designed for a nominal 2x6 joist size, making it suitable for standard solid sawn lumber framing applications.

What type of nails should be used to install the JB26?

The JB26 should be installed with 16d common nails. Min. nailing targets moderate load conditions, while max. nailing generates capacities for higher loads.

What corrosion protection does the JB26 provide?

The JB26 features a G90 zinc galvanized coating, which provides extra corrosion resistance, making it suitable for use in environments where moisture exposure is a concern.

What is the purpose of the two-level embossment on the JB26?

The unique two-level embossment on the JB26 provides added stiffness to the top flange, enhancing the overall structural integrity of the connection.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
