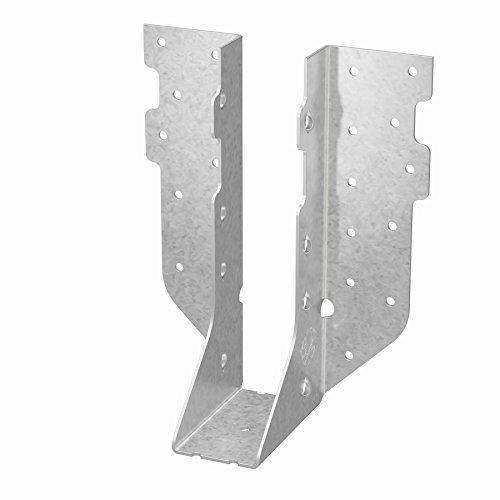

The Simpson HUS28Z HUS ZMAX Galvanized Face-Mount Joist Hanger for 2x8 by Simpson is built for structural connections where higher load values are required. This face-mount hanger supports 2x8 joists, rafters, and beams with a double-shear nailing design and heavy-duty 16-gauge steel construction, while ZMAX galvanization makes it a reliable choice for exterior framing and treated-wood applications where corrosion resistance is critical.

Key Features

• Double-shear nailing design - distributes the load through two points on each joist nail, delivering greater strength than conventional single-shear hangers for demanding structural applications
• Fewer nails required with standard nail compatibility - allows for faster installation without the need for specialty fasteners, saving time on the job without sacrificing connection integrity
• 16-gauge steel construction - provides the heavy-duty structural capacity needed for applications where higher load values are a priority
• ZMAX galvanization - offers extra corrosion resistance, making this hanger well suited for exterior framing and use with treated lumber where standard galvanized coatings may fall short
• 1-5/8 in. seat width for 2x8 lumber - sized precisely for a secure, properly fitted connection with nominal 2x8 joists and rafters
• Tabs must not be bent or removed - maintaining the hanger as designed preserves its load rating and ensures a code-compliant connection

Why This Product

• Engineered for high-load applications - unlike general-purpose joist hangers, the HUS28Z is specifically designed for situations where greater connection strength is needed, making it the right choice for demanding framing projects
• Faster, simpler installation - the double-shear nailing system allows the use of fewer nails and standard nail sizes across all connections, reducing hardware costs and speeding up the framing process
• Built to hold up in tough environments - ZMAX galvanization provides extra corrosion resistance beyond standard coatings, giving builders confidence when working with pressure-treated lumber or in exposed exterior conditions
• American-made quality from a trusted structural brand - manufactured by Simpson, a widely recognized name in structural connectors, this hanger meets the expectations of professional framers and contractors who need consistent, dependable performance

Specifications

• MPN: HUS28Z
• Brand: Simpson Strong-Tie
• Member Size: 2x8
• Height: 7-1/16 in.
• Width: 1-5/8 in.
• Seat Depth: 3 in.
• Gauge: 16
• Coating / Finish: ZMAX
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
• Country of Origin: United States

Frequently Asked Questions

What makes the HUS28Z different from a standard joist hanger?

The HUS28Z is designed specifically for applications where higher load values are needed. Its double-shear nailing design distributes the load through two points on each joist nail, providing greater strength than conventional single-shear hangers.

What type of nails are required to install the HUS28Z?

This hanger is installed with 0.162 in. x 3-1/2 in. nails. The double-shear nailing design also allows for the use of fewer nails overall while maintaining a strong, code-compliant connection.

Is the HUS28Z suitable for use with treated lumber or in exterior applications?

Yes. The ZMAX galvanization coating provides extra corrosion resistance, making the HUS28Z well suited for exterior applications and use with treated wood.

Can the tabs on the HUS28Z be bent or removed to fit a specific application?

No. The tabs on the HUS28Z must not be bent or removed. Modifying the hanger in this way is not permitted and may compromise the integrity and load rating of the connection.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
