Product Description

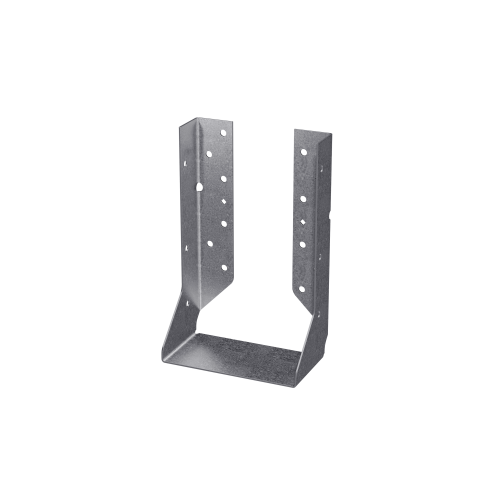

The Simpson HUCQ610Z-SDSG HUCQ ZMAX Heavy Face-Mount Concealed-Flange Joist Hanger is a heavy-duty structural connector engineered by Simpson for projects that demand additional strength and safety factors. Built for nominal 6x10 lumber, this face-mount hanger features concealed header flanges that keep connections clean and unobtrusive in exposed framing applications, and its design allows installation close to the end of the supporting beam for placement flexibility. Included Strong-Drive SDS Heavy-Duty Connector screws drive directly into the material with no predrilling required, so installers get high load capacity without extra prep steps. The ZMAX galvanized finish delivers enhanced corrosion resistance for exterior environments and applications involving treated lumber, making this hanger a dependable choice for wood-to-wood, wood-to-masonry, and wood-to-concrete connections.
Key Features
- Concealed header flanges - keep structural connections visually clean in exposed conditions, eliminating the need to hide or cover hardware after installation
- Tested, load rated, and code compliant - the HUCQ series meets established performance standards, giving contractors and inspectors confidence on permitted projects
- Strong-Drive SDS Heavy-Duty Connector screws included - no need to source fasteners separately, and no predrilling required, reducing labor time on the job site
- Compatible with wood, masonry, and concrete substrates - provides versatility across a wide range of structural applications with a single hanger model
- 14-gauge steel construction - delivers the structural rigidity required for heavy joist and beam connections where standard-duty hangers are not sufficient
- ZMAX galvanization - provides extra corrosion resistance beyond standard coatings, making this hanger well suited for exterior use and contact with treated lumber where standard galvanization may be inadequate
Why This Product
- Built for demanding structural conditions - the HUCQ series is specifically designed for structures requiring additional strength and safety factors, so it goes beyond what a standard joist hanger is rated to handle
- Faster installation with no predrilling - the included Strong-Drive SDS Heavy-Duty Connector screws install directly without predrilling, cutting down installation time while maintaining high connection capacity
- Cleaner results in visible framing - concealed header flanges eliminate exposed hardware on the face of the supporting beam, which matters on decks, timber-frame structures, and other applications where framing is left visible
- Long-term durability in corrosive environments - ZMAX galvanization offers a higher level of protection than standard finishes, making this hanger a reliable choice for exterior decks, covered porches, and framing connected to pressure-treated lumber
Specifications
- Model Number: HUCQ610Z-SDSG
- Member Size: 6x10
- Seat Width: 5-1/2 in.
- Material Gauge: 14-gauge steel
- Finish / Coating: ZMAX
- Country of Origin: United States
- Installation Fasteners: Install with (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
Approved Applications
- Installing wood joists to wood framing members
- Installing wood joists to masonry substrates
- Installing wood joists to concrete substrates
- Exterior applications where corrosion resistance is required
- Applications involving treated lumber where enhanced galvanization is needed
What's Included
Each pack contains (1) HUCQ610Z-SDSG Face-Mount Hanger, (18) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size lumber is the HUCQ610Z-SDSG designed to support?
This hanger is designed for a nominal 6x10 joist or beam, with a seat width of 5-1/2 in. to accommodate that member size.
Do I need to predrill for the SDS screws when installing this hanger?
No predrilling is required. The included Strong-Drive SDS Heavy-Duty Connector screws are designed for direct installation, making the process faster and easier while still delivering high load capacity.
Why does this hanger have ZMAX galvanization instead of standard galvanization?
ZMAX galvanization provides an extra level of corrosion resistance, making this hanger well suited for exterior applications and use with treated lumber, where standard coatings may be insufficient.
Can the HUCQ610Z-SDSG be used with masonry or concrete headers, or only wood?
This hanger is designed to install wood joists to wood, masonry, and concrete supporting members, offering versatility across a range of structural configurations.
