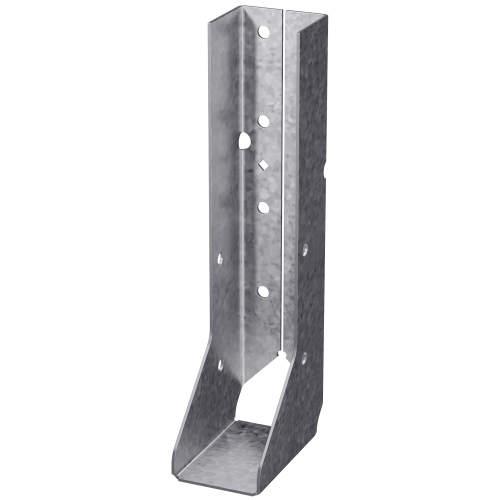

The Simpson HUCQ310SS-SDS is a heavy-duty, 14-gauge stainless steel face-mount joist hanger engineered for 3x10 structural framing connections that demand both exceptional load capacity and long-term corrosion resistance. Built around a concealed header flange design and packaged with Simpson Strong-Drive SDS Heavy-Duty Connector Screws sized 1/4 x 2-1/2, this hanger is purpose-built for demanding residential and commercial framing applications where strength, fit, and material durability are critical requirements.

Key Features

• 14-Gauge Stainless Steel Construction - Delivers the structural integrity required for heavy-duty framing connections while providing reliable corrosion resistance in high-moisture or chemically aggressive environments.
• Concealed Header Flanges - Fit within the supporting structure for a clean, integrated installation, making this hanger well-suited for applications where exposed flanges are undesirable.
• Face-Mount Design - Allows installation directly against the face of the supporting member, including positions close to the end of a supporting beam where other hanger types may not be appropriate.
• Includes SDS Heavy-Duty Connector Screws (1/4 x 2-1/2) - The included Simpson Strong-Drive SDS screws are engineered for high-capacity connections and install without predrilling, reducing labor time and simplifying the fastening process on the job site.
• Approved for Corrosive and High-Moisture Environments - The stainless steel finish makes this hanger a code-appropriate choice for exterior, coastal, and other applications where standard galvanized hardware would be insufficient.

Why This Product

• No-Predrill Installation - The included Simpson Strong-Drive SDS screws drive without predrilling, which speeds up installation on structural framing projects and reduces the number of tools needed on site.
• Built for Corrosive Conditions - Stainless steel construction makes this hanger a dependable long-term solution in high-moisture, coastal, or chemically exposed environments where corrosion resistance is a specification requirement, not just a preference.
• Designed for End-of-Beam and Tight-Clearance Installations - The face-mount configuration with concealed header flanges supports use cases close to the end of a supporting beam, giving contractors flexibility in structural layouts that other hanger profiles cannot accommodate.
• Heavy-Duty Performance for Residential and Commercial Framing - With 14-gauge construction and approval for structural framing connections requiring additional strength and elevated safety factors, this hanger is suited for a wide range of demanding joist and beam connection applications.

Specifications

• Model Number: HUCQ310SS-SDS
• Description: 3X10 HUCQ Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws 1/4 x 2-1/2
• Hanger Type: Face-Mount Joist Hanger
• Material Gauge: 14 Gauge
• Finish: Stainless Steel
• Included Screws: Simpson Strong-Drive SDS Heavy-Duty Connector Screws, 1/4 x 2-1/2
• Country of Origin: United States

Approved Applications

• Structural framing connections requiring additional strength and elevated safety factors
• Face-mount joist and beam connections where concealed header flanges are preferred
• Installations close to the end of a supporting beam
• Corrosive or high-moisture environments where stainless steel is specified
• Heavy-duty residential and commercial construction framing

What's Included

• 1x HUCQ310SS-SDS Stainless Steel Face-Mount Joist Hanger (14 Gauge)
• Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector Screws, 1/4 x 2-1/2

Options

Configurable options and special configurations are available. Contact us for details.

Frequently Asked Questions

What type of screws are included with the HUCQ310SS-SDS?

This hanger includes Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws sized 1/4 x 2-1/2, which are designed for high-capacity connections without the need for predrilling.

What material and gauge is the HUCQ310SS-SDS constructed from?

The HUCQ310SS-SDS is constructed from 14-gauge stainless steel, providing both structural integrity and corrosion resistance for demanding applications.

Can this hanger be installed close to the end of a supporting beam?

Yes. The face-mount design of the HUCQ series allows it to be installed close to the end of the supporting beam, making it highly adaptable for a variety of structural configurations.

Where is the HUCQ310SS-SDS manufactured?

The HUCQ310SS-SDS is manufactured in the United States.

Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
