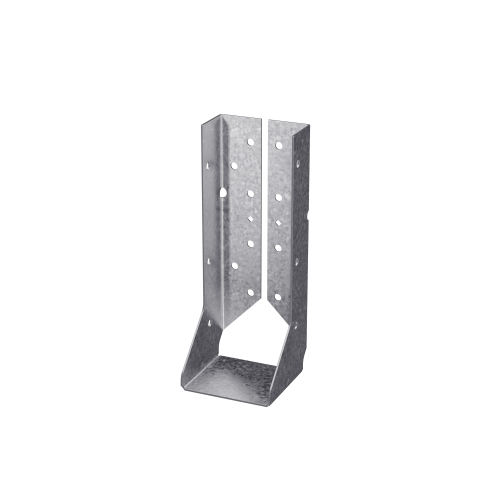

The Simpson HUCQ Heavy Face-Mount Concealed-Flange Joist Hanger for Triple 2x10 is a heavy-duty structural connector engineered by Simpson for framing applications that demand additional strength and safety factors. Built from 14-gauge steel with a ZMAX galvanized finish, this face-mount hanger accepts a triple 2x10 member and features concealed header flanges that keep connections looking clean in exposed framing conditions. It can be installed close to the end of the supporting beam and is compatible with wood, masonry, and concrete headers - making it a versatile solution for a wide range of residential and commercial structural connections. Included Strong-Drive SDS Heavy-Duty Connector screws mean no predrilling is needed, keeping installation straightforward from start to finish.

Key Features

• Concealed header flanges - keep the hanger hidden behind the supporting member for cleaner, more finished-looking results in exposed framing and visible ceiling applications.
• Heavy-duty 14-gauge steel construction - provides the structural capacity needed for triple 2x10 joist assemblies in applications where standard hangers are not sufficient.
• ZMAX galvanization - delivers enhanced corrosion resistance compared to standard finishes, making this hanger well suited for exterior framing and connections involving pressure-treated lumber.
• Compatible with wood, masonry, and concrete headers - gives builders flexibility to use a single hanger type across multiple substrate conditions on the same project.
• Installs close to the end of the supporting beam - reduces layout constraints and expands placement options where beam ends or spacing would otherwise limit hanger positioning.
• Strong-Drive SDS Heavy-Duty Connector screws included - no predrilling required, so installation is faster and requires fewer tools on the job site.
• Tested, load rated, and code compliant - HUCQ-series hangers carry verified load ratings, giving engineers, inspectors, and builders confidence in every connection.

Why This Product

• Engineered for demanding structural loads - the HUCQ series is specifically designed for structures requiring additional strength and safety factors, making it the appropriate choice when a standard-duty hanger is not rated for the application.
• Screws included, no predrilling needed - the package includes all 18 Strong-Drive SDS Heavy-Duty Connector screws required for a complete installation, eliminating extra hardware sourcing and reducing labor time on site.
• Concealed flanges suit both structural and aesthetic requirements - the hidden header flange design means this heavy-duty connector works equally well in utility framing and in finished or exposed-beam spaces where hardware visibility matters.
• ZMAX finish extends service life in corrosive environments - whether used in exterior decks, covered outdoor structures, or applications with ACQ or other treated lumber, the ZMAX coating helps protect the connection over the long term.

Specifications

• Model Number: HUCQ210-3Z-SDS
• Member Size: Triple 2x10
• Seat Width: 4-5/8 in.
• Gauge: 14-gauge steel
• Finish: ZMAX
• Coating: ZMAX
• Country of Origin: United States
• Install With: Install with (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)

Approved Applications

• Wood joist to wood beam connections
• Wood joist to masonry connections
• Wood joist to concrete connections
• Exterior and treated-wood applications requiring enhanced corrosion resistance
• Structures requiring additional strength and safety factors

What's Included

Each pack contains (1) HUCQ210-3Z-SDS Triple Face-Mount Hanger, (18) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.

Options

• Contact us for Configurable Options and Special orders

Note: Product dimensions and/or Screw holes may differ from picture. Please see item description for specifications.
