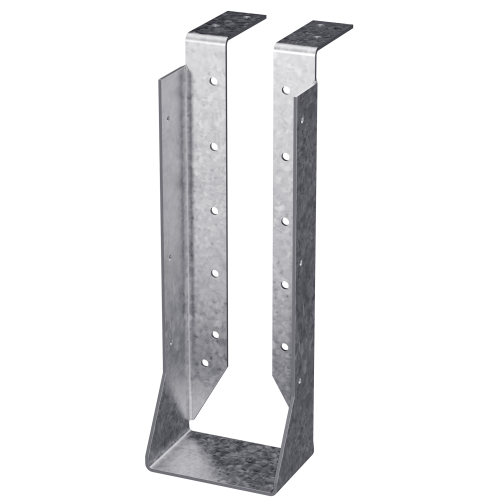

The Simpson HUC614TF HUCTF Top-Flange Concealed-Flange Joist Hanger is a heavy-duty hybrid connector engineered for nominal 6x14 lumber, merging the strengths of both face-mount and top-mount hanger designs into a single solution. Two concealed flanges deliver a clean profile suited for end-of-wall or corner installations where a traditional face-mount hanger is not practical, while integrated face-nailing keeps the hanger securely anchored to the supporting member. Built from 12-gauge steel with a G90 zinc galvanized finish, this joist hanger is designed to hold up in demanding framing applications with tested, load-rated, and code-compliant performance.

Key Features

• Hybrid face-mount and top-mount design - combines the installation flexibility of a face-mount hanger with the bearing advantages of a top-flange hanger, giving framers a versatile single connector for complex connection points
• Two concealed flanges - tuck out of sight at end-of-wall and corner positions, producing a cleaner structural appearance without sacrificing load-carrying capability
• Face-nailing attachment method - allows the hanger to be securely fastened directly to the supporting member for a reliable, stable connection
• 12-gauge steel construction - provides the heavy-duty strength required for large nominal 6x14 joist and beam members in demanding framing applications
• G90 zinc galvanized coating - offers a corrosion-resistant finish that helps extend the service life of the connector in exposed or moisture-prone framing environments
• Slopes up to 45 deg. - accommodates angled framing layouts without requiring a separate hanger model, simplifying material selection on sloped-roof or sloped-floor assemblies
• Tested, load-rated, and code-compliant - the HUCTF series meets recognized performance standards, supporting smooth inspections and confident specification by builders and engineers
• Rough beam sizes available by special order - provides sizing flexibility beyond the standard nominal 6x14 dimension when project conditions require it

Why This Product

• One hanger, two hanger technologies - the hybrid face-mount and top-mount construction means this single connector handles connection scenarios that would otherwise require choosing between two different hanger types, reducing complexity on the job site
• Purpose-built for end-of-wall and corner framing - the concealed-flange profile is specifically engineered for the tight, geometry-constrained locations where standard open-flange hangers cannot be used, making it a direct solution rather than a workaround
• Code-compliant out of the box - as a tested and load-rated HUCTF-series connector, it supports straightforward plan approval and inspection sign-off without additional engineering justification for standard applications
• Corrosion-resistant finish for long-term reliability - the G90 zinc galvanized coating helps the connector maintain its structural integrity over time in framing environments where moisture exposure is a concern

Specifications

• Manufacturer Part Number (MPN): HUC614TF
• Series: HUCTF
• Nominal Member (Joist) Size: 6x14
• Steel Gauge: 12-gauge
• Width - W: 5-1/2 in.
• Height - H: 13 in.
• Seat Width - B: 2-1/2 in.
• Top Flange - TF: 2-1/2 in.
• Coating / Finish: Zinc Galvanized, G90
• Maximum Slope: 45 deg.
• Skew Options: None
• Country of Origin: United States

Approved Applications

• End-of-wall joist connections requiring a concealed-flange profile
• Corner installation scenarios where a traditional face-mount hanger is not suitable
• Heavy-duty framing connections for nominal 6x14 lumber members
• Sloped installations up to a maximum of 45 deg.
• Applications requiring tested, load-rated, and code-compliant joist hangers

Installation Fasteners

The HUC614TF installs with the following nails (not included unless otherwise noted):

• Header: (18) 0.162 in. x 3-1/2 in. nails
• Joist: (8) 0.162 in. x 3-1/2 in. nails
