Product Description

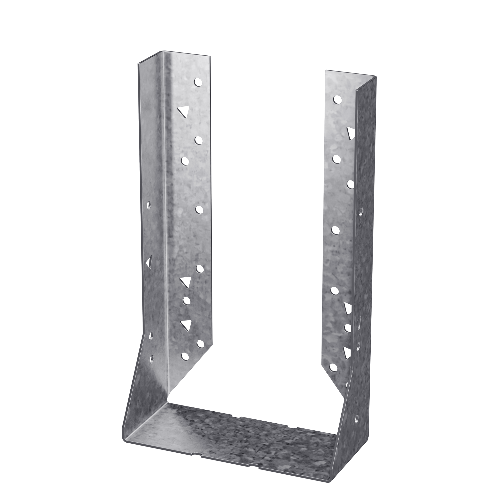

The Simpson HUC612 Concealed-Flange Heavy Face-Mount Hanger is engineered by Simpson for structures requiring additional strength and safety factors. Its concealed header flanges deliver cleaner visible lines in exposed framing conditions, making this heavy-duty joist hanger a strong fit for projects where structural performance and finished appearance must work together. The HUC612 connects nominal 6x12 wood joists to wood, masonry, and concrete, and is tested, load rated, and code compliant to support demanding construction requirements.
Key Features
- Concealed header flanges - tuck out of sight behind the header, producing clean, uncluttered lines in exposed structural framing without sacrificing connection strength
- Tested, load rated, and code compliant - the HUC series meets recognized engineering standards, giving builders and inspectors confidence on every project
- Compatible with wood, masonry, and concrete headers - broad substrate compatibility reduces the need for alternative connectors across mixed-material structures
- Extra optional triangle holes - allow additional fasteners to be added when the application calls for higher load capacity, providing built-in flexibility
- 14-gauge steel construction - heavy-gauge steel delivers the structural rigidity expected in applications where standard hangers are not sufficient
- Zinc Galvanized G90 finish - provides extra corrosion resistance to extend service life in demanding or moisture-exposed environments
- 5-1/2 in. seat width sized for nominal 6x12 members - precise fit ensures the joist is properly cradled and load is transferred correctly at the connection point
Why This Product
- Built for heavy-duty framing where standard hangers fall short - designed specifically for structures requiring additional strength and safety factors, the HUC612 addresses load demands that lighter-duty face-mount hangers are not rated to handle
- Aesthetics meet structural integrity - the concealed-flange design is a practical advantage in exposed beam and joist applications, eliminating the visual interruption of visible header flanges without compromising connection performance
- Verified performance backed by testing and code compliance - HUC-series hangers are tested and load rated, which simplifies the approval process on permitted projects and supports inspector confidence on the job site
- G90 galvanized coating for lasting durability - the zinc galvanized G90 finish provides extra corrosion resistance, helping this connector hold up in environments where moisture or humidity could compromise uncoated hardware over time
Specifications
- MPN: HUC612
- Member Size: 6x12
- Height: 9-3/8 in.
- Width: 5-1/2 in.
- Seat Depth: 2-1/2 in.
- Gauge: 14
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: Install with 0.162 in. x 3-1/2 in. nails (sold separately)
- Country of Origin: United States
Approved Applications
- Installing wood joists to wood headers and beams
- Installing wood joists to masonry
- Installing wood joists to concrete
- Exposed structural framing where concealed flanges provide cleaner visible lines
- Structures requiring additional strength and safety factors
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size joist is the HUC612 designed to support?
- The HUC612 is designed for a nominal joist size of 6x12, with a seat width of 5-1/2 in. to properly cradle the supported member.
- What type of fasteners should be used to install the HUC612?
- Install with 0.162 in. x 3-1/2 in. nails as specified for this hanger.
- What is the purpose of the concealed flanges on the HUC612?
- The concealed header flanges on the HUC612 are designed to provide cleaner visible lines in exposed conditions, making this hanger suitable for applications where the structural framing remains visible.
- Does the HUC612 offer any corrosion resistance?
- Yes. The HUC612 is coated with a Zinc Galvanized, G90 finish, which provides extra corrosion resistance and extends the service life of the hanger in demanding environments.
Note: Product dimensions and/or nail holes may differ from picture. Please see the item description and Spec Sheet for specifications.
