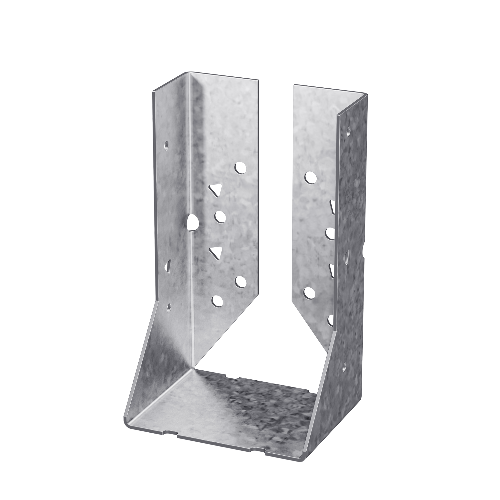

The Simpson HUC26-2 Concealed-Flange Heavy Face-Mount Hanger is a heavy-duty structural connector from Simpson engineered for framing applications that demand additional strength and safety factors. Built to accept double 2x6 lumber, this face-mount joist hanger features concealed header flanges that keep mounting hardware hidden from view, delivering cleaner visible lines in exposed framing conditions. Whether you are connecting wood joists to wood framing, masonry, or concrete, this hanger is designed to perform where structural integrity and finished appearance both matter.

Key Features

• Concealed header flanges - keep the mounting hardware out of sight in exposed conditions, so the finished framing looks clean and professional without sacrificing connection strength
• Extra optional triangle holes - allow additional fasteners to be added where higher load capacity is needed, giving installers flexibility to meet demanding structural requirements
• Tested, load rated, and code compliant (HUC-series) - provides verified performance data and code-ready documentation, simplifying inspections and giving you confidence in the connection
• Compatible with wood, masonry, and concrete headers - broadens the range of framing situations this single hanger can handle, reducing the need to source multiple connector types
• 14-gauge steel construction - delivers the heavy-duty thickness needed for applications requiring additional strength and safety factors beyond standard joist hanger applications
• Zinc Galvanized, G90 coating - provides extra corrosion resistance, making this hanger appropriate for environments where moisture exposure is a concern

Why This Product

• Built for demanding structural conditions - the HUC26-2 is specifically designed for structures requiring additional strength and safety factors, making it the right choice when a standard hanger is not sufficient for the load or application
• Aesthetics and performance in one connector - the concealed header flange design handles the structural work while keeping the hardware hidden, a combination that matters in exposed or finished framing where appearance is part of the result
• Versatile substrate compatibility - approved for installation into wood, masonry, and concrete structures, this hanger adapts to a wide range of jobsite conditions without requiring a different product for each substrate type
• Code-compliant and independently tested - HUC-series hangers are tested and load rated, so builders and inspectors have reliable performance data to work from rather than relying on estimates

Specifications

• Model Number: HUC26-2
• Member Size: Double 2x6
• Height: 4-15/16 in.
• Width: 3-1/8 in.
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: (8-12) 0.162 in. x 3-1/2 in. nails in the header and (4-6) 0.148 in. x 3 in. nails in the joist (sold separately)
• Country of Origin: United States

Approved Applications

• Installing double 2x6 wood joists to wood framing
• Installing double 2x6 wood joists to masonry structures
• Installing double 2x6 wood joists to concrete structures
• Exposed framing conditions where concealed flanges provide cleaner visible lines
• Structures requiring additional strength and safety factors

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What lumber size is the HUC26-2 designed to support?

The HUC26-2 is designed for a nominal joist size of Double 2x6, with a seat width of 3-1/8 in. to properly cradle the doubled member.

What fasteners are required to install the HUC26-2?

Installation requires (8-12) 0.162 in. x 3-1/2 in. nails in the header and (4-6) 0.148 in. x 3 in. nails in the joist.

Is the HUC26-2 suitable for use in corrosive or outdoor environments?

Yes. The HUC26-2 features a Zinc Galvanized, G90 coating that provides extra corrosion resistance, making it appropriate for use in environments where moisture exposure is a concern.

What is the purpose of the concealed header flanges on this hanger?

The concealed header flanges keep the mounting hardware hidden behind the header, providing cleaner visible lines when the framing is exposed in finished or architectural conditions.

Note: Product dimensions and/or nail holes may differ from picture. Please see the item description and spec sheet for specifications.
