The Simpson HU46 HU Galvanized Face-Mount Joist Hanger for 4x6 is a heavy-duty structural connector from Simpson engineered for framing applications that demand additional strength and safety. Designed to accept a nominal 4x6 joist member, this face-mount hanger is the go-to choice of engineers and contractors who require a tested, load rated, and code compliant solution for both residential and commercial construction. Built from 14-gauge steel with a G90 zinc galvanized finish, it delivers the reliable performance and corrosion resistance that demanding structural connections require.

Key Features

• Heavy-duty 14-gauge steel construction - provides the structural rigidity needed for load-bearing joist connections where standard-gauge hangers fall short
• G90 zinc galvanized coating - offers corrosion resistance that helps the hanger hold up in moisture-prone environments, extending the service life of the connection
• Extra optional triangle holes - give installers the ability to add fasteners for increased load capacity when project requirements call for it
• Tested, load rated, and code compliant - takes the guesswork out of compliance, so contractors and inspectors can move forward with confidence on permitted projects
• Face-mount design for nominal 4x6 lumber - installs directly against the header face, simplifying layout and alignment during framing without the need for specialized tools
• 3-9/16 in. seat width - sized precisely for a nominal 4x6 joist, ensuring a snug, properly supported fit that maintains structural integrity

Why This Product

• Engineer- and contractor-trusted performance - Simpson Strong-Tie connectors are a proven standard on job sites where structural reliability and code compliance are non-negotiable, making the HU46 a dependable choice for professional framing work
• Built-in flexibility for higher load demands - the extra optional triangle holes allow the connection to be upgraded with additional fasteners, giving builders a single hanger that can adapt to varying load requirements without switching hardware
• Corrosion-resistant finish for long-term durability - the G90 galvanized coating makes the HU46 suitable for use in applications where moisture exposure is a concern, helping protect the structural connection over time
• Straightforward installation with clear fastener guidance - defined nail specifications for both the header and the joist mean installers spend less time guessing and more time building, keeping projects on schedule

Specifications

• Model Number: HU46
• Member Size: 4x6
• Height: 4-3/4 in.
• Width: 3-9/16 in.
• Seat Depth: 2-1/2 in.
• Steel Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Installation Fasteners: Install with (8 - 12) 0.162-in. x 3-1/2-in. nails in the header and (4 - 6) 0.148-in. x 3-in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size lumber is the HU46 designed to support?

The HU46 is designed for a nominal 4x6 joist member, with a seat width of 3-9/16 inches to properly accommodate that lumber size.

What fasteners are required to install the HU46?

Install with (8 - 12) 0.162-in. x 3-1/2-in. nails in the header and (4 - 6) 0.148-in. x 3-in. nails in the joist for a proper, code-compliant connection.

Is the HU46 suitable for outdoor or exposed applications?

Yes. The HU46 is finished with a G90 zinc galvanized coating, which provides corrosion resistance, making it appropriate for applications where moisture exposure is a concern.

Are the HU-series hangers code compliant and load rated?

Yes. HU-series hangers, including the HU46, are tested, load rated, and code compliant, and the hanger also features extra optional triangle holes that can be used to achieve additional load capacity when needed.

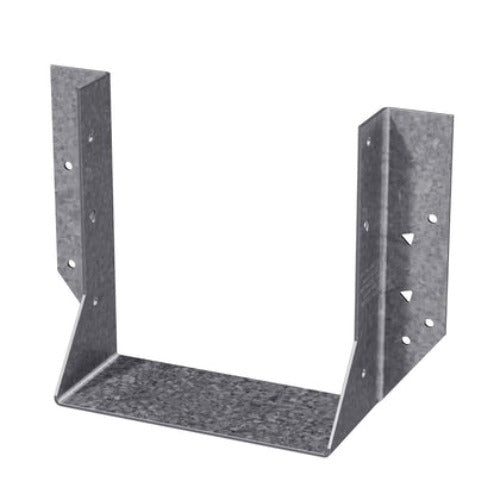

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
