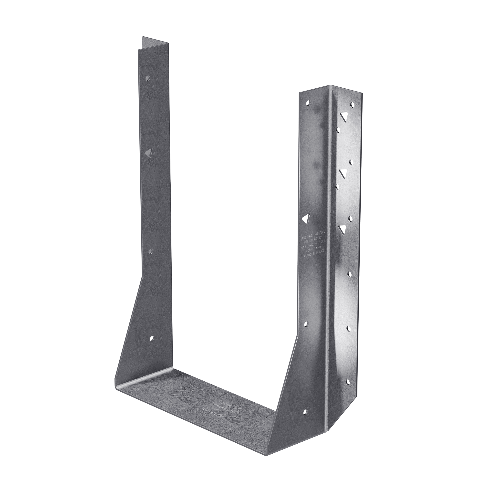

The Simpson HU412-2 Heavy-Duty Face-Mount Joist Hanger for Double 4x12 is a professional-grade structural connector engineered by Simpson Strong-Tie for applications where additional strength and safety factors are required. Built from 14-gauge steel with a G90 zinc galvanized finish, this heavy-duty hanger delivers dependable, code-compliant performance when connecting double 4x12 joists or beams to a header in residential and commercial framing projects. Trusted by engineers and contractors alike, Simpson Strong-Tie connectors are engineered and tested to perform and manufactured to the highest quality standards - making this hanger a reliable solution for demanding structural connections.

Key Features

• "U" design allows for flexibility of placement on the header - makes positioning and installation easier on the job site, reducing layout time and accommodating varying header conditions.
• Nominal joist size: Double 4x12 - purpose-built to fit a double 4x12 member precisely, ensuring a secure, correctly sized connection without field modification.
• Made from 14-gauge steel - heavy-duty construction provides the strength and load capacity needed for structures with elevated performance and safety requirements.
• Galvanized (G90) for extra corrosion resistance - the zinc G90 coating protects the hanger against moisture and environmental exposure, supporting long-lasting durability in a variety of conditions.

Why This Product

• Engineered for heavy-duty structural demands - the HU series face-mount joist hanger is specifically designed for structures requiring additional strength and safety factors, making it the appropriate choice when standard hangers are not sufficient for the application.
• Flexible "U" design simplifies installation - the open "U" profile allows installers to adjust placement along the header without being locked into a fixed position, saving time and reducing frustration during framing.
• Built-in corrosion protection for lasting performance - the G90 zinc galvanized coating provides a meaningful barrier against rust and deterioration, helping maintain structural integrity over the life of the building.
• The trusted choice of engineers and contractors - Simpson Strong-Tie connectors are held to rigorous engineering and quality standards, giving builders confidence that each connection meets the demands of professional construction.

Specifications

• Model Number: HU412-2
• Member Size: Double 4x12
• Gauge: 14
• Width (W): 7-1/8 in.
• Height (H): 10-13/16 in.
• Coating/Finish: Zinc Galvanized, G90
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
• Seat Depth: 2-1/2 in.
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist size is the HU412-2 designed for?

The HU412-2 is designed for a nominal double 4x12 joist or beam member.

What type of fasteners should be used to install the HU412-2?

The HU412-2 should be installed with 0.162 in. x 3-1/2 in. nails for proper performance.

What gauge steel is the HU412-2 made from?

The HU412-2 is manufactured from 14-gauge steel, providing heavy-duty strength suitable for structures requiring additional strength and safety factors.

What corrosion protection does the HU412-2 have?

The HU412-2 features a G90 zinc galvanized coating, which provides extra corrosion resistance for long-lasting durability in a variety of environments.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
