Product Description

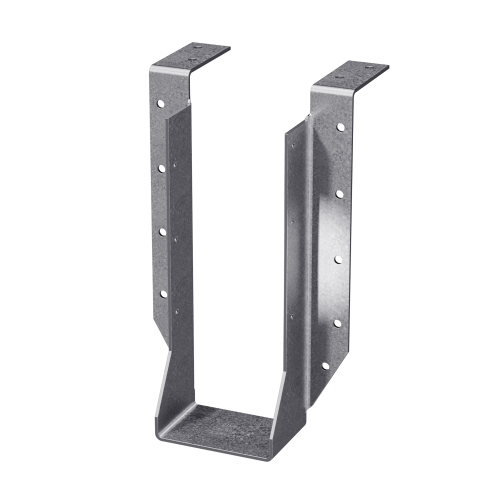

The Simpson HU3.25/16.5TF Top-Flange Face Mount Hanger is a hybrid structural connector from Simpson that brings together the benefits of both face-mount and top-mount hanger designs in a single unit. Sized to fit a 3-1/8 x 16-1/2 in. joist, it features a top-flange configuration that seats flush at the top of the carrying member while also allowing face-nailing directly to that member - delivering a rigid, dependable connection suited to demanding residential and commercial framing applications.
Key Features
- Hybrid Face-Mount and Top-Mount Design - combines the load path advantages of both hanger styles in one connector, eliminating the need to choose between installation methods on complex framing assemblies
- Top-Flange Configuration - the top flange sits flush at the top of the carrying member, enabling flush or concealed header connections where a protruding hanger would interfere with finish work or structural clearances
- Face-Nailing Capability - allows the hanger body to be secured directly to the face of the carrying member, adding rigidity and connection dependability beyond what a top-mount-only connector provides
- One Concealed "A" Flange - one flange can be hidden from view, supporting installations with aesthetic requirements or structural configurations that call for a cleaner finished appearance
- Zinc Galvanized G90 Coating - provides a corrosion-resistant finish suitable for structural framing environments where long-term durability of metal connectors is a priority
- 12-Gauge Steel Construction - heavy-gauge material supports demanding joist and beam connections in both residential and commercial construction without sacrificing installation ease
- Domestic Production - built to strict quality standards, giving buyers confidence in consistent dimensional accuracy and material integrity across structural framing projects
Why This Product
- One connector, two installation methods - the hybrid top-flange and face-mount design means this hanger adapts to job-site conditions where a standard joist hanger or a top-mount-only connector would fall short, reducing the need to source multiple connector types
- Flush framing where it counts - the top-flange configuration is purpose-built for applications requiring the supported member to sit flush with the carrying member, a critical requirement in finish-sensitive or tight-clearance structural assemblies
- Corrosion resistance built in - the G90 zinc galvanized finish means the connector is ready for the environmental demands of structural framing without requiring additional treatment or substitution for a coated alternative
- Exact fit for 3-1/8 x 16-1/2 in. framing members - the precise sizing eliminates field modification and ensures proper load transfer from the supported joist to the carrying member, keeping the connection performing as designed
Specifications
- Manufacturer Part Number (MPN): HU3.25/16.5TF
- Brand: Simpson Strong-Tie
- Joist Size: 3-1/8 x 16-1/2 in.
- Gauge (Ga.): 12
- W (Width): 3-1/4 in.
- H (Height): 16-1/2 in.
- B: 2-1/2 in.
- TF (Top Flange): 2-1/2 in.
- Coating / Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Structural framing connections requiring a hybrid face-mount and top-mount hanger solution
- Heavy-duty joist and beam connections in residential and commercial construction
- Applications where top-flange installation is required for flush or concealed header connections
- Framing assemblies where face-nailing to the carrying member is preferred or required
- Installations requiring one "A" flange to be concealed for aesthetic or structural purposes
Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
Options
- Contact us for additional options or special order inquiries
Frequently Asked Questions
What makes the HU3.25/16.5TF different from a standard face-mount joist hanger?
The HU3.25/16.5TF is a hybrid connector that combines the benefits of both face-mount and top-mount hanger designs in a single unit. It features a top-flange configuration that sits flush at the top of the carrying member while also allowing face-nailing directly to the carrying member, providing a more rigid and dependable connection than a standard face-mount hanger alone.
What joist size is this hanger designed to support?
This hanger is sized for a 3-1/8 x 16-1/2 joist, making it suitable for structural framing applications that use lumber or engineered wood members of those dimensions.
What gauge steel is used, and does the hanger have any corrosion protection?
The HU3.25/16.5TF is constructed from 12-gauge steel for heavy-duty strength and rigidity. It features a G90 zinc galvanized coating, which provides corrosion resistance for long-term durability in structural framing environments.
Is there any flexibility in how the flanges are configured during installation?
Yes. The hanger is available with one "A" flange concealed, which offers greater installation flexibility and a cleaner aesthetic where an exposed flange may be undesirable or impractical for a given framing application.
