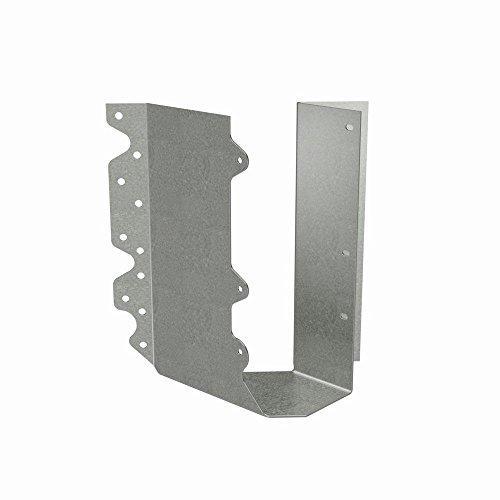

The Simpson HSUR210-2 Galvanized Joist Hanger for Double 2x10, Skewed Right is a purpose-built framing connector from Simpson engineered to deliver a precise 45 deg. skewed-right connection between a double 2x10 joist and a header. Constructed from 14-gauge steel with a G90 zinc galvanized coating, this heavy-duty hanger is designed for angled wood framing applications where a standard straight hanger simply will not work, providing a reliable, code-conscious connection in both residential and light commercial construction.

Key Features

• Skewed-right geometry (HSUR) at 45 deg. - provides a factory-set angled connection between joist and header, eliminating the need for field fabrication or custom modifications when framing at an angle.
• Accommodates joists skewed 40 to 50 deg. - gives installers a 10-degree range of flexibility, so minor framing variations do not require a different hanger or a return trip to the supplier.
• Angled nail slots built into the hanger - direct nails automatically for proper, secure installation, reducing the chance of misdriven fasteners and helping ensure full load-rated performance.
• Square cut or bevel cut joist end accepted - removes the requirement for a precise angled cut on the joist, saving time and reducing waste on the job site.
• Sized for double 2x10 members - matched exactly to double 2x10 framing lumber, so the hanger seats correctly without shimming or adjustment.
• 14-gauge steel construction - delivers the rigidity and load-bearing strength needed for structural joist support applications in demanding framing conditions.
• G90 zinc galvanized finish - provides an added layer of corrosion resistance, making this hanger suitable for use in environments where moisture exposure is a concern.

Why This Product

• A connector built for the angles standard hangers cannot handle - the fixed 45 deg. skew-right design addresses a specific and common framing challenge, giving contractors a reliable, off-the-shelf solution for angled joist-to-header connections without custom fabrication.
• Installation flexibility built in from the start - between the 40 to 50 deg. accommodation range, the acceptance of both square and bevel cut joist ends, and the guided angled nail slots, this hanger is designed to work with real-world framing conditions rather than demanding perfection on every cut and measurement.
• Durable enough for long-term structural performance - the combination of 14-gauge steel and a G90 galvanized coating means this hanger resists the physical stresses of load-bearing applications and the corrosive effects of moisture over time, supporting the longevity of the overall framing assembly.
• Backed by Simpson engineering for consistent, dependable results - Simpson is a trusted name in structural connectors, and the HSUR series reflects that heritage with a hanger designed to specific tolerances, complete with integrated features that guide proper installation from the first nail to the last.

Specifications

• MPN: HSUR210-2
• Member Size: Double 2x10
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-1/4 in.
• Gauge: 14
• Width (W): 3-1/8 in.
• Height (H): 8-11/16 in.
• Base (B): 2-7/16 in.
• Coating/Finish: Zinc Galvanized, G90
• Skew Direction: Right
• Install With: 16d common nails and 16d x 2-1/2 in. nails

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. See HSURC or HSULC for concealed flange versions.

For configurable options and special orders, Contact us.

Frequently Asked Questions

What angle does the HSUR210-2 provide for joist connections?

The HSUR210-2 is designed to provide a 45 deg. connection between a joist and header, and can accommodate joists skewed anywhere from 40 to 50 degrees.

What is the difference between the HSUR and HSUL hangers?

The HSUR and HSUL hangers are identical in construction except for their skew direction. HSUR is skewed to the right, while HSUL is skewed to the left.

Does the joist need to be cut at a specific angle to fit this hanger?

No. The joist end may be either square cut or bevel cut, giving you flexibility during installation without requiring a precise angled cut on the joist end.

What fasteners are recommended for installing the HSUR210-2?

This hanger should be installed with 16d common nails and 16d x 2-1/2 in. nails. The angled nail slots built into the hanger help direct nails for proper, secure installation.
