Product Description

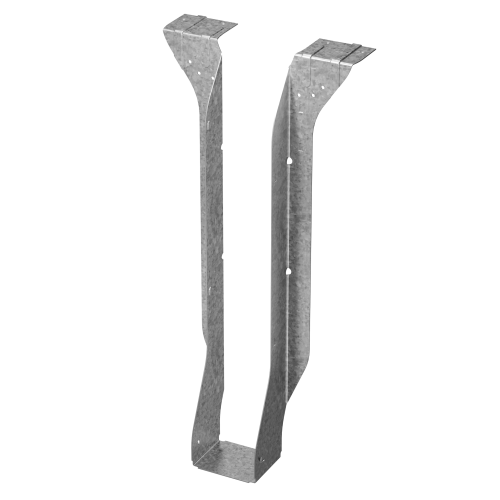

The Simpson 2-1/2 x 24 Heavy I-Joist Top-Flange Hanger from Simpson is purpose-built for standard 90 deg. connections of I-joists to headers, delivering a heavy-duty top-flange solution for residential and commercial framing projects where structural reliability and I-joist integrity are priorities.
Key Features
- Standard 90 deg. I-joist-to-header connection - fits the most common framing orientation, simplifying layout and reducing installation time on the job site
- Positive-angle nailing (PAN) geometry - engineered specifically for I-joists to minimize splitting during fastening, helping preserve the load-carrying integrity of each joist
- Extra triangle holes - allow for higher uplift loads, giving builders added resistance to upward forces in structurally demanding applications
- Heavy top-flange design - provides robust bearing support across the full depth of the I-joist, reducing the risk of rotation or seat failure under load
- 16-gauge steel construction - delivers the added strength and rigidity needed for heavy framing connections without adding unnecessary bulk
- Zinc Galvanized G90 finish - provides corrosion resistance to help the hanger maintain performance across a range of building environments
Why This Product
- Built for I-joist framing from the ground up - unlike generic joist hangers, this hanger incorporates PAN geometry and a top-flange profile specifically matched to the characteristics of I-joists, reducing the risk of splitting and misalignment during installation
- Handles demanding uplift requirements - the extra triangle holes are included to accommodate higher uplift loads, making this hanger a practical choice for structures subject to elevated wind or other uplift forces
- Heavy-duty capacity in a code-recognized product - the 16-gauge steel construction and heavy top-flange configuration combine to support robust framing connections where lighter-duty hangers would fall short
- American-made quality from a trusted framing hardware brand - produced by Simpson in the United States, this hanger reflects consistent manufacturing standards that framers and contractors rely on across a wide range of structural applications
Specifications
- Model No.: HIT324
- Joist Size: 2-1/2 x 24 in.
- Gauge: 16
- W: 2-9/16 in.
- H: 24 in.
- B: 3 in.
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of connection is the HIT324 designed for?
The HIT324 is designed for standard 90-degree connections of I-joists to headers, making it a straightforward solution for typical framing applications.
What is positive-angle nailing (PAN) and why does it matter for I-joists?
Positive-angle nailing (PAN) is a nailing geometry specifically engineered for use with I-joists. It is designed to minimize splitting of the I-joist during fastening, helping to maintain the structural integrity of the joist throughout installation.
What is the purpose of the extra triangle holes on the HIT324?
The extra triangle holes on the HIT324 are included to allow for higher uplift loads, providing greater resistance to upward forces and making this hanger suitable for more demanding structural applications.
What finish does the HIT324 have, and what does it provide?
The HIT324 features a Zinc Galvanized G90 finish, which provides corrosion resistance to help the hanger perform reliably in a variety of building environments.
