Product Description

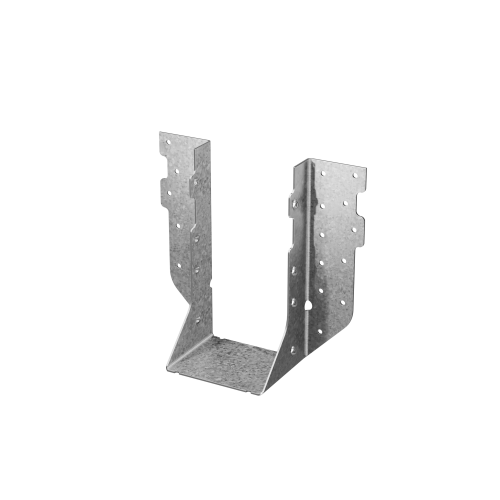

The Simpson HHUS48Z HHUS ZMAX Galvanized Face-Mount Joist Hanger for 4x8 is a heavy-duty face-mount connector engineered by Simpson for structural applications where higher load values are required. Built from 14-gauge steel and finished with ZMAX galvanization, this hanger delivers a strong, reliable connection underneath a joist, rafter, or beam - making it a dependable choice for demanding framing projects in exterior environments and applications involving treated lumber.
Key Features
- Double-shear nailing design - distributes the load through two points on each joist nail rather than one, resulting in a stronger, more secure connection at every fastening point
- Fewer nails required with standard 16d common nails - simplifies installation by eliminating the need for specialty fasteners, saving time on the job without compromising structural performance
- 14-gauge steel construction - provides the heavy-duty rigidity needed for high-load framing connections where a lighter hanger would not meet performance requirements
- ZMAX galvanization - offers extra corrosion resistance beyond standard galvanized coatings, making this hanger well suited for exterior framing and pressure-treated wood applications
- Nominal 4x8 member size - sized precisely for 4x8 joists, rafters, or beams, ensuring a proper fit without field modification
- Tabs must not be bent or removed - preserving the factory tab configuration maintains the hanger's rated load capacity and structural integrity throughout the life of the connection
Why This Product
- Built for high-load framing demands - the HHUS line is specifically designed for applications where higher load values are needed, making this hanger appropriate for structural connections that standard hangers may not adequately support
- Faster installation without sacrificing strength - the double-shear nailing system allows for fewer nails and the use of standard nails for all connections, reducing material handling and speeding up the installation process on the job site
- Corrosion resistance where it matters most - ZMAX galvanization provides extra protection against moisture and chemical exposure, making this face-mount hanger a reliable long-term choice for outdoor structures and treated-wood framing
- Made to Simpson's engineering standards - produced in the United States and designed as part of Simpson's broad line of structural connectors, this hanger reflects the consistent quality and load-tested performance that contractors and builders rely on for critical connections
Specifications
- MPN: HHUS48Z
- Brand: Simpson Strong-Tie
- Member Size: 4x8
- Gauge: 14
- Width (W): 3 5/8 in.
- Height (H): 7 1/8 in.
- B: 3 in.
- Coating: ZMAX
- Finish: ZMAX
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What is double-shear nailing and why does it matter?
Double-shear nailing distributes the load through two points on each joist nail rather than one, resulting in greater strength and a more secure connection. This design also allows for the use of fewer nails and faster installation without sacrificing performance.
What type of nails should be used to install the HHUS48Z?
The HHUS48Z should be installed with 16d common nails. The double-shear nailing design allows for the use of standard nails for all connections, simplifying the installation process.
Is the HHUS48Z suitable for exterior or treated-wood applications?
Yes. The ZMAX galvanization provides extra corrosion resistance, making the HHUS48Z well suited for exterior environments and applications involving treated wood where standard galvanization may not offer sufficient protection.
Can the tabs on the HHUS48Z be bent or removed during installation?
No. The tabs on the HHUS48Z must not be bent or removed. Altering the tabs can compromise the structural integrity of the hanger and affect its load performance.
