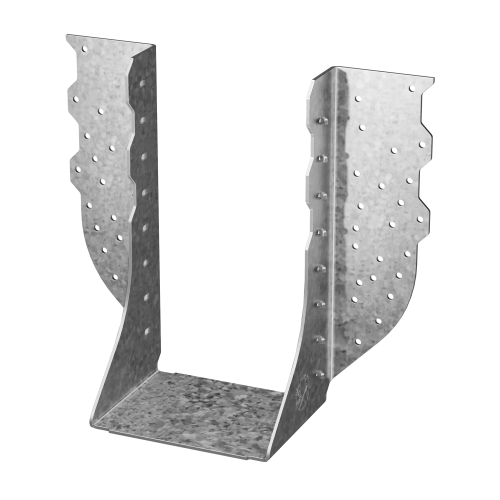

The Simpson HGUS7.25/8 Face-Mount Hanger is an extra-heavy-capacity girder hanger from Simpson engineered for structural framing applications that demand reliable, high-load girder support. Built with double-shear nailing technology and robust 12-gauge steel construction, this face-mount hanger delivers the strength and dependability required for demanding load-bearing installations, while its value-engineered design keeps performance accessible across a range of project budgets.

Key Features

• Extra-heavy-capacity design - handles high-load girder support requirements, making it suitable for structurally demanding framing applications where performance cannot be compromised.
• Double-shear nailing technology - distributes load through two points on each joist nail rather than one, resulting in greater strength and more reliable load transfer at every connection point.
• 12-gauge steel construction - provides the structural integrity and rigidity needed to perform consistently under heavy loads over the long term.
• Zinc Galvanized, G90 coating - offers enhanced corrosion resistance to help extend the service life of the hanger across a variety of installation environments.
• Value-engineered construction - delivers extra-heavy-capacity load performance at an economical price point, giving builders and contractors strong structural value without overspending.
• Face-mount configuration - allows straightforward installation against the face of the supporting member, simplifying alignment and fastening during structural framing work.

Why This Product

• Engineered for heavy structural demands - the extra-heavy-capacity rating means this girder hanger is purpose-built for applications where standard hangers fall short, giving contractors confidence in high-load framing scenarios.
• Superior load transfer through double-shear nailing - by engaging two shear planes per joist nail, this hanger achieves stronger, more reliable connections than single-shear alternatives, directly reducing risk in critical structural joints.
• Long-term durability with corrosion-resistant coating - the Zinc Galvanized, G90 finish helps protect the hanger from environmental degradation, supporting a longer service life and reducing the need for premature replacement.
• Backed by Simpson quality, made in the United States - produced by Simpson, a trusted name in structural connectors, this face-mount hanger combines proven engineering with domestic manufacturing standards for consistent, dependable performance.

Specifications

• Model No.: HGUS7.25/8
• Gauge: 12
• W (in.): 7-1/4
• H (in.): 7-1/4
• B (in.): 4
• Coating/Material: Zinc Galvanized, G90
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the primary application for the HGUS7.25/8?

The HGUS7.25/8 is designed for extra-heavy-capacity applications that require reliable girder support, making it suitable for structural framing projects that demand high load performance.

What is double-shear nailing and why does it matter?

Double-shear nailing is a fastening method that distributes the load through two points on each joist nail rather than one. This results in greater overall strength and more reliable load transfer compared to single-shear connections.

What type of coating does the HGUS7.25/8 have?

The HGUS7.25/8 features a Zinc Galvanized, G90 coating, which provides enhanced corrosion resistance to help extend the service life of the hanger in various installation environments.

What gauge steel is used in the HGUS7.25/8?

The HGUS7.25/8 is constructed from 12-gauge steel, contributing to its extra-heavy-capacity load-bearing capabilities and overall structural integrity.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
