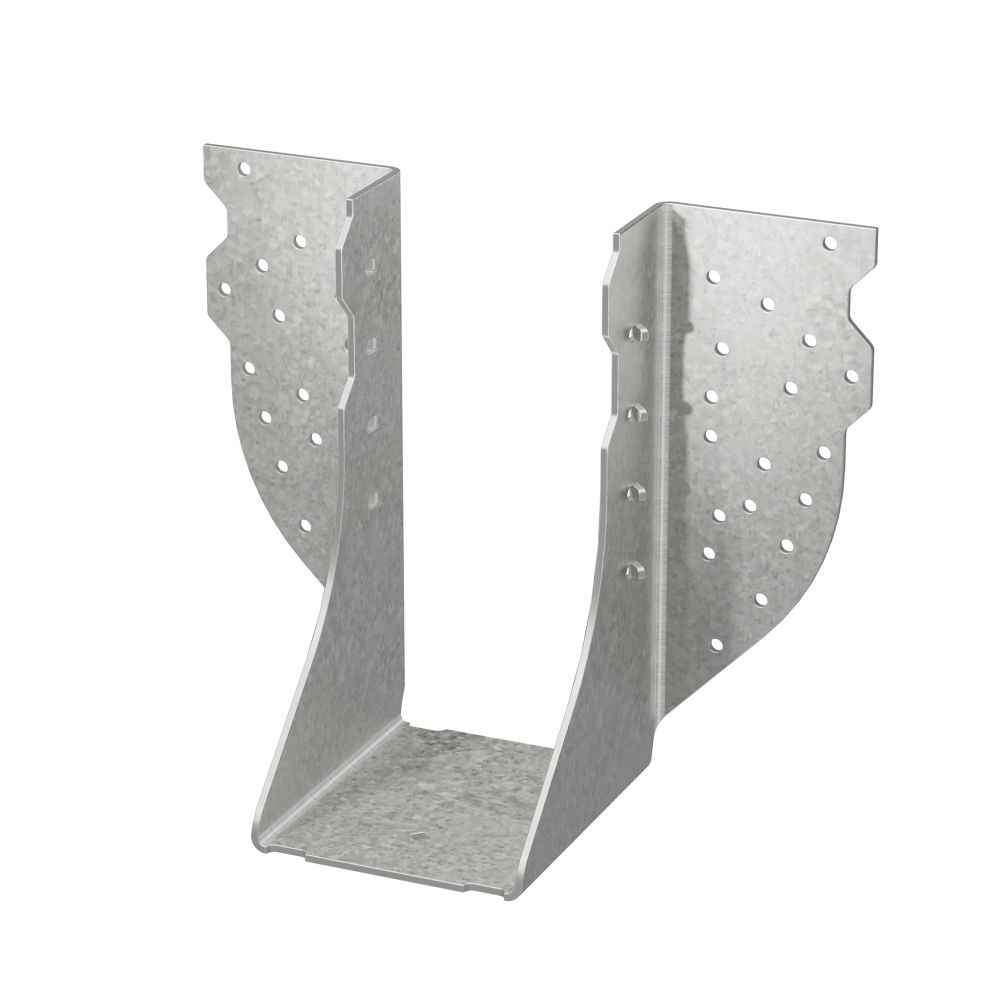

The Simpson HGUS28-2 Galvanized Face-Mount Joist Hanger from Simpson Strong-Tie is engineered for applications where higher load values are needed, delivering a strong, reliable connection for double 2x8 joist, rafter, and beam applications. Built from 12-gauge steel with a G90 zinc galvanized finish, this heavy-duty face-mount hanger uses double-shear nailing technology to distribute load more effectively, making it a dependable choice for demanding framing and structural support work.

Key Features

• Double-shear nailing design - distributes the load through two points on each joist nail, giving the connection greater strength than standard single-shear alternatives
• Fewer nails required with standard 16d common nails - speeds up installation without requiring specialty fasteners, saving time and simplifying your nail inventory on the job site
• Supports double 2x8 members - sized specifically for double 2x construction where girder-level or higher-capacity support is required
• 12-gauge steel construction - provides the structural rigidity needed for heavy-load framing applications where lighter-gauge hangers are not sufficient
• G90 zinc galvanized finish - offers extra corrosion resistance to help extend the service life of the hanger in demanding or moisture-prone environments
• Tabs must not be bent or removed - preserving the factory configuration maintains the hanger's rated performance and structural integrity

Why This Product

• Built for higher load demands - the HGUS series is specifically designed for applications where higher load values are needed, making this hanger a practical upgrade over standard joist hangers when extra capacity matters
• Faster installs without sacrificing strength - the double-shear nailing system allows for fewer nails while achieving greater holding power, helping crews work more efficiently on double 2x8 framing projects
• Corrosion-resistant for long-term reliability - the G90 zinc galvanized coating provides extra protection against corrosion, supporting a longer service life even in challenging environmental conditions
• Made by Simpson Strong-Tie, a trusted name in structural connectors - the HGUS28-2 is part of a diverse line of hangers backed by Simpson's engineering expertise, giving builders confidence in the connection's performance

Specifications

• MPN: HGUS28-2
• Member Size: Double 2x8
• Gauge: 12

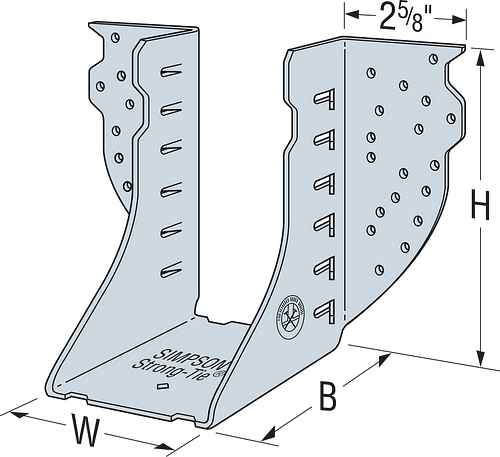

• Height (H): 7-3/16 in.
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size member is the HGUS28-2 designed to support?

The HGUS28-2 is designed for a nominal joist size of Double 2x8, making it suitable for applications requiring girder-level support with double-member construction.

What type of nails should be used to install the HGUS28-2?

The HGUS28-2 should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer nails while still achieving greater strength.

What is the benefit of double-shear nailing on this hanger?

Double-shear nailing distributes the load through two points on each joist nail, providing greater strength compared to single-shear designs. This also allows for faster installation using standard nails for all connections.

How is the HGUS28-2 protected against corrosion?

The HGUS28-2 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance and helps extend the service life of the hanger in demanding environments.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
