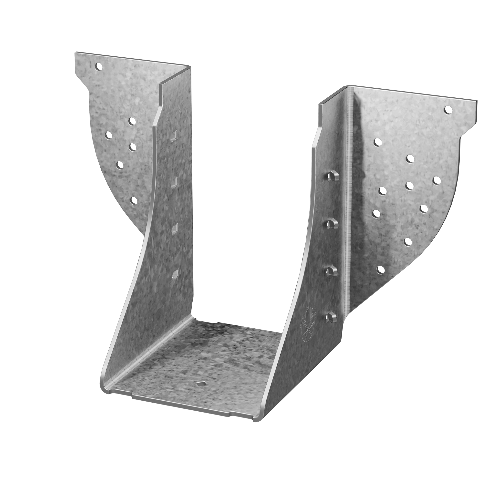

The Simpson HGUS26-2 is a heavy-capacity, face-mount joist hanger from Simpson engineered for applications where higher load values are needed. Designed to cradle and support double 2x6 framing members from below, it creates a strong, reliable connection between the joist and the carrying member - making it a go-to choice for demanding structural framing, rafter ties, and beam support applications. Built from 12-gauge steel with a G90 galvanized finish, this hanger is ready for the rigors of both interior and exterior construction.

Key Features

• Double-shear nailing technology - distributes the load through two points on each joist nail, delivering greater strength per nail and improving the overall integrity of the structural connection.
• Fewer nails required, standard nails accepted - the double-shear design means faster installation without specialty fasteners; 16d common nails are all you need to complete the connection.
• 12-gauge steel construction - provides the heavy-duty rigidity and load capacity needed for applications where standard-gauge hangers fall short.
• Zinc Galvanized (G90) coating - adds a durable layer of corrosion resistance, helping the hanger hold up in environments where moisture exposure is a concern.
• Sized for double 2x6 framing members - purpose-built fit eliminates guesswork and ensures proper load transfer for this specific member configuration.
• Tabs must not be bent or removed - preserving the factory tab configuration is essential to maintaining the rated load performance of the connection.

Why This Product

• Built for high-load structural demands - Simpson designed the HGUS series specifically for applications where higher load values are required, making this hanger a reliable upgrade over lighter-duty face-mount options.
• Smarter nailing, faster framing - the double-shear nailing system lets contractors achieve greater connection strength with fewer nails and standard fasteners, reducing both material cost and installation time on the job.
• Corrosion resistance you can count on - the G90 galvanized finish provides meaningful protection against rust and deterioration, supporting long-term performance in exposed or high-humidity framing environments.
• A trusted name in structural connectors - Simpson Strong-Tie offers a broad line of joist hangers engineered for consistent performance, and the HGUS26-2 reflects that same commitment to dependable, code-conscious construction hardware.

Specifications

• MPN: HGUS26-2
• Member Size: Double 2x6
• Gauge: 12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size framing member is the HGUS26-2 designed for?

The HGUS26-2 is designed for a nominal joist size of Double 2x6 framing members.

What type of nails should be used to install the HGUS26-2?

The HGUS26-2 should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer nails while still achieving greater strength, making installation faster and more efficient.

What is the steel gauge and corrosion protection on this hanger?

The HGUS26-2 is made from 12-gauge steel and features a Zinc Galvanized (G90) coating for extra corrosion resistance, making it suitable for applications where durability is important.

Are there any installation precautions to be aware of?

Yes. Do not bend or remove tabs on the HGUS26-2, as doing so can compromise the integrity and load performance of the hanger connection.

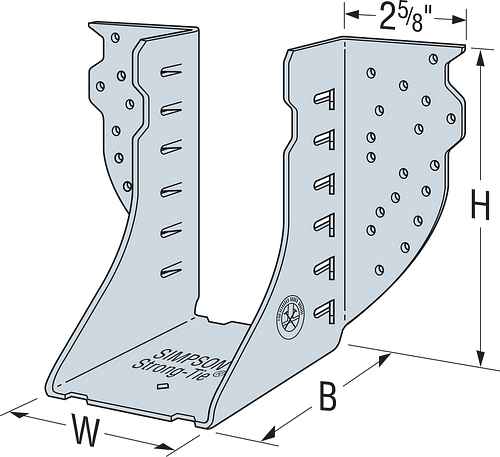

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
