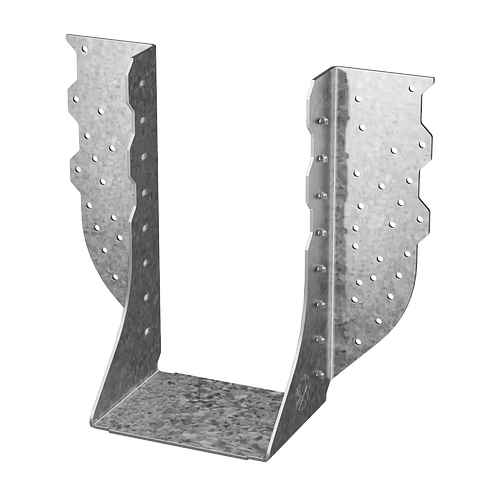

Product Description
The Simpson HGUS2.75/12 Face-Mount Hanger is an extra-heavy-capacity girder hanger engineered by Simpson for demanding structural applications that require reliable, high-load girder support. Designed to handle the rigorous requirements of heavy framing connections, this face-mount hanger combines robust steel construction with a double-shear nailing system, making it a dependable choice for contractors and builders who need proven performance in load-critical assemblies.
Key Features
- Extra-heavy-capacity design - engineered specifically for girder support applications, giving builders the confidence to tackle high-load structural connections without compromise
- Double-shear nailing system - distributes the load through two points on each joist nail, delivering significantly greater strength than standard single-shear hangers and improving overall structural integrity
- 12-gauge steel construction - provides the robust, long-lasting performance needed to stand up to the stresses of heavy framing environments over the life of the structure
- Zinc Galvanized G90 coating - offers corrosion resistance that helps extend the service life of the hanger across a variety of installation conditions
- Value-engineered for high-load applications - carries demanding loads at an economical price point, reducing material costs without sacrificing the structural capacity the job demands
Why This Product
- Built for heavy structural demands - the extra-heavy-capacity rating and double-shear nailing technology make this face-mount hanger a strong fit for girder connections where standard hangers simply are not enough
- Trusted Simpson engineering - manufactured by Simpson, a name widely recognized among building professionals for producing structural connectors that meet the rigorous demands of real-world construction
- Corrosion-resistant for lasting reliability - the G90 Zinc Galvanized coating helps protect the hanger from deterioration, supporting long-term performance in varied installation environments
- Domestic manufacturing quality - produced in the United States, reflecting consistent material standards and quality control that professionals depend on for critical structural connections

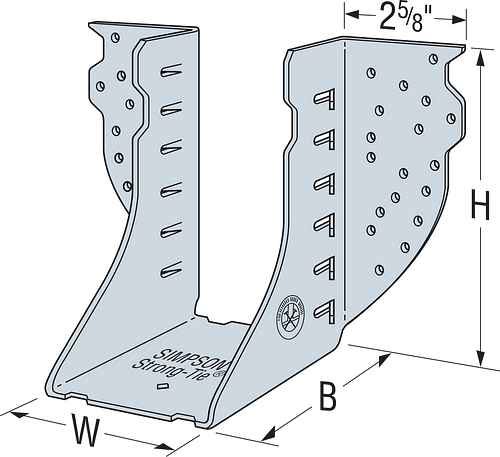

Specifications
- Model Number: HGUS2.75/12
- Gauge (Ga.): 12
- W (in.): 2-3/4
- H (in.): 10-7/8
- B (in.): 4
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What makes the HGUS2.75/12 suitable for girder support applications?
- The HGUS2.75/12 is an extra-heavy-capacity hanger specifically designed for applications requiring girder support. Its double-shear nailing system distributes the load through two points on each joist nail, providing significantly greater strength compared to standard single-shear hangers.
- What are the key dimensions of the HGUS2.75/12?
- The HGUS2.75/12 has a width (W) of 2-3/4 inches, a height (H) of 10-7/8 inches, and a B dimension of 4 inches. It is constructed from 12-gauge steel.
- What type of coating does the HGUS2.75/12 have?
- The HGUS2.75/12 features a Zinc Galvanized G90 coating, which provides corrosion resistance and helps extend the service life of the hanger in a variety of installation environments.
- Are configurable or custom options available for the HGUS2.75/12?
- Yes, configurable options are available for the HGUS2.75/12. Please to discuss configurable options tailored to your project requirements.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
