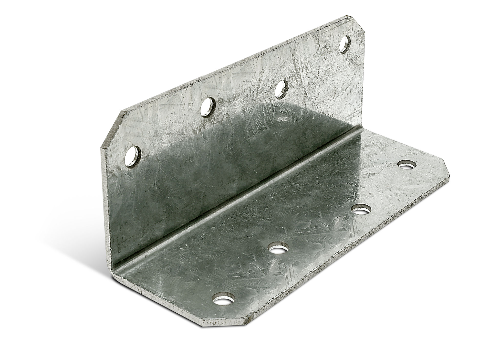

The Simpson ML26Z 2 in. x 6 in. 12-Gauge ZMAX Galvanized Medium L Angle from Simpson is a structural connector built to create reliable, square 90 deg. connections in medium and heavy-duty framing applications. Constructed from 12-gauge steel with a ZMAX galvanized finish, this medium L angle is engineered for exterior construction and treated-lumber connections where corrosion resistance is critical. Fastener holes are staggered to minimize wood splitting, and an opposing hole pattern allows for back-to-back installation without fastener interference - giving builders a versatile, consistent solution for demanding structural joints.

Key Features

• 90 deg. connection for medium and heavy-duty applications - delivers the structural rigidity needed for load-bearing framing joints, performing stronger than angled nailing or screw fastening alone
• 12-gauge steel construction - provides the thickness and strength required for demanding structural connections without adding unnecessary bulk
• ZMAX galvanized coating - offers extra corrosion resistance compared to standard galvanized finishes, making this angle well-suited for exterior applications and connections involving treated wood
• Staggered fastener holes - reduces the risk of wood splitting during installation, helping maintain the integrity of the connected members
• Opposing hole pattern - enables back-to-back installation without fastener interference, expanding the range of configurations this connector can handle on a single job
• Promotes straight, consistent corners - helps take the guesswork out of squaring up joints, resulting in more precise, professional framing results
• Compatible with Strong-Drive SDS Heavy-Duty Connector screws - pairs with a purpose-engineered fastener system to maximize connection strength and performance

Why This Product

• Built for treated wood and exterior conditions - the ZMAX galvanized finish provides extra corrosion resistance that standard galvanized connectors may not offer, making this angle a dependable choice where moisture and treated lumber are factors
• Stronger than traditional fastening methods - using this angle for 90 deg. structural connections outperforms angled nailing or screw fastening, giving you added confidence in the long-term performance of each joint
• Designed to simplify complex installations - the opposing hole pattern supports back-to-back configurations without fastener conflicts, while staggered holes protect wood integrity, reducing callbacks and rework on the job site
• American-made quality from a trusted connector brand - produced by Simpson, a name widely recognized in structural connector engineering, this angle combines proven design with domestic manufacturing standards

Specifications

• Model Number: ML26Z
• Width: 2 in.
• Height: 6 in.
• Gauge: 12
• Coating: ZMAX
• Finish: ZMAX
• Country of Origin: United States

Approved Applications

• Medium and heavy-duty 90 deg. structural framing connections
• Exterior construction applications requiring corrosion resistance
• Connections involving treated lumber or wood exposed to moisture
• Back-to-back installation configurations using the opposing hole pattern
• Projects requiring consistently straight and square corners

Install With

• Install with (8) 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws per angle (Model: SDS25112, sold separately)

Frequently Asked Questions

What type of fasteners should be used with the Simpson ML26Z?

The ML26Z is designed to be installed with (8) 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws per angle (Model: SDS25112). These fasteners are sold separately and are not included with the angle.

Why is the ZMAX galvanized coating important?

ZMAX galvanization offers extra corrosion resistance, making the ML26Z suitable for exterior applications and connections involving treated wood, where standard galvanized connectors may be more susceptible to corrosion over time.

Can two ML26Z angles be installed back-to-back?

Yes. The ML26Z features an opposing hole pattern specifically designed to allow for back-to-back installation without fastener interference, making it a versatile choice for double-sided connection applications.

How does the ML26Z compare to traditional angled nailing or screw fastening?

The ML26Z is stronger than angled nailing or screw fastening alone. By providing a dedicated 90 deg. connection plate made from 12-gauge steel, it ensures that joints are consistently straight, square, and structurally sound - delivering superior performance over conventional fastening methods.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see the item description for specifications.
