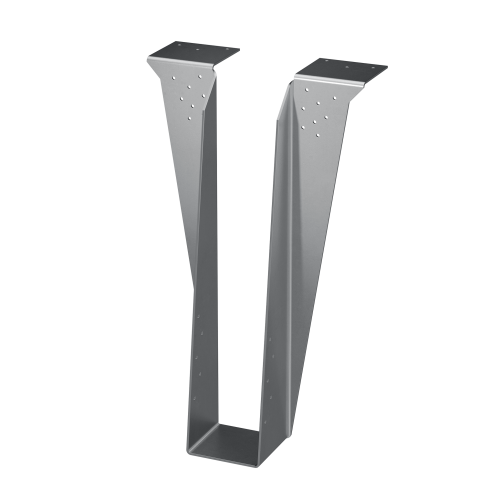

The Simpson HB7.12/9.5 Top Flange Heavy Beam Hanger is a one-piece, top-flange structural connector engineered for 7x9-1/2 lumber in medium to high load framing applications. Designed by Simpson for use with both solid sawn lumber and engineered wood products, this heavy beam hanger delivers reliable load transfer and joist rotation resistance in residential and commercial construction alike - making it a dependable choice for beam-to-beam, beam-to-header, and engineered wood framing assemblies.

Key Features

• Top-Flange Mounting Design - Connects at the top chord of the supported member, enabling clean and efficient load transfer without blocking or face-mounting complications on heavy beam framing connections.
• Full-Height Joist Flange - Captures the top chord of the joist to actively prevent rotation during and after installation, improving structural integrity on demanding framing projects.
• 10-Gauge Steel Construction - Provides heavy-duty, structural-grade strength suited for medium to high load applications in both residential and commercial construction environments.
• Galvanized Finish - Offers corrosion resistance for long-term performance in a variety of framing conditions where surface protection is important.
• One-Piece Construction - Eliminates the complexity and cost of welded hanger alternatives while maintaining the load performance required for heavy beam framing.
• Compatible with Solid Sawn and Engineered Wood Products - Supports a wide range of structural framing assemblies, including engineered wood product installations where joist rotation resistance is a structural requirement.

Why This Product

• Built for Heavy Beam Applications - Specifically sized for 7x9-1/2 lumber and rated for medium to high loads, this hanger is a purpose-matched solution for demanding structural framing work rather than a generic connector pressed into service.
• Rotation Resistance Built In - The full-height joist flange actively captures the top chord of the supported member, addressing joist rotation at the connection point - a critical requirement in engineered wood product framing assemblies.
• Versatile Across Common Framing Systems - Approved for solid sawn lumber and engineered wood products across both residential and commercial construction, reducing the need to source multiple connector types for different framing contexts.
• Simplified Installation Through One-Piece Design - The single-component, top-flange format streamlines the connection process on-site, cutting out additional fabrication steps associated with welded heavy beam hangers.

Specifications

• Model Number: HB7.12/9.5
• Description: 7x9-1/2 Top Flange Hanger for Heavy Beam
• Material: 10-Gauge Steel
• Finish: Galvanized
• Manufacturer Part Number (MPN): HB7.12/9.5
• Country of Origin: United States

Approved Applications

• Heavy beam framing connections in residential and commercial construction
• Solid sawn lumber beam-to-beam and beam-to-header connections
• Engineered wood product (EWP) framing assemblies
• Medium to high load structural framing applications requiring top-flange hanger support
• Applications where joist rotation resistance is a structural requirement

Note: Product dimensions may differ from picture. Please see item description for specifications.

Options

• Contact us for Special orders

Frequently Asked Questions

What types of lumber is the HB7.12/9.5 compatible with?

The HB7.12/9.5 is compatible with both solid sawn lumber and engineered wood products, making it suitable for a wide range of heavy beam framing applications.

How does the top-flange design benefit installation?

The top-flange design mounts to the top chord of the supported member, allowing for clean and efficient load transfer. The full-height joist flange captures the top chord of the joist to actively prevent rotation during and after installation, improving structural integrity on demanding framing projects.

What material and finish is used on the HB7.12/9.5?

The HB7.12/9.5 is constructed from 10-gauge steel with a galvanized finish, providing heavy-duty structural-grade performance along with corrosion resistance for long-term durability.

Is the HB7.12/9.5 a welded hanger?

No, the HB7.12/9.5 is a one-piece hanger, which eliminates the need for welded components. This one-piece construction offers a more economical and consistent solution while still delivering medium to high load capacity comparable to welded hangers.
