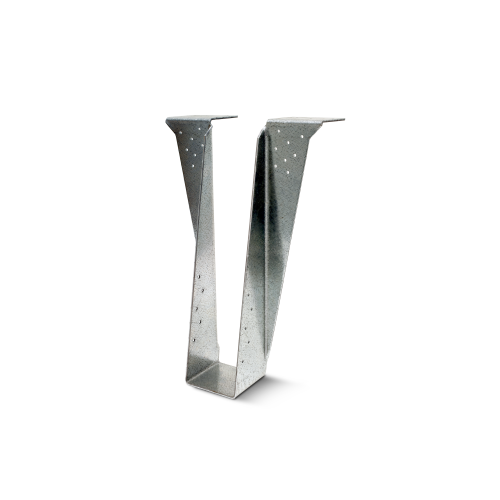

The Simpson HB7.12/11.88 Top Flange Hanger for Heavy Beam 7x11-7/8 is a heavy-duty structural connector from Simpson, engineered to carry medium to high loads for solid sawn and engineered wood applications. Its top-flange design features a full-height joist flange that captures the top chord of the joist to prevent rotation, while the one-piece construction delivers a cost-effective alternative to welded hangers without sacrificing structural performance.

Key Features

• One-piece, top-flange design - eliminates the need for welded connectors, reducing material costs while maintaining reliable load transfer for medium to high load applications
• Full-height joist flange - captures the top chord of the joist to prevent rotation, keeping structural members properly aligned throughout the life of the assembly
• 10-gauge steel construction - provides the strength and rigidity needed to handle demanding heavy beam connections in both solid sawn and engineered wood framing
• Zinc Galvanized, G90 finish - delivers extra corrosion resistance, helping the hanger hold up in moisture-prone or treated-lumber environments
• Compatible with sloped and skewed members - available for special order configurations, giving builders flexibility when framing angled or non-standard assemblies
• Requires web stiffeners - ensures proper load distribution when used with engineered wood members, maintaining the integrity of the connection as intended by design

Why This Product

• Cost-effective alternative to welded hangers - the efficient one-piece design handles high-load heavy beam applications without the added expense of fabricated or welded connectors, making it a practical choice for demanding structural projects
• Built for engineered and solid sawn wood - specifically sized for 7 in. x 11-7/8 in. members, this hanger is purpose-matched to the actual joist dimensions contractors and engineers are working with, reducing fitment guesswork on the job site
• Rotation-resistant connection - the full-height joist flange locks the top chord in place, adding stability to the overall framing system and helping prevent long-term structural movement
• Durable G90 galvanized finish - the corrosion-resistant coating supports use in environments where moisture exposure is a concern, extending the service life of the connection without requiring additional treatment

Specifications

• MPN: HB7.12/11.88
• Member Size: 7 in. x 11 7/8 in.
• Gauge: 10
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist
• Country of Origin: United States

Options

• Contact us for Special orders

Frequently Asked Questions

What size member does the HB7.12/11.88 accommodate?

This hanger is designed for an actual joist size of 7 in. x 11-7/8 in., making it suitable for solid sawn and engineered wood members of that dimension.

What type of fasteners are required for installation?

Installation requires (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist.

Are web stiffeners required when using this hanger?

Yes, the HB7.12/11.88 requires the use of web stiffeners as part of the proper installation for engineered wood applications.

What is the steel gauge and corrosion protection for this hanger?

The HB7.12/11.88 is made from 10-gauge steel and features a Zinc Galvanized, G90 finish, which provides extra corrosion resistance for demanding structural environments.

Note: Product dimensions may differ from picture. Please see item description for specifications.
