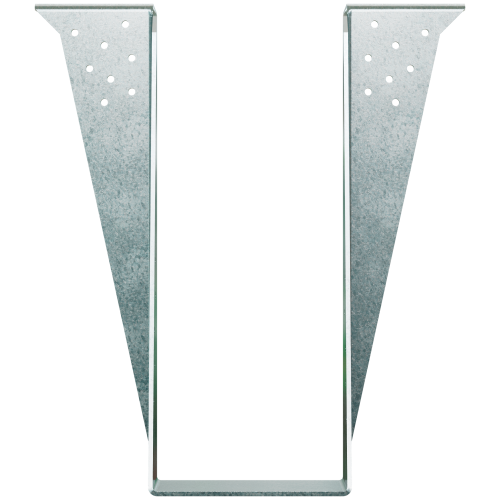

The Simpson HB5.50/14 Top Flange Hanger for Heavy Beam is a top-flange joist hanger engineered by Simpson to carry medium to high loads in solid sawn and engineered wood framing applications. Sized for a 5-1/4 in. x 14 in. member, this heavy beam hanger features a full-height joist flange that captures the top chord of the joist to prevent rotation, while its one-piece construction delivers a cost-effective alternative to welded hangers without sacrificing structural performance.

Key Features

• One-piece top-flange design - eliminates the complexity and cost of welded hangers, making installation more straightforward on high-load framing projects
• Full-height joist flange - captures the top chord of the joist to prevent rotation, helping maintain alignment and structural integrity over the life of the assembly
• 10-gauge steel construction - provides the thickness and strength needed to handle medium to high loads in demanding solid sawn and engineered wood applications
• Zinc Galvanized (G90) coating - delivers extra corrosion resistance, making this hanger a reliable choice for environments where moisture exposure is a concern
• Available for special order in sloped and/or skewed configurations - gives contractors flexibility to address non-standard framing conditions without switching to a different hanger system
• Requires web stiffeners - ensures the engineered wood member is properly reinforced at the bearing point, preserving the load path and meeting installation requirements

Why This Product

• Cost-effective strength for heavy framing - the efficient one-piece design supports medium to high loads without the added expense of welded alternatives, making it a practical choice for large-beam structural connections
• Built to resist rotation - the full-height joist flange actively captures the top chord of the beam, reducing the risk of twist or movement that could compromise long-term framing stability
• Durable finish for lasting performance - the G90 galvanized coating provides a level of corrosion protection well-suited for construction environments where exposure to moisture is a recurring challenge
• Engineered for versatility - compatible with both solid sawn lumber and engineered wood products, this hanger adapts to a wide range of heavy-beam framing scenarios on residential and commercial projects

Specifications

• Model Number: HB5.50/14
• Member Size: 5-1/4 in. x 14 in.
• Gauge: 10
• Coating/Finish: Zinc Galvanized, G90
• Install With: (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist
• Country of Origin: United States

Options

• Contact us for Special orders

Frequently Asked Questions

What size beam is the Simpson HB5.50/14 designed to support?

The HB5.50/14 is designed for an actual joist size of 5-1/4 in. x 14 in., making it suitable for both solid sawn and engineered wood members of that dimension.

What type of fasteners are required to install this hanger?

Installation requires (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist.

Does the HB5.50/14 require any additional hardware or components?

Yes, the HB5.50/14 requires the use of web stiffeners as part of a proper installation.

What corrosion protection does this hanger have?

The HB5.50/14 features a Zinc Galvanized (G90) coating, which provides extra corrosion resistance for demanding construction environments.

Note: Product dimensions may differ from picture. Please see item description for specifications.
