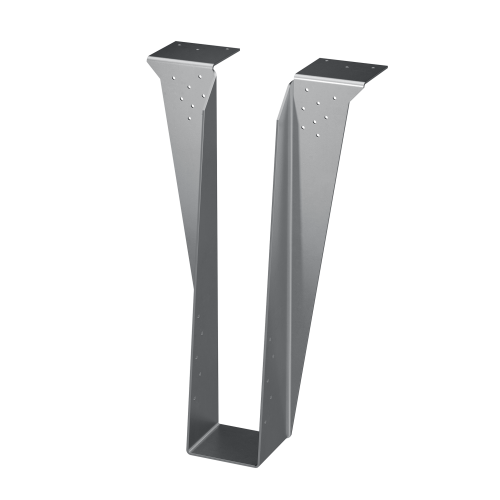

The Simpson HB3.56/22 Top Flange Hanger for Heavy Beam 3-1/2 x 22 is a heavy-duty structural connector built to support demanding beam connections in residential and commercial wood-frame construction. Engineered by Simpson for use with both solid sawn lumber and engineered wood products, this top-flange heavy beam hanger delivers reliable vertical load transfer at beam-to-support intersections while actively resisting rotation for long-term connection integrity.

Key Features

• Top-Flange Mounting Design - Mounts to the top flange of the supporting member, enabling clean and efficient load transfer without cutting into or notching the supporting structure.
• Full-Height Joist Flange - Captures the top chord of the joist to actively resist rotation and maintain alignment under load, reducing the risk of connection failure in high-stress framing applications.
• 10-Gauge Steel Construction - Provides the structural thickness required for heavy beam connections, giving builders confidence in applications where medium to high vertical loads are present.
• Galvanized Finish - Offers corrosion resistance to help protect the connection over the service life of the structure, particularly in environments where moisture exposure is a consideration.
• Broad Application Compatibility - Suitable for solid sawn lumber and engineered wood product framing systems, making this hanger a practical choice across a wide range of heavy beam structural connections.
• One-Piece Construction - Eliminates the complexity of welded assemblies, streamlining installation and reducing labor time on the job site.

Why This Product

• Engineered for Heavy Beam Performance - Specifically designed as a heavy beam hanger, this connector is well-suited for beam-to-header and beam-to-beam connections where structural load demands go beyond what standard joist hangers are rated to handle.
• Rotation Resistance Built In - The full-height joist flange captures the top chord of the supported member, addressing one of the most common failure points in beam connections and supporting framing system stability over time.
• Versatile Across Wood Framing Systems - Compatibility with both solid sawn lumber and engineered wood products means this single hanger model can serve multiple connection types within the same project, simplifying procurement and inventory.
• Domestic Quality from Simpson - Produced in the United States by Simpson, a trusted name in structural connectors, this hanger reflects the manufacturing consistency that contractors and engineers rely on for code-sensitive framing work.

Specifications

• Manufacturer Part Number (MPN): HB3.56/22
• Description: 3-1/2 x 22 Top Flange Hanger for Heavy Beam
• Material: 10-Gauge Steel
• Finish: Galvanized
• Hanger Type: Top-Flange Heavy Beam Hanger
• Compatible Applications: Solid Sawn and Engineered Wood
• Country of Origin: United States

Approved Applications

• Heavy beam connections in residential and commercial wood-frame construction
• Solid sawn lumber beam-to-header and beam-to-beam connections
• Engineered wood product (EWP) framing connections requiring top-flange hanger support
• Applications requiring medium to high vertical load transfer at beam-to-support intersections
• Framing systems where prevention of joist or beam rotation is a structural priority

Note: Product dimensions may differ from picture. Please see item description for specifications.

Options

• Contact us for Special orders

Frequently Asked Questions

What types of lumber is the HB3.56/22 compatible with?

The HB3.56/22 is suitable for use with both solid sawn lumber and engineered wood products, making it a versatile choice for a wide range of heavy beam structural connections.

How does the top-flange design benefit installation?

The top-flange design mounts to the top flange of the supporting member, allowing for clean and efficient load transfer. The full-height joist flange captures the top chord of the joist to actively resist rotation and maintain alignment under load, ensuring long-term connection integrity.

What gauge steel is used, and what finish options are available?

The HB3.56/22 is constructed from 10-gauge steel. It comes standard with a galvanized finish for corrosion resistance, and a hot-dip galvanized finish is also available as an option for enhanced protection in more demanding environments.

How does the HB3.56/22 differ from a welded hanger?

The HB3.56/22 is formed from a single piece of steel, which eliminates the cost and variability associated with welded hanger assemblies. This one-piece construction provides a cost-effective alternative while still delivering dependable structural performance for medium to high load applications.
