The Simpson 2 X 4 Fence Bracket is a 20-gauge, G90 zinc galvanized connector engineered specifically for rough cut 2x4 lumber with actual dimensions of 2 in. x 4 in. - the true-dimension stock sometimes called "old lumber" or full-size 2x4s. Designed to create clean, strong rail-to-post connections for fence, deck railing, porch railing, and louver applications, this bracket lets you secure rails without toe nailing or screwing through the face of the board, making installation faster and more professional-looking.

Key Features

• Sized for rough cut 2 in. x 4 in. lumber - fits true-dimension stock precisely, so rails seat fully and connections stay tight rather than sloppy or loose
• Eliminates toe nailing and face screwing - speeds up installation and produces a cleaner finished appearance on fence rails and porch railings
• G90 zinc galvanized coating - provides corrosion resistance suited for outdoor fence and railing projects exposed to weather
• 20-gauge steel construction - delivers reliable structural strength for rail-to-post connections in fencing, deck railing, and louver framing
• Accepts nails or Strong-Drive SD Connector screws - gives you the flexibility to fasten with the hardware type you prefer without compromising the connection

Why This Product

• Built for the lumber that standard brackets ignore - if you are working with full-dimension rough cut 2x4 stock, this bracket fits correctly from the start, eliminating the gaps and poor engagement that occur when a nominal-lumber bracket is forced onto true-dimension rails
• Cleaner installs, less labor - by removing the need to toe nail or drive screws at an angle through the rail, the bracket simplifies the connection process and reduces the chance of split lumber or misaligned rails
• Corrosion-resistant for lasting outdoor performance - the G90 zinc galvanized finish makes this bracket a practical choice for exposed fence lines, porch railings, and louver framing that will face moisture and humidity over time
• Versatile across multiple project types - approved for fence rail-to-post connections, deck and porch railing construction, and louver framing, making it a single solution for several common rough cut lumber applications

Specifications

• Model No.: FB24R
• Gauge: 20
• Coating/Material: Zinc Galvanized, G90
• Lumber Compatibility: Rough cut 2x4 (actual 2" x 4")
• Fasteners Required: (5) 0.148 x 1-1/2" Nails OR (5) #9 x 1-1/2" Strong-Drive SD Connector Screws
• Width: 2 in.
• Height: 3-3/8 in.
• Seat Depth: 3/4 in.

Approved Applications

• Fence rail-to-post connections using rough cut 2x4 rails
• Deck and porch railing construction
• Louver framing and installation

Downloads and Resources

• View Specifications

Frequently Asked Questions

What is the difference between the FB24R and the FB24Z fence bracket?

The FB24R is designed for rough cut 2x4 lumber with actual dimensions of 2" x 4". If your fence rail is nominal lumber measuring 1-1/2" x 3-1/2", you will need the FB24Z Fence Bracket instead.

What fasteners are required to install the FB24R?

Installation requires (5) 0.148 x 1-1/2" nails or (5) #9x1-1/2" Strong-Drive SD Connector screws.

Why is it important to use rough cut lumber with this bracket?

The FB24R is sized to fit lumber with true 2" x 4" dimensions. Using nominal lumber (1-1/2" x 3-1/2") with this bracket will result in a poor fit and a compromised connection. Always confirm your lumber's actual measurements before selecting this bracket.

What coating does the FB24R have, and is it suitable for outdoor use?

The FB24R features a G90 zinc galvanized coating, which provides corrosion resistance and makes it suitable for outdoor fence, railing, and louver applications.

Related Products

• - For nominal 2x4 lumber (actual 1-1/2" x 3-1/2")

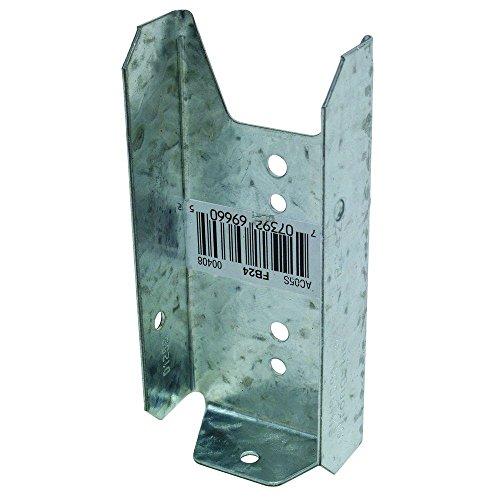

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
