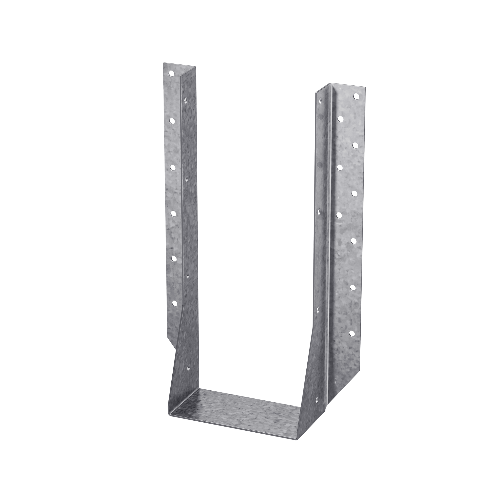

The Simpson Double 3 x 14 Face-Mount Joist Hanger is a heavy-duty connector engineered by Simpson for structures requiring additional strength and safety factors. Built from 14-gauge steel with a G90 zinc galvanized finish, this face-mount hanger is designed to deliver reliable, long-lasting performance in demanding structural framing applications. Trusted by engineers and contractors, Simpson Strong-Tie connectors are engineered and tested to perform while meeting the highest quality standards - making this hanger a dependable choice for heavy double-joist connections.

Key Features

• "U" design allows for flexibility of placement on the header - makes it easier to position the hanger accurately during installation, reducing layout errors and saving time on the job.
• Designed for a nominal joist size of Double 3x14 - purpose-built to support heavy double-joist assemblies, ensuring a secure, correctly sized fit without improvised workarounds.
• Manufactured from 14-gauge steel - provides the heavy-duty structural strength needed for applications with elevated load and safety requirements.
• G90 zinc galvanized coating - delivers extra corrosion resistance for long-term durability, helping the hanger hold up in moisture-prone or outdoor structural environments.

Why This Product

• Heavy-duty performance for demanding framing projects - the HU series is specifically designed for structures requiring additional strength and safety factors, making it well suited for double-joist applications where standard hangers fall short.
• Flexible installation for faster, more accurate framing - the "U" design allows for flexibility of placement on the header, giving contractors and builders more control over positioning without sacrificing structural integrity.
• Built-in corrosion protection for lasting structural reliability - the G90 zinc galvanized finish provides extra corrosion resistance, extending the service life of the connection in challenging environments.
• Engineered and tested by a brand professionals rely on - Simpson Strong-Tie connectors are manufactured to the highest quality standards and are the trusted choice of engineers and contractors for code-compliant structural connections.

Specifications

• MPN: HU314-2
• Member Size: Double 3x14
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Width (W): 5-1/8 in.
• Height: 11-13/16 in.
• Installation Fasteners: 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
• Seat Depth: 2-1/2 in.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist size is the HU314-2 designed to support?

The HU314-2 is designed for a nominal member size of Double 3x14, making it suitable for heavy-duty double-joist structural applications.

What gauge steel is used in the HU314-2?

The HU314-2 is manufactured from 14-gauge steel, providing the heavy-duty strength required for structures with additional strength and safety factor requirements.

What type of corrosion protection does the HU314-2 have?

The HU314-2 features a G90 zinc galvanized coating, which provides extra corrosion resistance for long-term durability in structural environments.

What fasteners should be used to install the HU314-2?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist for proper installation as specified by Simpson Strong-Tie.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
