Product Description

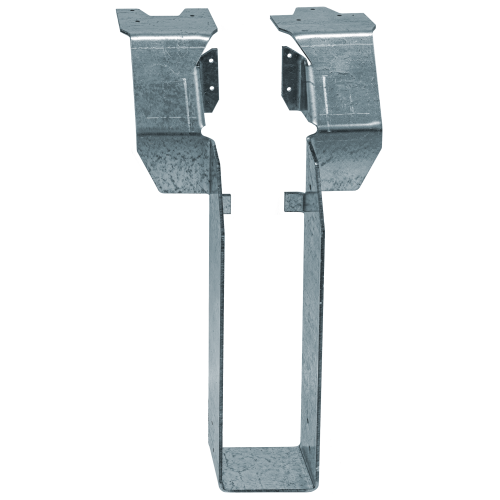

The Simpson DGHT Top-Flange Fire Wall Hanger is a patent-pending, load-tested connector engineered specifically for 5-1/4 in. x 14 in. engineered wood joists in multifamily, multilevel Type III residential construction. Designed by Simpson to meet demanding fire-rated assembly requirements, this top-flange hanger carries a two-hour fire-resistant rating tested to ASTM E814 and is rated for use on both sides of the wall - making it a reliable solution for fire wall framing assemblies where code compliance and on-schedule performance are critical. Its innovative design accommodates two layers of 5/8 in. gypsum board slipped into place after framing is complete, streamlining the sequence of work on any fire-rated residential project.
Key Features
- Power nailer compatible top-flange design - the first fire wall hanger built for power-nailer installation, reducing labor time before drywall and helping keep construction schedules on track
- Loads tested and code listed for 1 1/2 in. and 2 1/2 in. power-driven or hand-installed nails - gives contractors flexibility to use the fastening method that best fits their workflow without sacrificing code compliance
- Two-hour fire-resistant rating applies to 2x4 or thicker walls - provides verified, Intertek-certified fire protection on both sides of the wall assembly, supporting Type III residential fire wall requirements
- Innovative top-flange design for back-to-back installation on 2x6 (min.) walls - enables efficient double-sided framing on a single wall assembly, reducing the need for supplemental blocking or custom hardware
- Space for two layers of 5/8 in. drywall after framing is complete - allows the full framing sequence to finish before drywall installation begins, so trades can work in the correct order without delays
- Made from 10-gauge steel with a Zinc Galvanized G90 finish - delivers structural strength and corrosion resistance suited for the service life demands of multifamily and multilevel residential projects
Why This Product
- Purpose-built for fire wall framing in multifamily construction - unlike general-purpose joist hangers, this hanger is specifically load-tested and certified under Intertek Design No. SST/WPCF 120-01 for two-hour fire-rated wall assemblies, removing guesswork from code-compliance decisions on Type III residential projects
- First fire wall hanger designed for power-nailer use - the top-flange configuration lets crews install this hanger with a power nailer before drywall goes up, cutting hand-nailing time on fire wall connections and helping framing teams maintain their schedule
- Rated for both sides of the wall in a single product - the DGHT is fire rated for use on both sides of the wall as tested to ASTM E814, meaning one hanger model satisfies the fire rating requirement across the full assembly rather than requiring separate products for each face
- Engineered to fit the drywall-after-framing workflow - with a seat width of 5-3/8 in. and built-in clearance for two layers of 5/8 in. gypsum board, the hanger is designed around how fire-rated assemblies are actually built, letting drywall be slipped into place after the structural framing is complete
Specifications
- MPN: DGHT5.37/14
- Brand: Simpson Strong-Tie
- Member Size: 5-1/4 in. x 14 in.
- Seat Width: 5-3/8 in.
- Height: 13-15/16 in.
- Gauge: 10
- Coating/Finish: Zinc Galvanized, G90
- Fire Rating: Two-hour
- Fire Rating Standard: ASTM E814
- Intertek Design No.: SST/WPCF 120-01
- Installation Fasteners: Install with (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top; (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face; and (6) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
- Country of Origin: United States
Approved Applications
- Multifamily residential construction requiring fire-rated wall assemblies
- Multilevel Type III residential construction
- Fire wall assemblies requiring a two-hour fire-resistant rating on both sides of the wall
- Back-to-back hanger installations on 2x6 (minimum) walls
- Framing assemblies incorporating two layers of 5/8 in. gypsum board
Options
- Contact us for Configurable Options and Special orders
Downloads and Resources
- Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
- Specifications
Note: Product dimensions may differ from picture.
Frequently Asked Questions
What is the fire rating of the Simpson DGHT5.37/14, and what wall thickness does it apply to?
The DGHT5.37/14 carries a two-hour fire-resistant rating, which applies to 2x4 or thicker walls. It has been tested according to ASTM E814 and is rated for use on both sides of the wall, with the rating certified under Intertek Design No. SST/WPCF 120-01.
Can this hanger be installed with a power nailer?
Yes. The Simpson Strong-Tie DGHT is the first fire wall hanger designed to install with a power nailer. It is loads tested and code listed for both 1-1/2 in. and 2-1/2 in. power-driven nails, as well as hand-installed nails, providing flexibility on the job site.
How does the top-flange design accommodate drywall installation?
The innovative top-flange design allows the hanger to be installed before drywall is hung. After framing is complete, two layers of 5/8 in. gypsum board (drywall) can be slipped into place, keeping the workflow efficient and the construction schedule on track.
What fasteners are required to install the DGHT5.37/14?
Installation requires: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top; (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face; and (6) 0.148 in. x 1-1/2 in. nails in the joist.
